LEMKEN Ecospray - 12.5.3 Folding-In SE Linkage

Operation
116

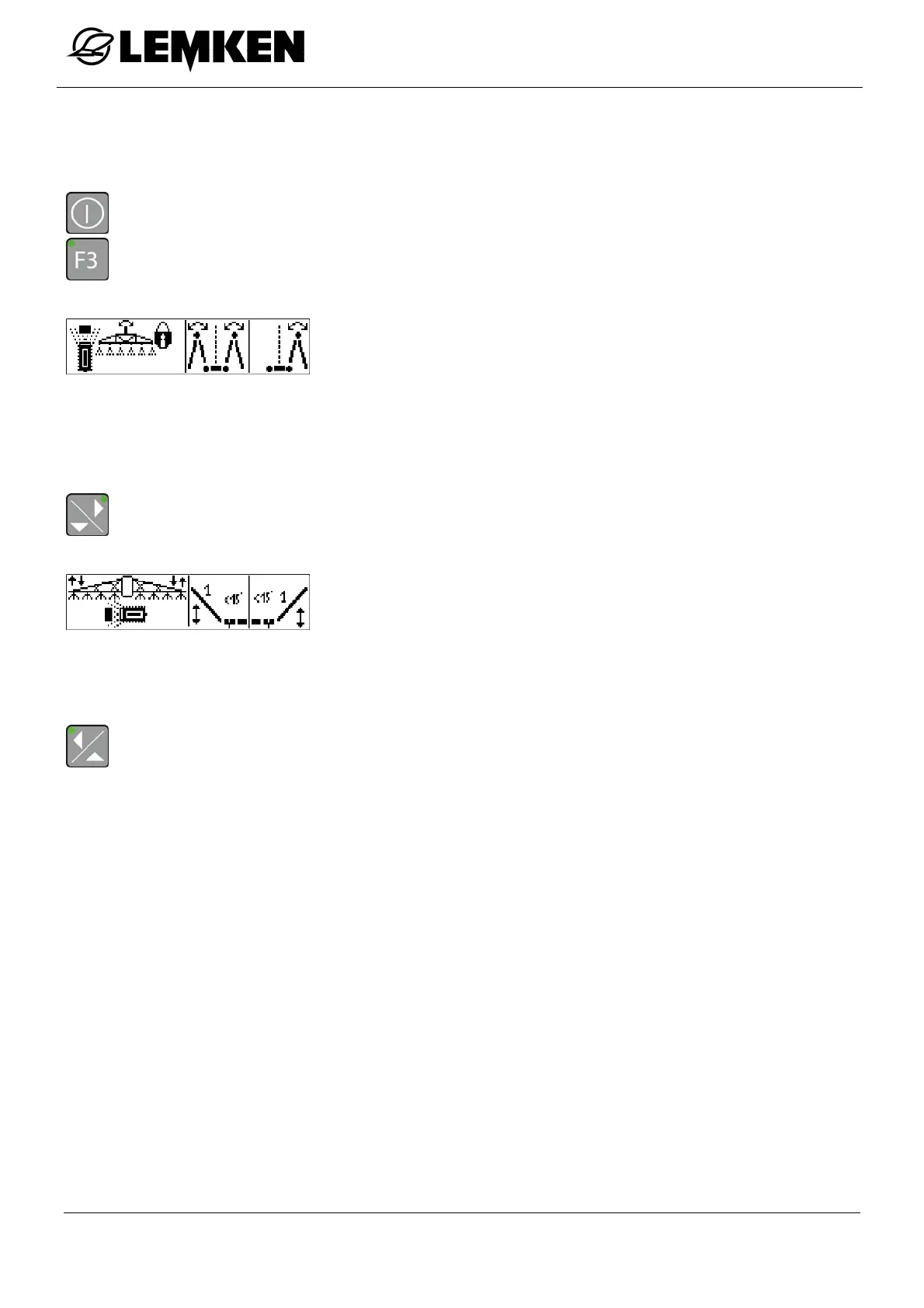

12.5.3 Folding-in SE linkage
To fold-in the linkage
- Press the key to switch on the terminal.
- Press the key to enter the first Folding menu.
The first Folding menu now appears.
In the first Folding menu, the following functions can be controlled:
 Pendulum lock
 Fold in the linkage symmetrically
 Fold in the linkage asymmetrically [convenience extension
only]
- Press the key to enter the second Folding menu.
The second Folding menu now appears.
In the second Folding menu, the following functions can be con-
trolled:
 Slope compensation
 Bending the boom 1 on one or both sides
To enter the first Folding menu again:
- Press the key.
