LEMKEN Ecospray - Folding-In SE Linkage

Extending and retracting SE linkage
36

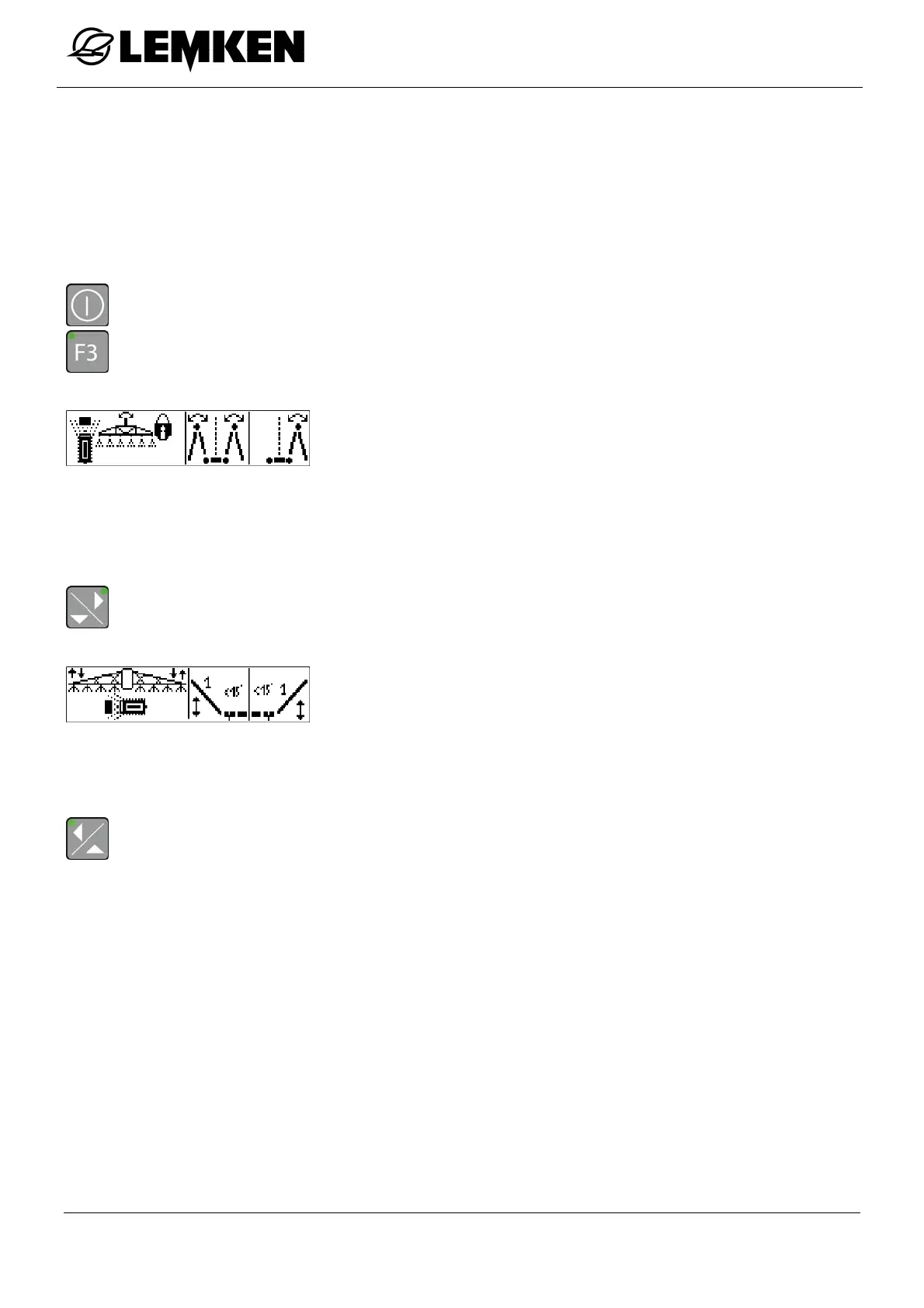

9.4 Folding-in SE linkage
Before the linkage can be folded-in:
- Lift the linkage with the control unit up to the monitoring position.
- Close the pendulum lock.
To fold-in the linkage:
- Press the key to switch on the terminal.
- Press the key to enter the first Folding menu.
The first Folding menu now appears.
In the first Folding menu, the following functions can be controlled:
 Pendulum lock
 Fold-in the linkage symmetrically
 Fold-in the linkage asymmetrically [convenience extension
only]
- Press the key to enter the second Folding menu.
The second Folding menu now appears.
In the second Folding menu, the following functions can be con-
trolled:
 Slope compensation
 One-side bending of boom 1
To enter the first Folding menu again:
- Press the key.
- Lower the linkage into the transport bag entirely.
