Electronic level indicator
19
7 ELECTRONIC LEVEL INDICATOR
The electronic level indicator shows the level on the device. The electronic level indicator is lo-
cated on the device's control centre.
The electronic level indicator is connected to the device's job computer and consists - among
other things - of a display, a switch and LED displays.

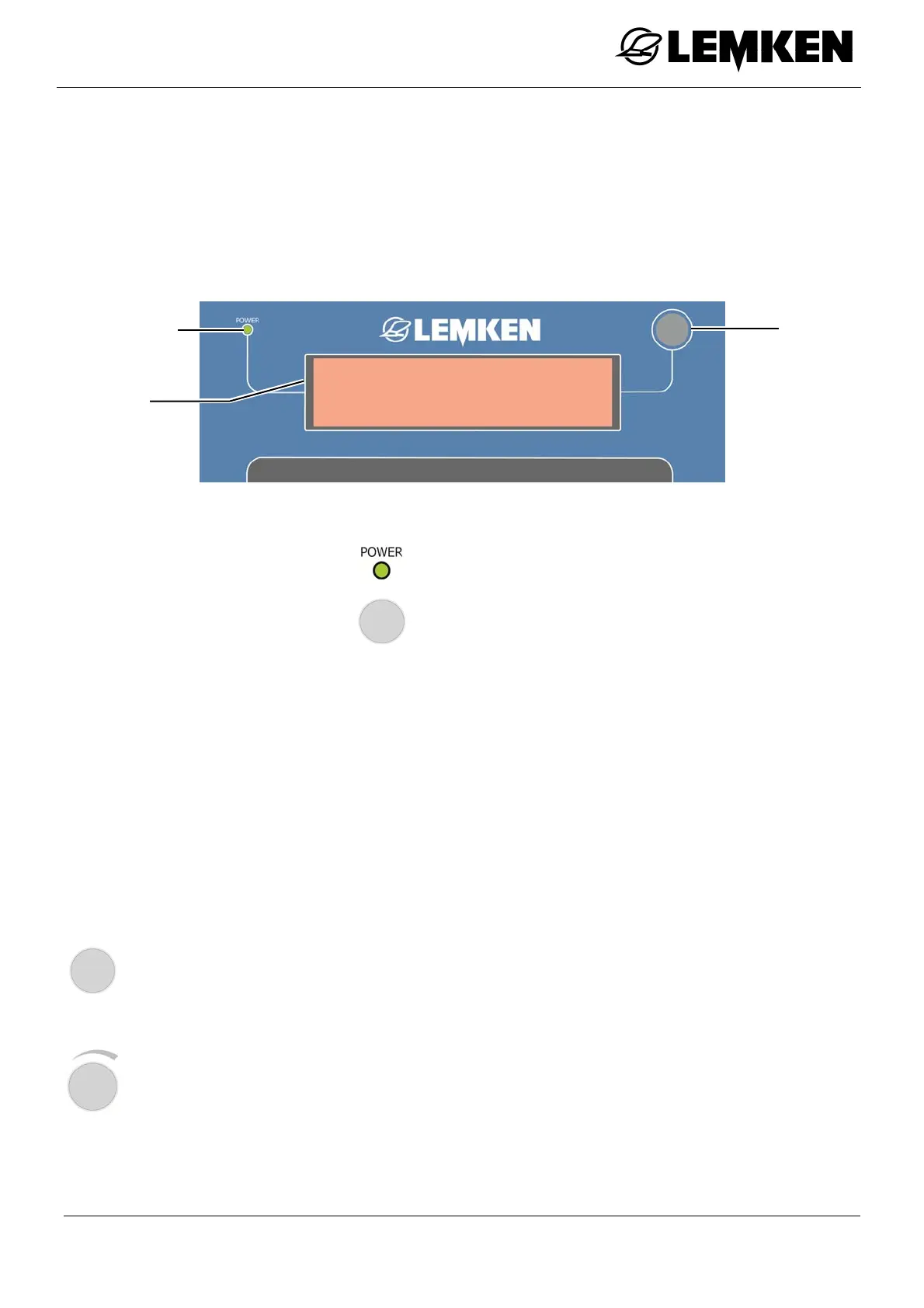

7.1 Overview
Key Function
Light emitting
diode
Acknowledge
alarm
7.2 Function
The electronic level indicator can be used to display the following:
Current level display
Maximum filling quantity alarm
Minimum filling quantity alarm
An alarm is shown when the filling quantity configured on the terminal for each alarm is then
reached. The alarm is shown on the terminal and on the display of the electronic level indicator.
To acknowledge an alarm on the electronic level monitoring:
- Press the switch.
To acknowledge an alarm on the terminal:
- Press the rotary encoder.
Switch
Display
Light emit-
ting diode
