•UseanydocumentationthatcomeswiththeTR700Batteryandfollowthoseinstructionsinadditionto
theinstructionsinthistopic.
ToremovetheTR700Battery,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Removetheservercover.See“Removingtheservercover”onpage85.
3.Laytheserveronitssideforeasieroperation.
4.IfaPCIcardbracketassemblyisinstalledinyourserver,removethePCIcardbracketassembly.See
“RemovingandreinstallingthePCIcardbracketassembly”onpage89.
5.LocateandremovetheThinkServerRAID700Adapter,whichisakindofRAIDcard.See“Installingor
removingtheRAIDcard”onpage104.
6.CarefullyremovethethreescrewsthatsecuretheTR700Battery,andthenlifttheTR700Batteryup
fromtheThinkServerRAID700Adapter.
Note:Centerthescrewdriverwhenyouremovethescrewstoavoidpossibledamagetoanyparts.

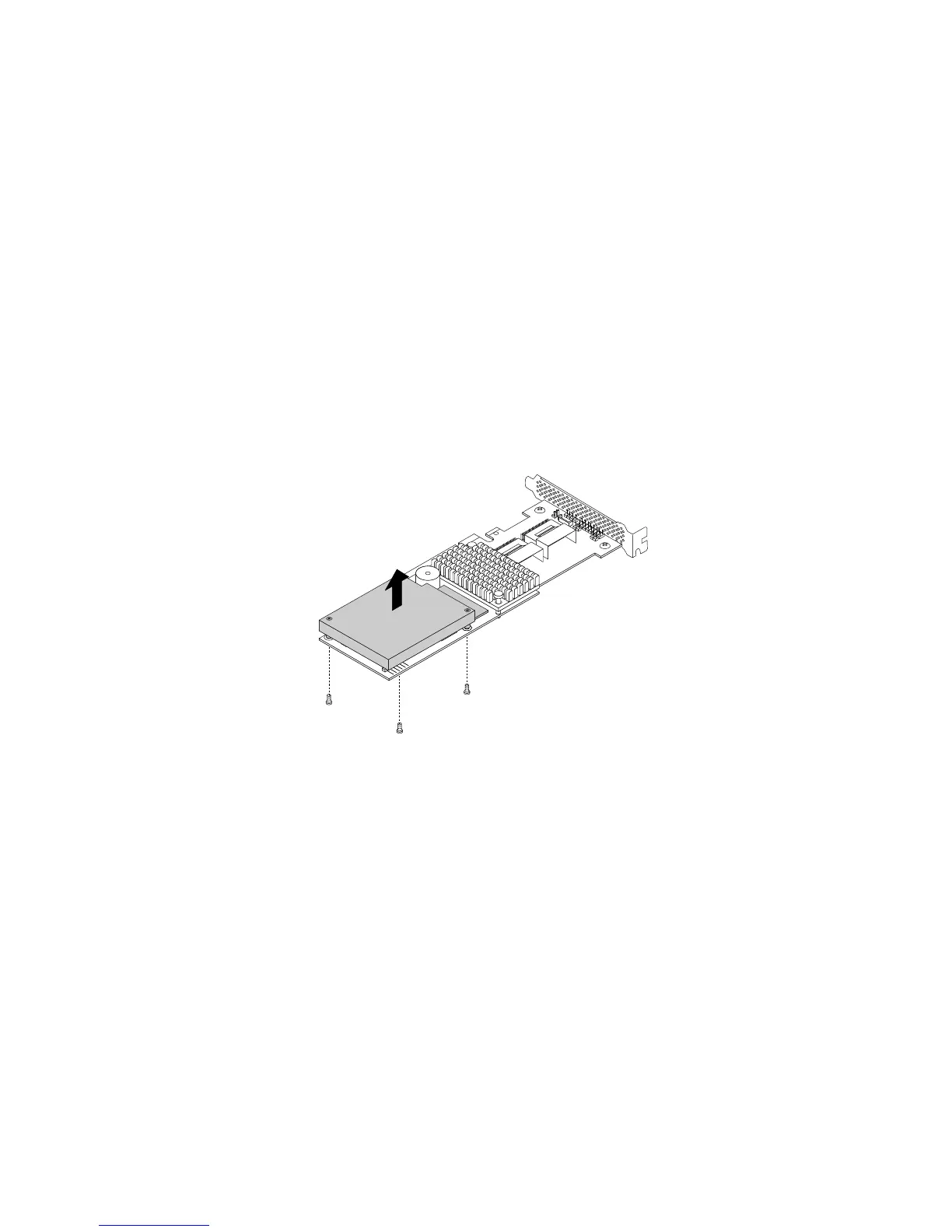

Figure55.RemovingtheTR700Battery
7.IfyouwanttoinstallanewTR700Battery,see“InstallingtheTR700Battery”onpage110.
8.ReinstalltheThinkServerRAID700AdapterwithanewTR700BatteryorwithoutaTR700Battery.See
“InstallingorremovingtheRAIDcard”onpage104
.
9.ReinstallthePCIcardbracketassembly.See“RemovingandreinstallingthePCIcardbracket
assembly”onpage89
.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage200.
InstallingorremovingtheThinkServerRAID100orRAID300upgrade
keyforAdvancedRAID
YourserversupportsboththeThinkServerRAID100upgradekeyforAdvancedRAID(hereinafterreferredto
astheTR100Key)andtheThinkServerRAID300upgradekeyforAdvancedRAID(hereinafterreferredtoas
theTR300Key).TheTR100orTR300KeyexpandsthecapabilityofthesystemboardbyactivatingRAID5
