6.RoutethesignalcableoftheIDMthroughthecorrespondingholeinthechassisandpositiontheIDMon
thechassissothatthescrewholeintheIDMisalignedwiththecorrespondingscrewhole
1inthe
chassis.Then,installthescrewtosecuretheIDMinplace.

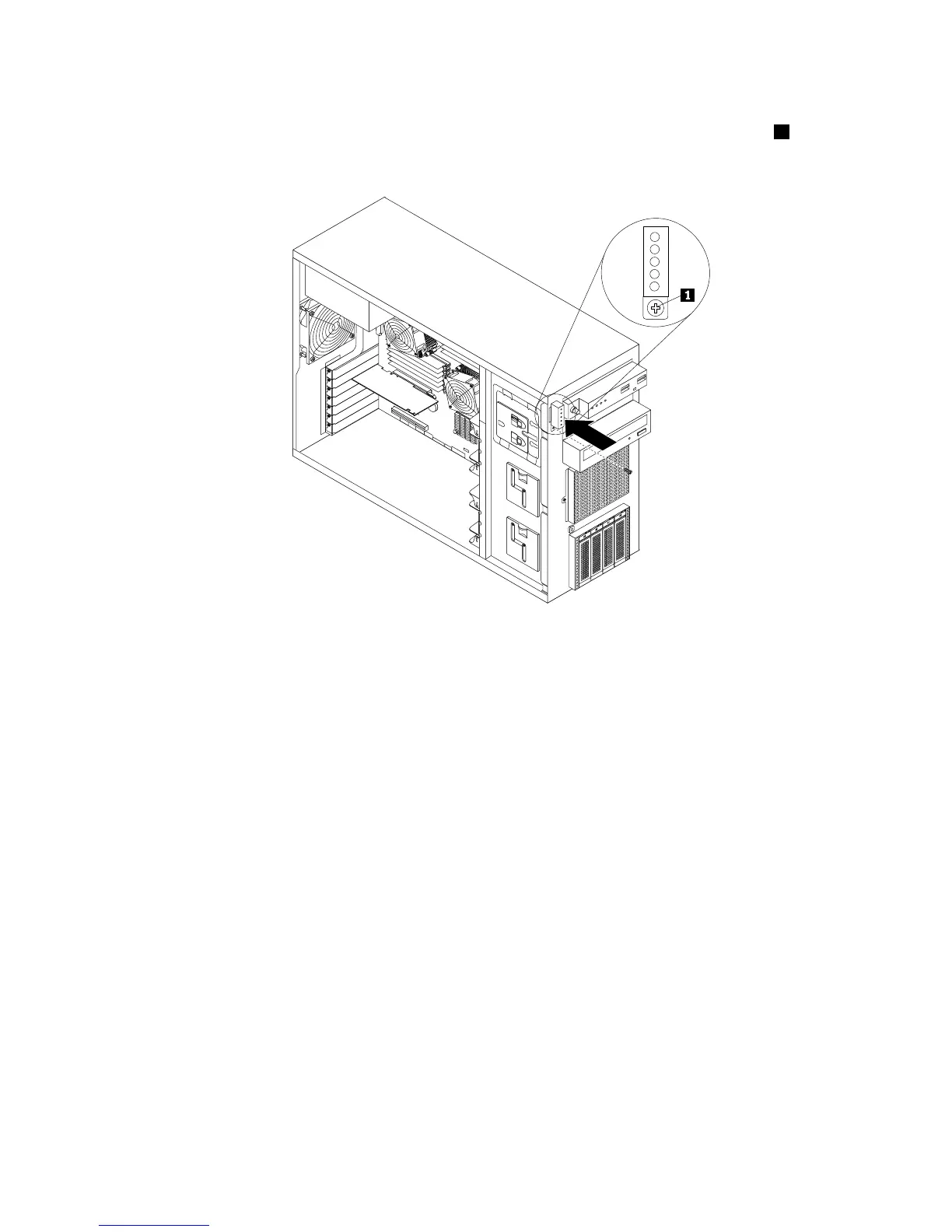

Figure62.InstallingtheIDM
7.Removethefrontsystemfans.See“Replacingthefrontsystemfan1”onpage183.
Chapter6.Installing,removing,orreplacinghardware123
