•Forthe2.5-inchhot-swaphard-disk-drivecage,installthesixscrewstosecurethebackplaneon
thecage.

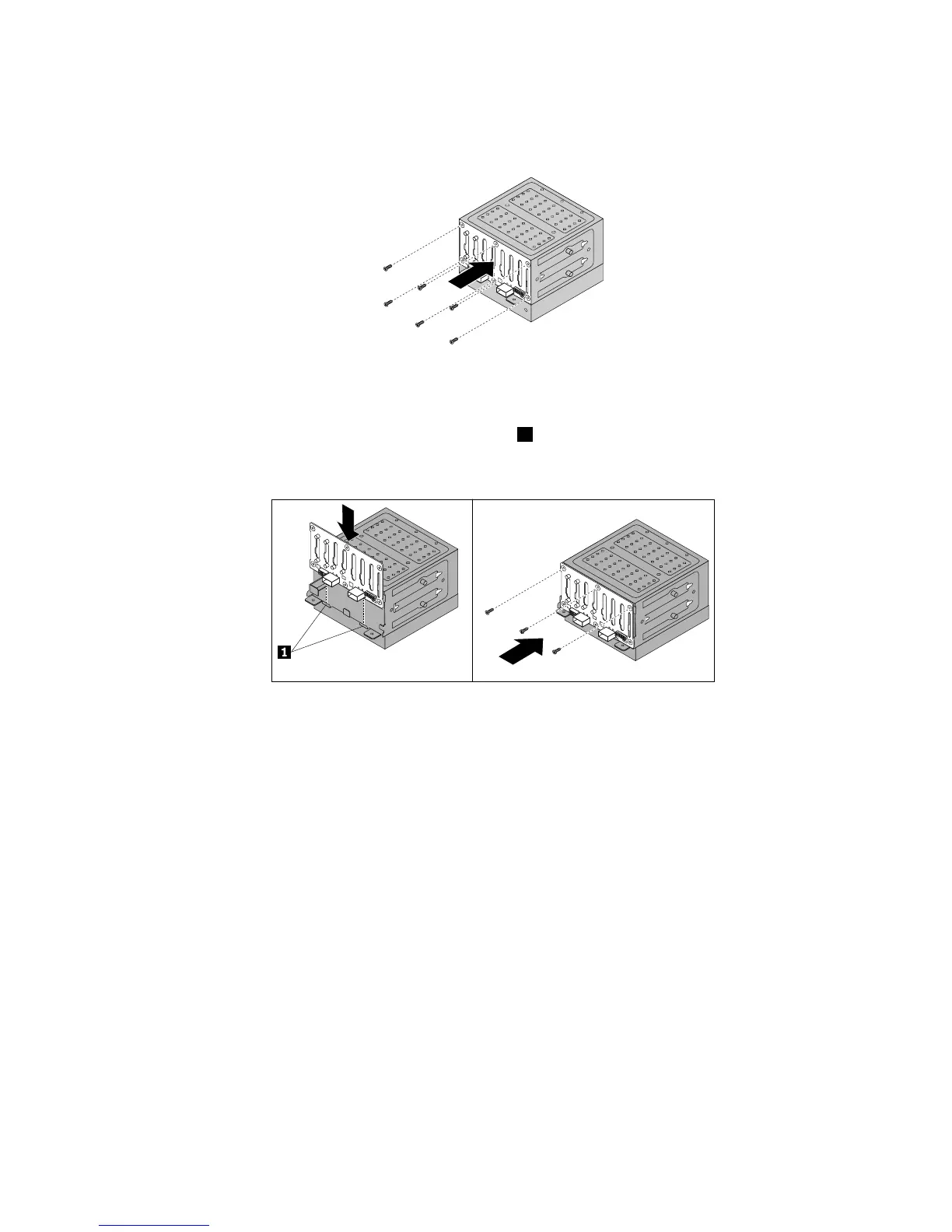

Figure117.Installingthe2.5-inchhot-swaphard-disk-drivebackplane
Note:Ifyouwanttoinstallthefollowingbackplaneforthe2.5-inchhot-swaphard-disk-drivecage,
ensurethatthebackplaneissecuredbythetwotabs1.Then,installthethreescrewstosecure
thebackplaneonthecage.
Figure118.Installingthe2.5-inchhot-swaphard-disk-drivebackplane
176ThinkServerTD340UserGuideandHardwareMaintenanceManual
