Toreplacethesystemboard,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandthecomputer.Then,disconnect
allpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtothecomputer.
2.Laythecomputeronitssideforeasieraccesstothesystemboard.
3.Removethecomputercover.See“Removingthecomputercover”onpage90.
4.Removethefrontbezel.See“Removingandreinstallingthefrontbezel”onpage90.
5.Pressthereleasetab1asshownandpivotthedrivebayassemblyupward.

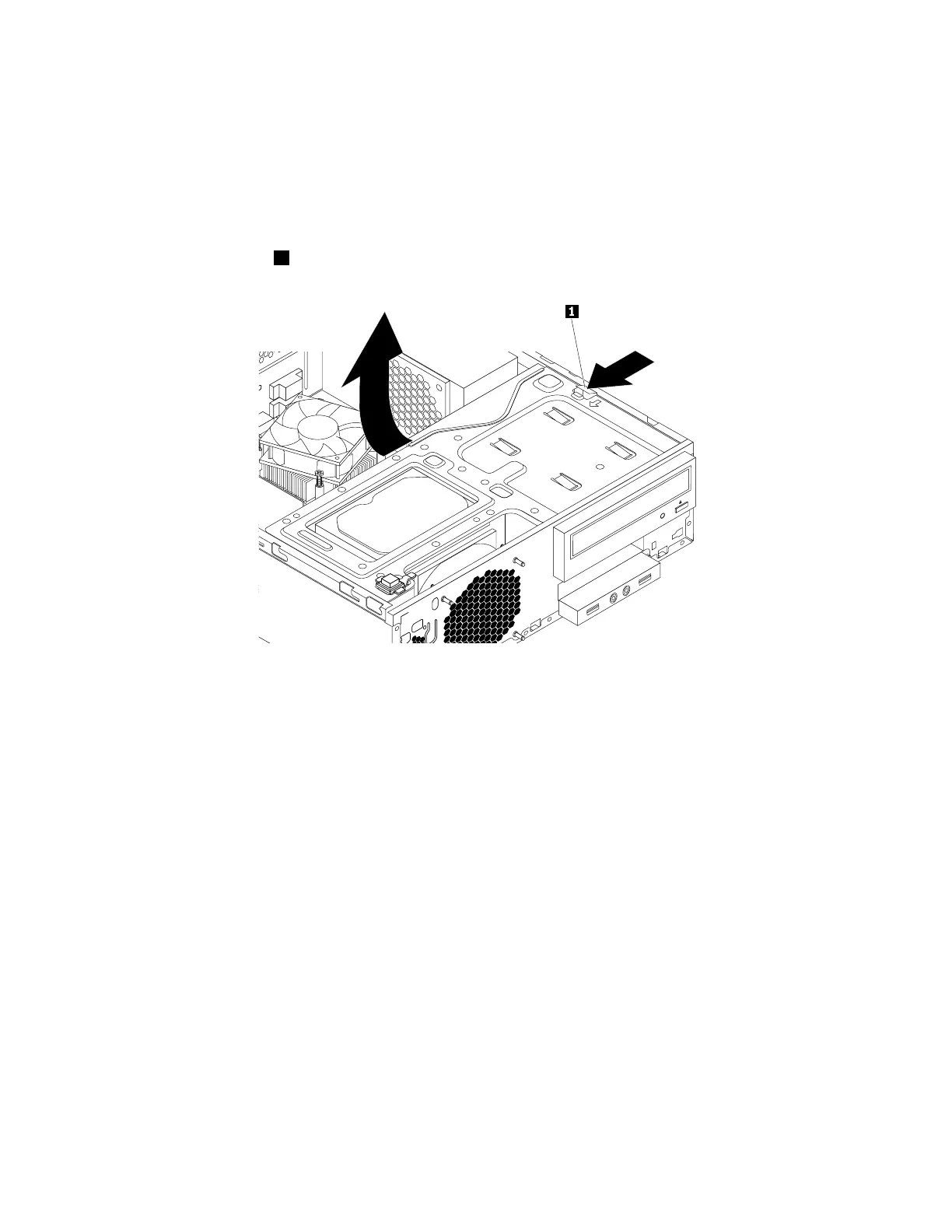

Figure33.Pivotingthedrivebayassemblyupward
6.RemoveallinstalledmemorymodulesandPCIcards.See“Installingorreplacingamemorymodule”
onpage97
and“InstallingorreplacingaPCIcard”onpage99.
7.Removetheheatsinkandfanassembly.See“Replacingtheheatsinkandfanassembly”onpage136.
8.Recordthecableroutingandcableconnectionsandthendisconnectallcablesfromthesystemboard.
See“Partsonthesystemboard”onpage34
.
