7.Pullthebluehandletoslidetheharddiskdriveoutofthedrivecage.

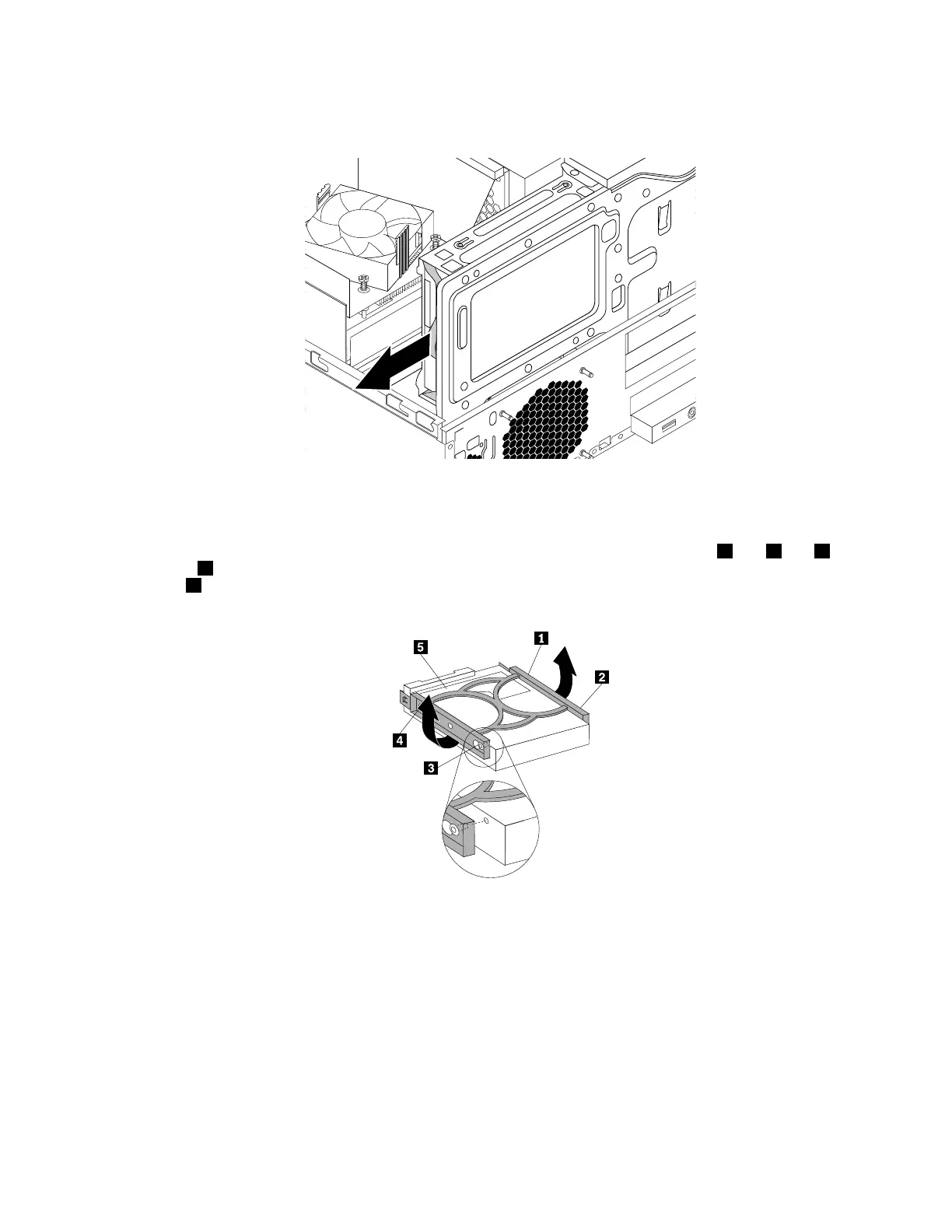

Figure105.Removingtheprimaryharddiskdrive
8.Flexthesidesofthebluebrackettoremovetheharddiskdrivefromthebracket.
9.Toinstallanewharddiskdriveintothebluebracket,flexthebracketandalignpin1,pin2,pin3,
andpin4onthebracketwiththecorrespondingholesintheharddiskdrive.Donottouchthecircuit
board5onthebottomoftheharddiskdrive.
Figure106.Installingtheharddiskdriveintothebracket
Chapter9.Installingorreplacinghardware151
