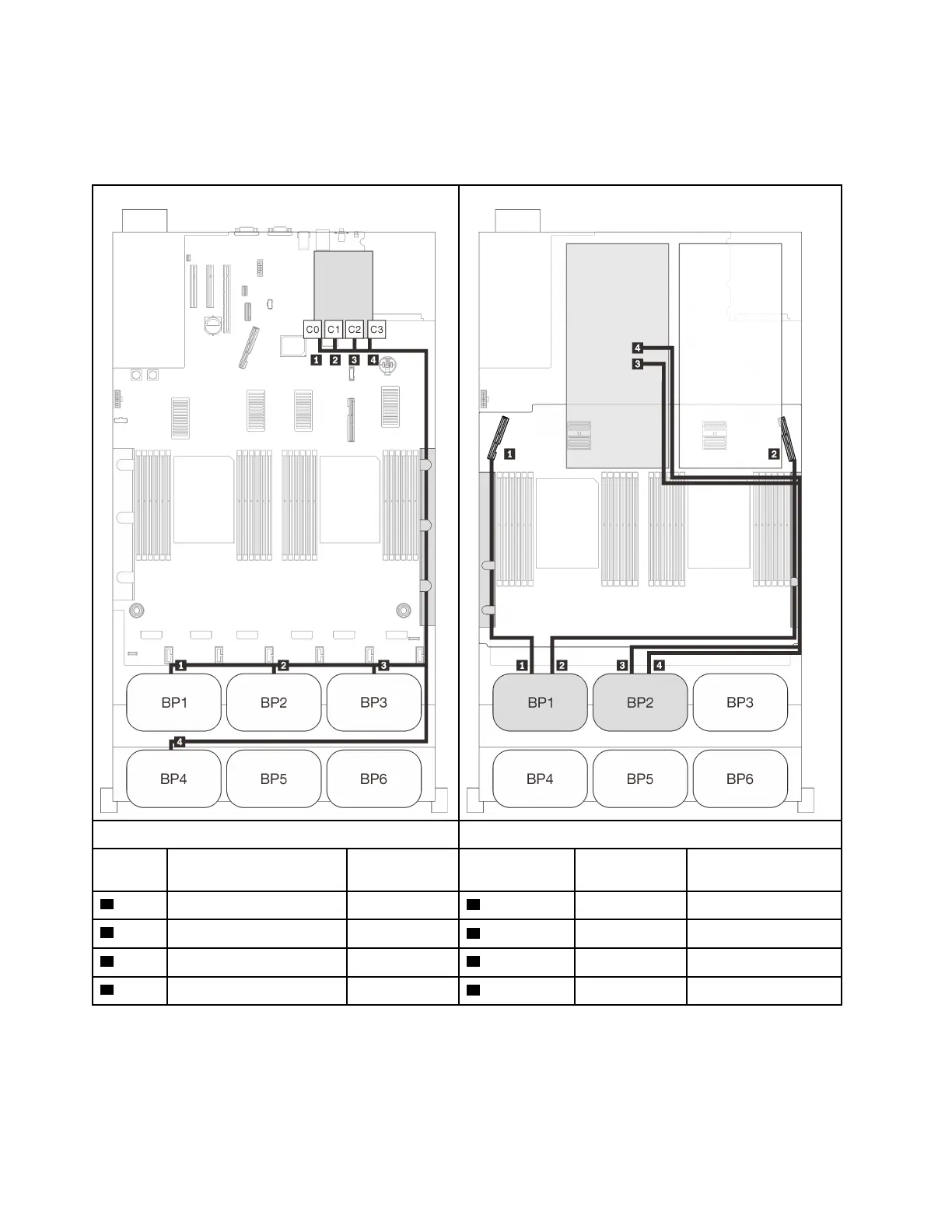

Four backplanes
Two AnyBay and two SAS/SATA backplanes
32i RAID adapter
SAS/SATA cable routing PCIe cable routing
Length
To
NVMe
connector
Length
To
1
945 mm
C0 (32i)
1 0-1, 2-3 530 mm
PCIe 3 (tray)
2
820 mm
C1 (32i)
2 4-5, 6-7 670 mm
PCIe 6 (tray)
3
690 mm
C2 (32i)
3 0-1, 2-3 1100 mm
C0, C1 (Slot 10)
4
830 mm
C3 (32i)
4 4-5, 6-7 1100 mm
C0, C1 (Slot 12)
