Lift the fan module to remove it.
Step 2. Identify the fan slot to install the fan modules in.

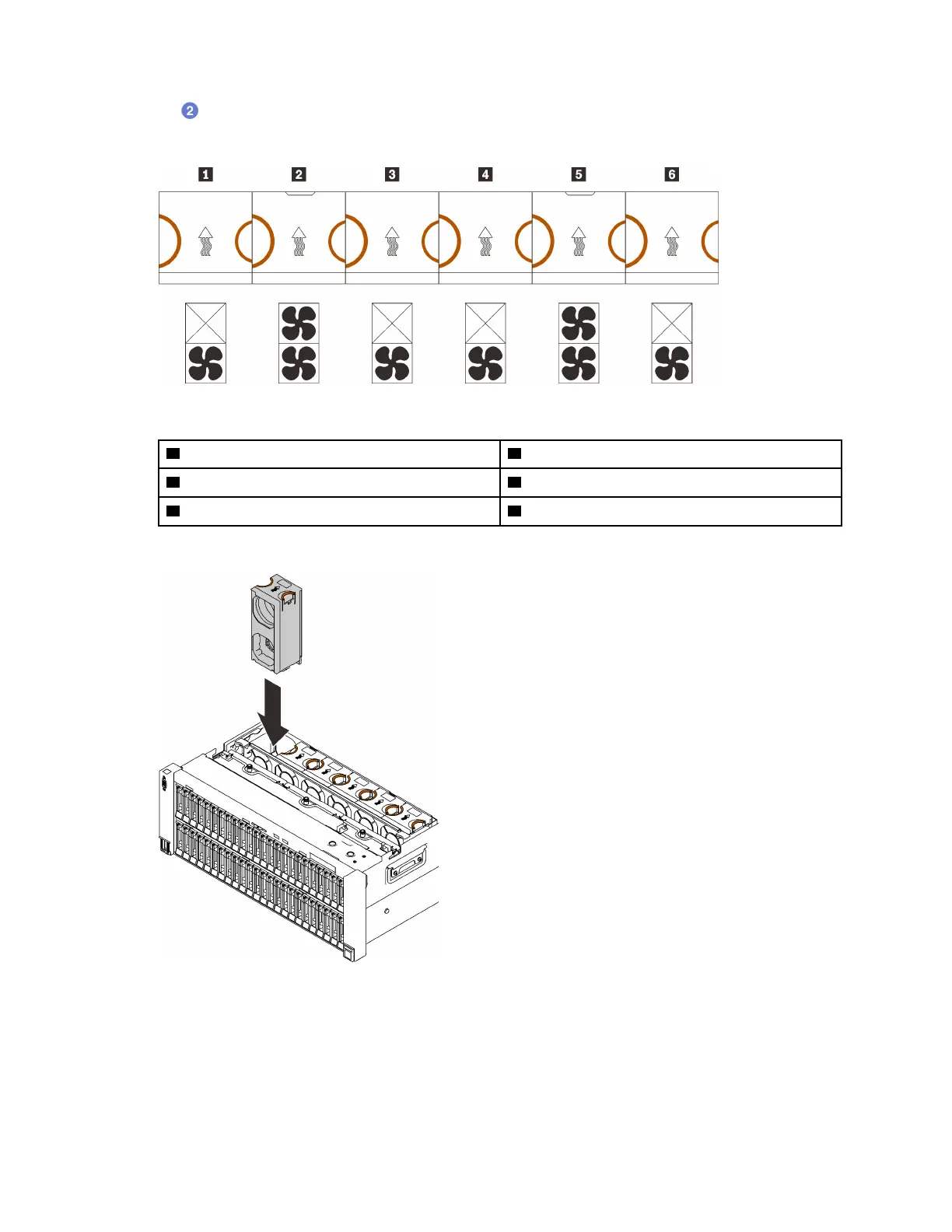

Figure 71. Fan module distribution
1 Fan 1 (single-fan module) 4 Fan 4 (single-fan module)
2 Fan 2 (dual-fan module) 5 Fan 5 (dual-fan module)
3 Fan 3 (single-fan module) 6 Fan 6 (single-fan module)
Step 3. Install fan modules in the upgrade kit in the corresponding slots.
Figure 72. Installing a fan module
Attention: With power on, complete the replacement within 30 seconds to ensure proper
operation.
Remove the fan cage assembly
Follow instructions in this section to remove the fan cage assembly.
