2.5-inch AnyBay/NVMe 8-bay drive backplane kit
See this section to identify parts that are enclosed in the 2.5-inch AnyBay/NVMe 8-bay drive backplane kit.
This option kit comes with the following components.

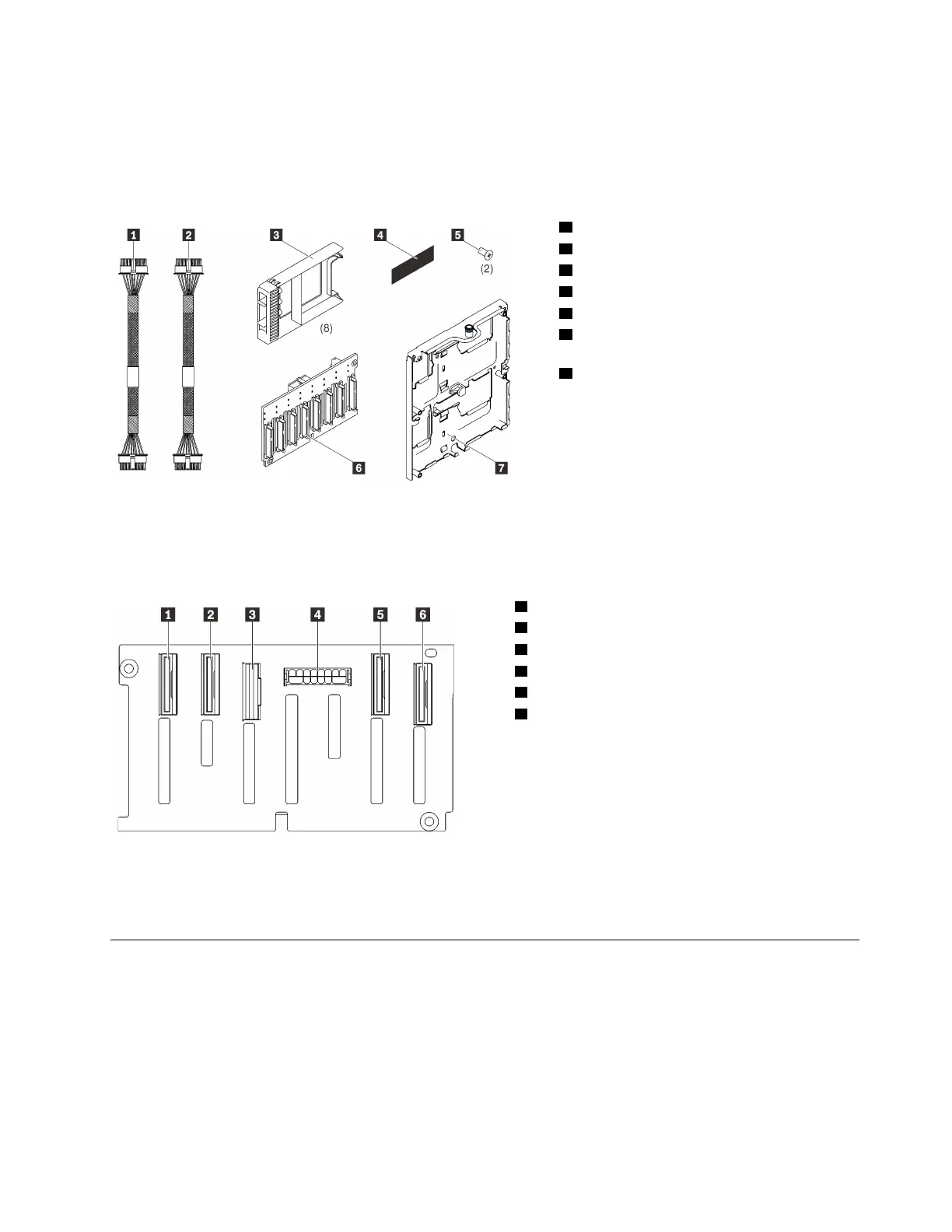

Figure 31. 2.5-inch 8-bay SAS/SATA backplane kit
1 One power cable, 155 mm
2 One power cable, 220 mm
3 Eight one-bay drive fillers
4 One AnyBay/NVMe label
5 Two screws
6 One 2.5-inch 8-bay AnyBay/NVMe
backplane
7 One drive backplane carrier
See the following to identify connectors on the drive backplane.
Figure 32. AnyBay/NVMe drive backplane connectors
1 NVMe signal connector (6-7)
2 NVMe signal connector (4-5)
3 SAS/SATA signal connector
4 Backplane power/configuration connector
5 NVMe signal connector (2-3)
6 NVMe signal connector (0-1)
Follow the instructions in “Install a drive backplane carrier assembly” on page 182 to install the option kit.
2.5-inch drive SAS/SATA cable kits
See this section to identify parts that are enclosed in the SAS/SATA cable kits.
On-board connector and 8i RAID adapter cable kit
See this section to identify parts that are enclosed in the On-board connector and 8i RAID adapter cable kit.
This option kit comes with the following components.
Chapter 4. Server options 135

Lenovo ThinkSystem SR860 V2 Specifications

General

Expansion Slots	Up to 8 PCIe 4.0 slots
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	Multiple 1Gb, 10Gb, or 25Gb Ethernet options
Power Supply	Redundant hot-swap power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Management	Lenovo XClarity Controller (XCC)
