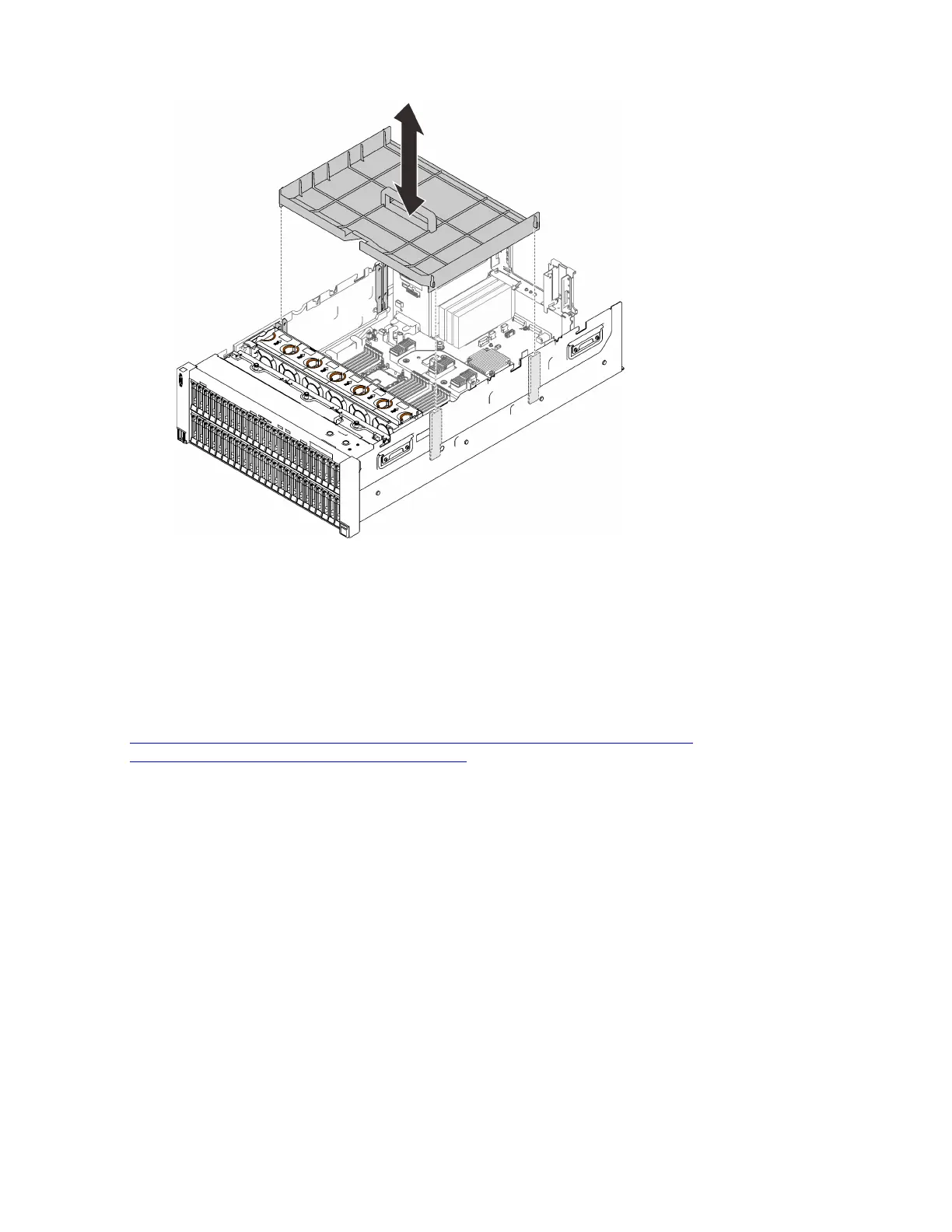

Figure 85. Removing the system board air baffle
Remove the processor and memory expansion tray
Follow instructions in this section to remove the processor and memory expansion tray.
About this task
Watch the procedure. A video of this procedure is available from the following links:
•
https://www.youtube.com/playlist?list=PLYV5R7hVcs-C6QgmsUMRG6ul0bHzrGmsG
• https://list.youku.com/albumlist/show/id_54461099
Procedure
Step 1. Disengage the processor and memory expansion tray.
Chapter 5. Server hardware setup 193
