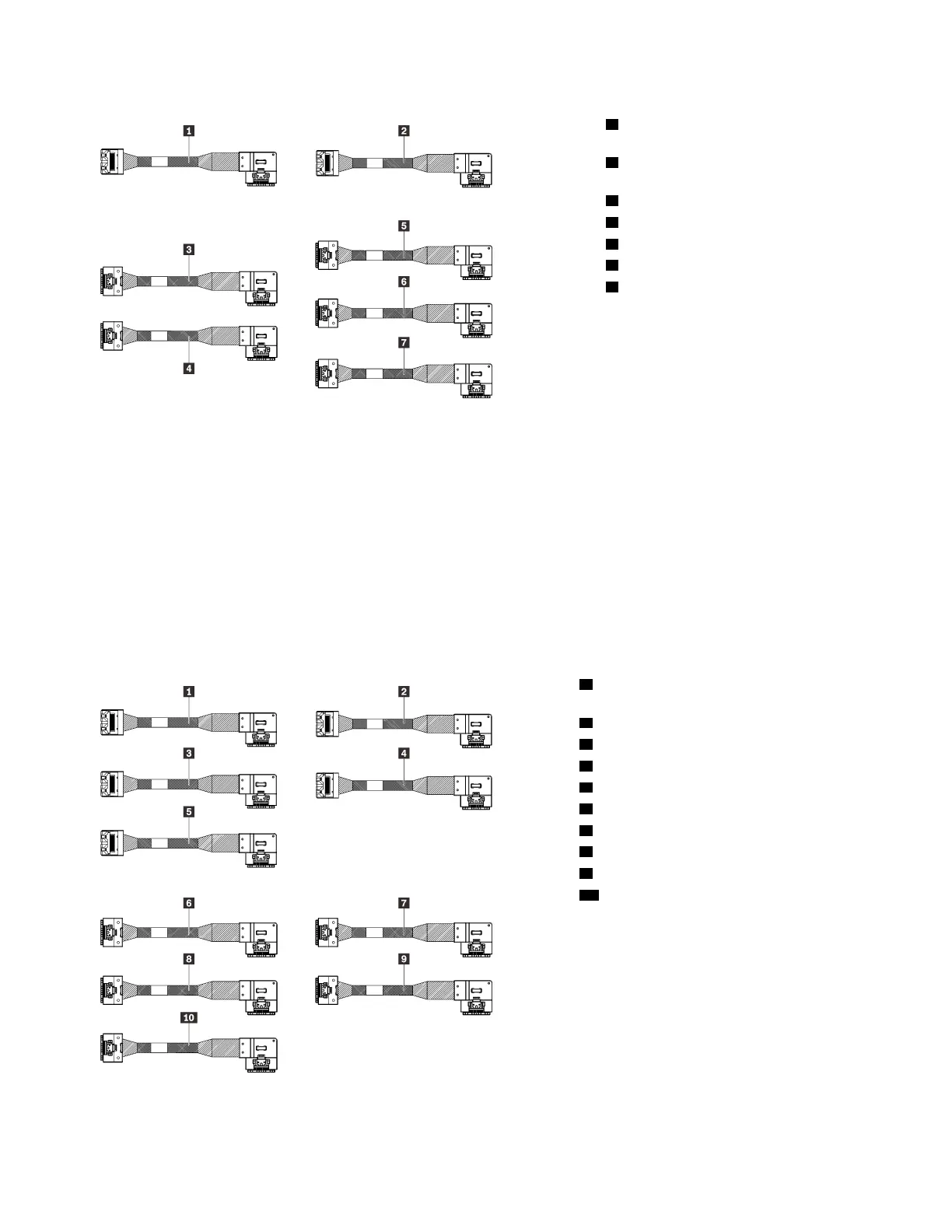

Figure 33. On-board connector and 8i RAID adapter cable kit
1 One MiniSAS/Slimline cable, 860
mm
2 One MiniSAS/Slimline cable, 1000
mm
3 One Slimline cable, 860 mm
4 One Slimline cable, 1000 mm
5 One Slimline cable, 830 mm
6 One Slimline cable, 690 mm
7 One Slimline cable, 665 mm
Note: MiniSAS/Slimline cables are meant for Gen3 RAID adapters, while Slimline cables are meant for Gen4
RAID adapters.
Follow the instructions in “Cable routing for 2.5-inch drives” on page 43 to learn how to install the option kit.
16i and 32i RAID adapter cable kit
See this section to identify parts that are enclosed in the 16i and 32i RAID adapter cable kit.
This option kit comes with the following components.
Figure 34. 16i and 32i RAID adapter cable kit
1 One MiniSAS/Slimline cable, 1000
mm
2 One MiniSAS/Slimline cable, 665 mm
3 One MiniSAS/Slimline cable, 820 mm
4 One MiniSAS/Slimline cable, 930 mm
5 One MiniSAS/Slimline cable, 860 mm
6 One Slimline cable, 1000 mm
7 One Slimline cable, 665 mm
8 One Slimline cable, 820 mm
9 One Slimline cable, 945 mm
10 One Slimline cable, 860 mm
136 ThinkSystem SR860 V2Setup Guide
