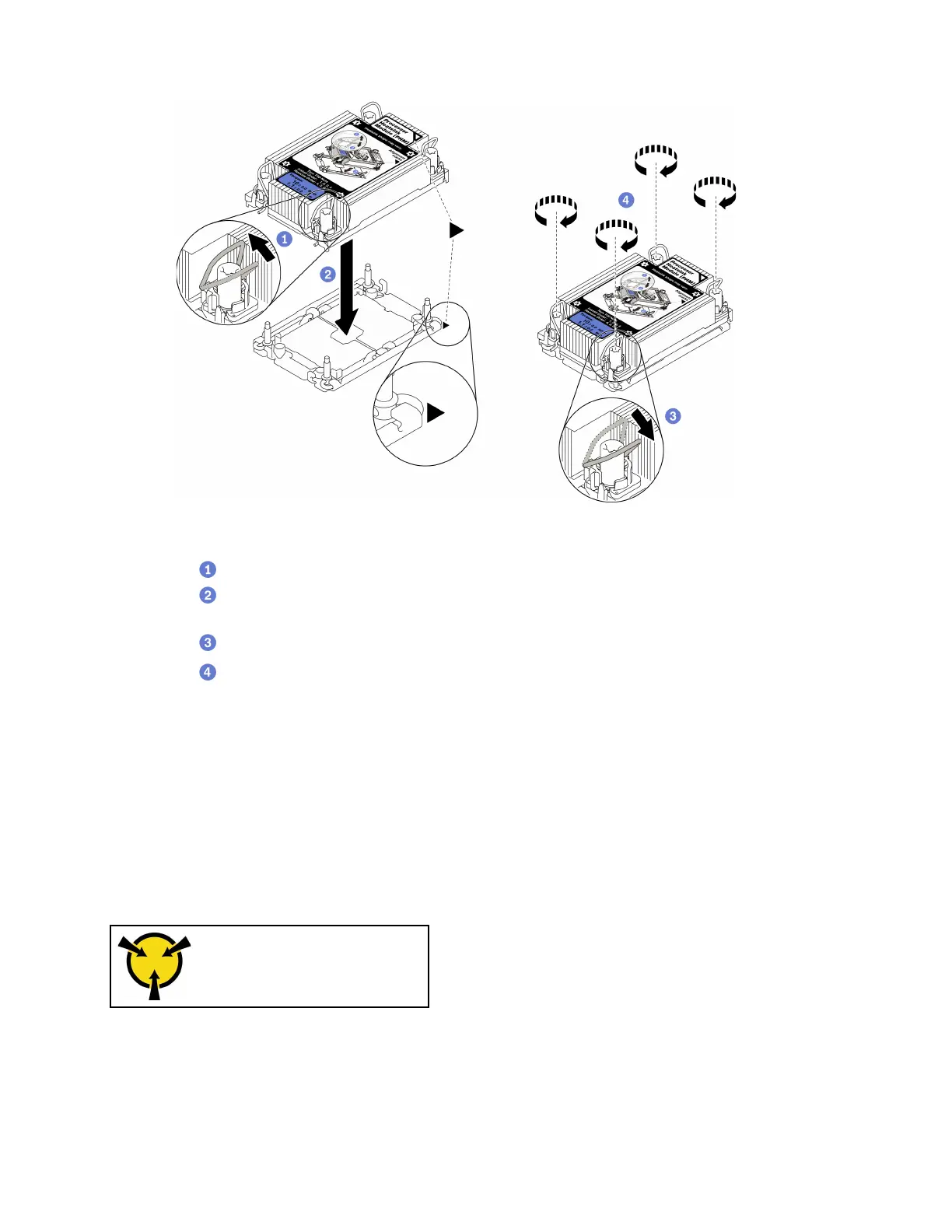

Figure 94. Installing a PHM
Rotate the anti-tilt wire bails inward.
Align the triangular mark and four Torx T30 nuts on the PHM with the triangular mark and
threaded posts of the processor socket; then, insert the PHM into the processor socket.
Rotate the anti-tilt wire bails outward until they engage with the hooks in the socket.
Fully tighten the Torx T30 nuts in the installation sequence shown on the heat-sink label.
Tighten the screws until they stop; then, visually inspect to make sure that there is no gap
between the screw shoulder beneath the heat sink and the processor socket. (For reference, the
torque required for the fasteners to fully tighten is 1.1 newton-meters, 10 inch-pounds).
Install a memory module
Follow instructions in this section to install a memory module.
About this task
See “Memory module installation rules and order” on page 151 for detailed information about memory
configuration and setup.
“ATTENTION:
Static Sensitive Device
Ground package before opening”
on page 150
Attention: Memory modules are sensitive to static discharge and require special handling. In addition to the
standard guidelines for “Handling static-sensitive devices” on page 150:
• Always wear an electrostatic-discharge strap when removing or installing memory modules. Electrostatic-
discharge gloves can also be used.
Chapter 5. Server hardware setup 201
