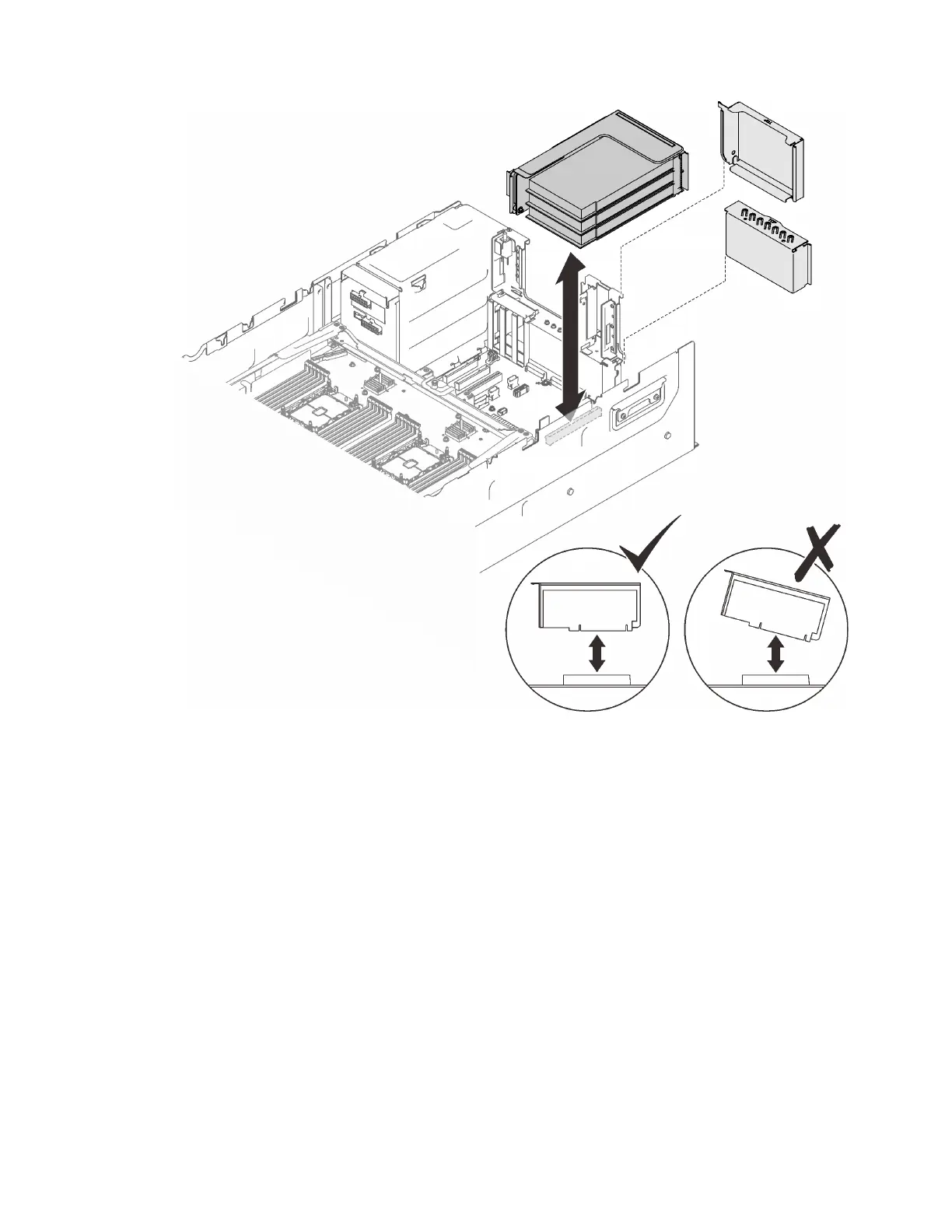

Figure 83. Installing the PCIe riser assembly
Step 2. If you are installing x16/x16/x16 riser assembly, connect the two PCIe cables to the system board.
Chapter 5. Server hardware setup 191
