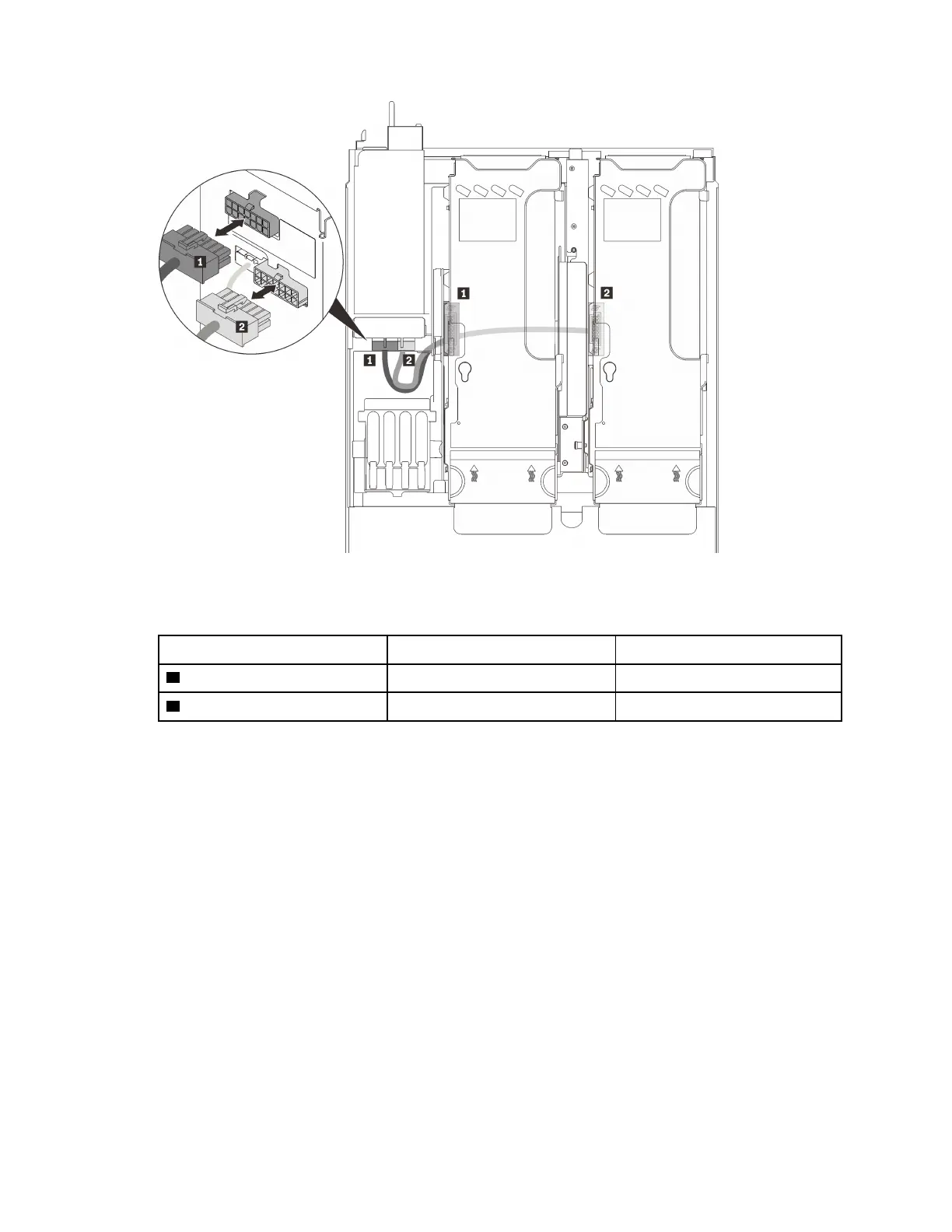

Figure 101. 4U PCIe riser power cables
Table 36. 4U PCIe riser power cables
Length From To
1 230 mm (shorter) PCIe riser cage 2
upper power connector
2 320 mm (longer) PCIe riser cage 1
lower power connector
Step 2. Flip the 4U PCIe expansion tray upside down.
Step 3. Align the power cable assembly with the key-shaped slots on the bottom of the 4U PCIe expansion
tray, and slide it backward to secure it.
