Basic units in the power range 75 ... 90 kW
Mounting with fixing brackets and mains choke (standard)
5
Basic device installation
5.7
5.7.1
L
5.7-1
EDS82EV903-1.0-11/2002
5.7 Basic units in the power range 75 ... 90 kW
5.7.1 Mounting with fixing brackets and mains choke (standard)
8200vec273

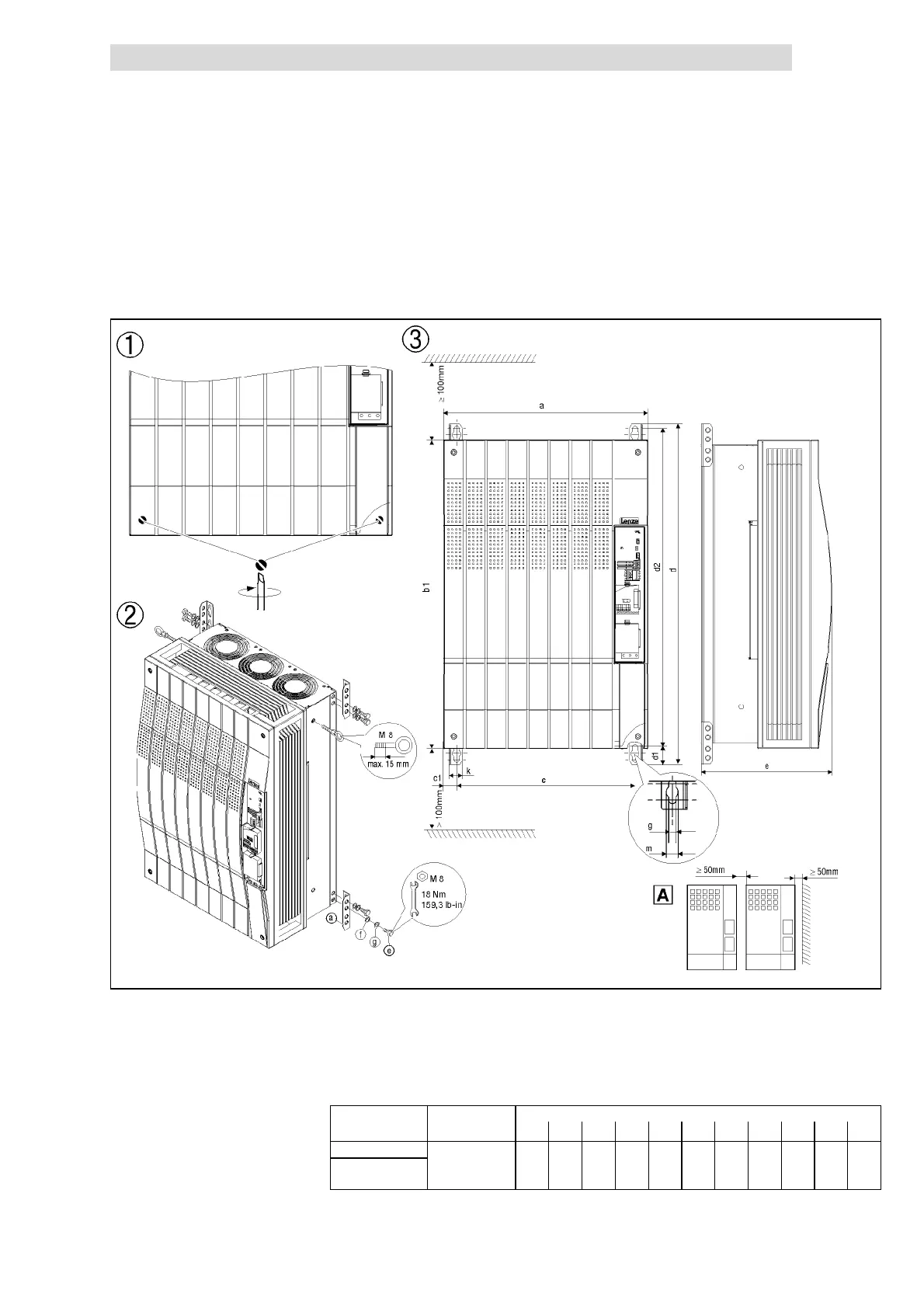

Fig. 5.7-1 Standard mounting with mains choke 75 ... 90 kW
 Loosebothscrewsinordertoremovethehousingcover.
 Mounting of the fixing brackets
 Dimensions
0
Mount the drive controllers side by side leaving a certain space for dismounting
the lifting-eye bolt.
Dimensions [mm]
8200 vector Mains choke a b1 c c1 d d1 d2 e g k m
E82EV753K4B2x1
E82EV903K4B2x1
ELN3-0017H170 450 680 395 30.5 750 38 702 285 11 28 18
