Basic units in the power range of 15 ... 90 kW
Communication modules
7
Extensions for automation
7.4
7.4.8
L
7.4-16
EDS82EV903-1.0-11/2002
7.4.8 Communication modules
)
))
) Note!
For information on wiring and using bus communication modules
please see the corresponding Mounting Instructions and
Manuals.
8200vec284

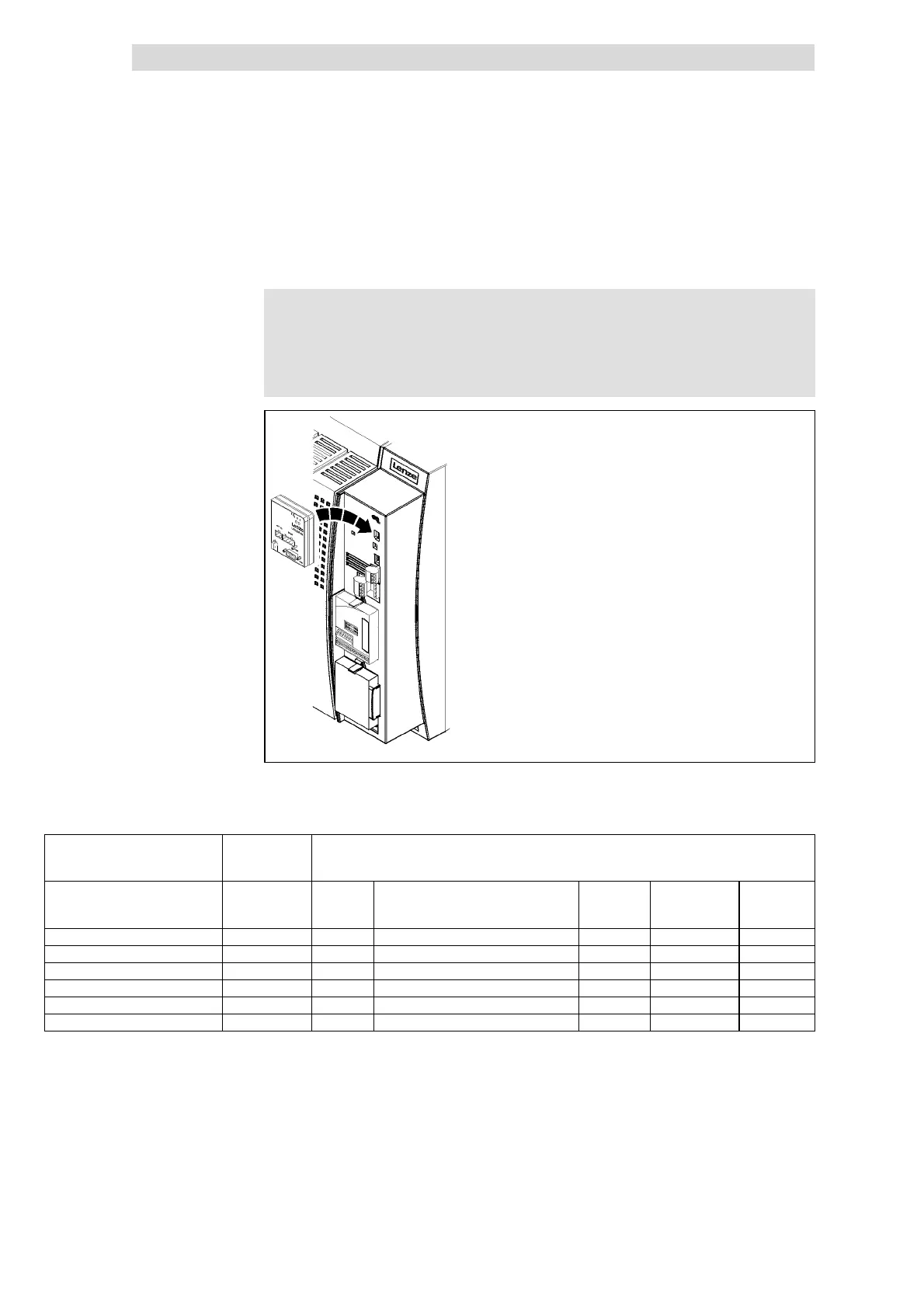

Fig. 7.4-9 Mounting/dismounting of the communication module
Attach/detach the communication module to/from the AIF interface.
This is also possible during operation.
Possible combinations Function
module on FIF
II
Communication module on AIF
Function module on FIF I
Standard I/O
E82ZAFS
PT E82ZAFS100
Keypad
E82ZBC
LECOM-A/B (RS232/RS485) 2102.V001
LECOM-B (RS485) 2102.V002
LECOM-LI (LWL) 2102.V003
INTERBUS
2111
PROFIBUS- DP
2131
System bus
(CAN)
2171/2172
Standard I/O E82ZAFS x ü ü ü ü ü
Application I/O E82ZAFA x ü ü ü ü ü
INTERBUS E82ZAFI ü ü ü x x ( ü)
PROFIBUS- DP E82ZAFP ü ü ü x x ( ü)
LECOM-B (RS485) E82ZAFL ü ü ü x x ( ü)
System bus (CAN) E82ZAFC ü ü ü ü ü ü
ü Combination possible
(
ü) Combination possible, communication module can only be used for parameterising.
x Combination not possible
