Signal processing in the function blocks
Process data of system bus function module (CAN1, CAN2)
16
Signal-flow charts
16.4
16.4.9
L
16.4-11
EDS82EV903-1.0-11/2002
Process data output words
CAN-OUT1.W1
CAN-OUT2.W1
CAN-OUT1.W2
CAN-OUT2.W2
CAN-OUT1.W3
CAN-OUT2.W3
CAN-OUT1.W4
CAN-OUT2.W4
Byte 1, 2
Byte 8, 9
Byte 3, 4
Byte 10, 11
Byte 5, 6
Byte 12, 13
Byte 7, 8
Byte 14, 15
16 Bit
16 Bit
16 Bit
16 Bit
16 Bit
16 Bit
16 Bit
16 Bit
16 Bit
16 Bit
CAN-OUT1.W1.B0
CAN-OUT2.W1.B0
…...
…...
…...
CAN-OUT1.W1.B15
CAN-OUT2.W1.B15
STAT1
CAN-OUT1
CAN-OUT2
STAT1.B0
STAT1.B15
…...
STAT2
STAT2.B0
STAT2.B15
CAN
7
LO
HI
C0421/7
C0421/8
C0421/9
C0421/10
C0421/3
C0421/4
C0421/5
C0421/6
C0417/16
C0417/1
…...
C0418/1
…...
C0418/16
8200vec510

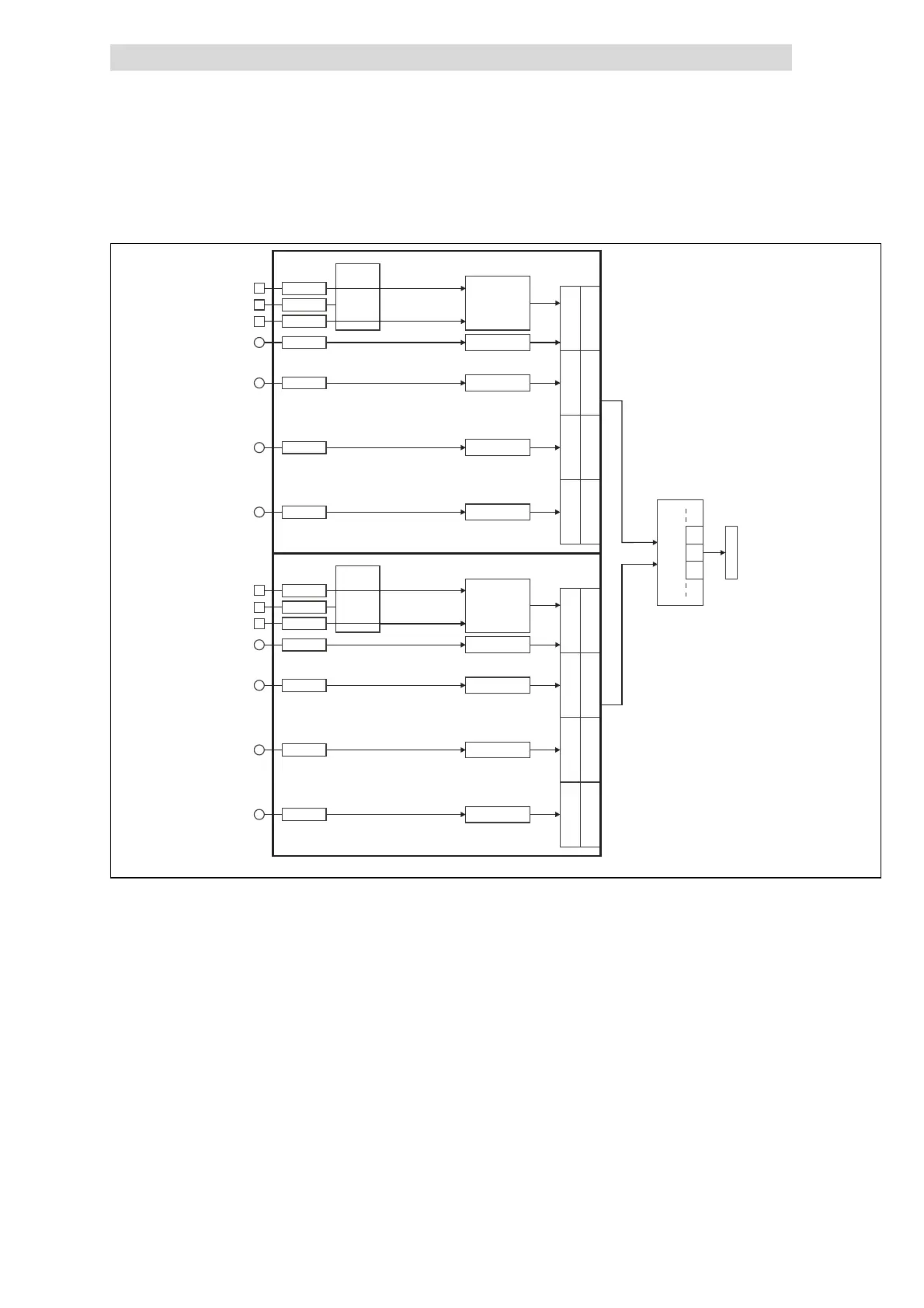

Fig. 16.4-12 Signal flow in CAN objects CAN-OUT1 and CAN-OUT2
