Basic units in the power range of 15 ... 90 kW
Function modules
7
Extensions for automation
7.4
7.4.1
L
7.4-3
EDS82EV903-1.0-11/2002
Dismount the function module only if it is absolutely necessary (e.g. when the
controller is replaced).
The pin strip which is used to connect the function module is part of the contact
system of the controller. It has not been designed for repeated connection and
disconnection of the function module.
8200vec279

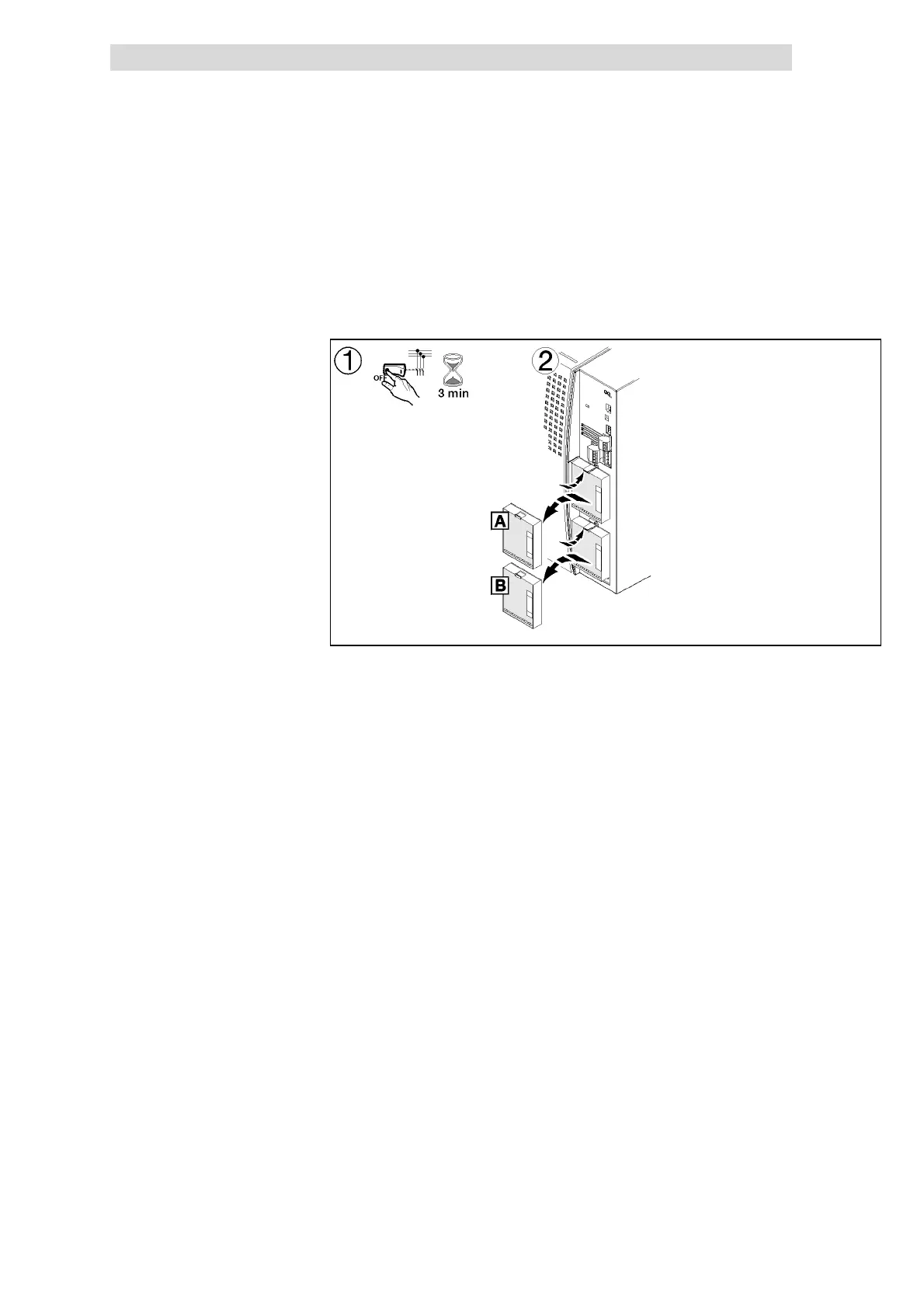

Fig. 7.4-2 Worksteps for the basic devices 15 ... 90 kW
 Disconnect the controller from the mains and wait for at least 3 minutes!
 Unplug the function module 0 or 1 from the interface.
Dismounting of the function
modules
