6 Function & parameter description
Control concept
40 Lenze · Inverter i510 / i550 - Cabinet · Operation Manual · 0.4 EN · 02/2016

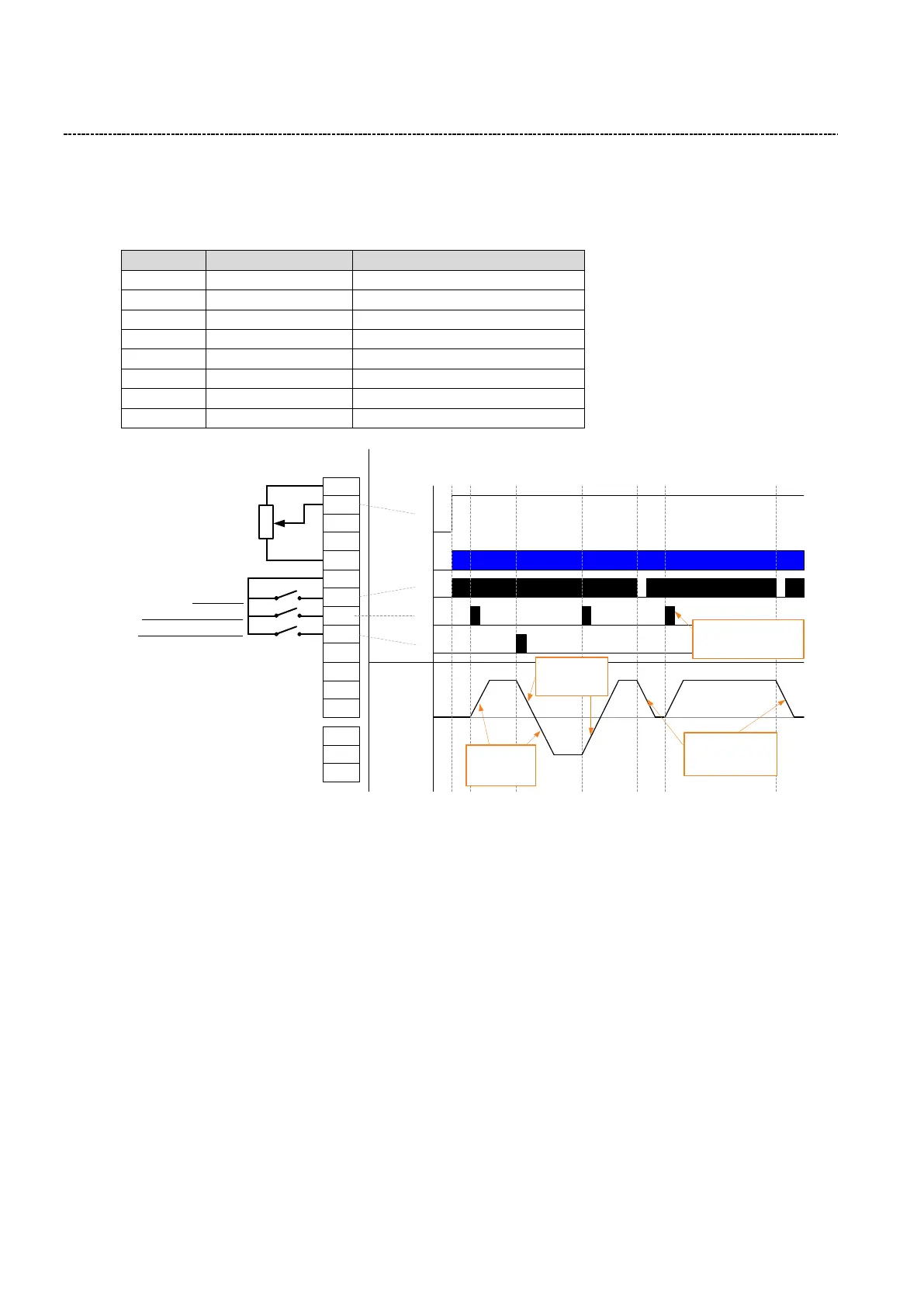

Start forward/reverse (Rising Edge triggered Signals)
 Start using flag triggered signals Start forward (CW) and Start reverse (CCW)
 Run/Stop Level LOW will stop the inverter according to the selected stop method (P203:3)
Parameter
Parameter Name
Setting for this example
P400:1
Inverter enable
1: Constant TRUE
P400:2
Run/Stop
11: Digital input 1
P400:3
Quick stop
0: Not connected
P400:6
Start forward (CW)
12: Digital input 2
P400:7
Start reverse (CCW)
13: Digital input 3
P400:8
Run forward (CW)
0: Not connected
P400:9
Run reverse (CCW)
0: Not connected
P400:13
Invert rotation
0: Not connected
GND
AO1
AI2
AI1
DI1
24V
10V
DI5
DI4
DI3
DI2
GND
DO1
Run/Stop
Start reverse (CCW)
Control Wiring
Start forward (CW)
P400:2
P400:7
P400:6
NO
COM
NC
1k … 10k
Potentiometer
DI1
DI2
Expected Behavior
50 Hz
AI1
Mains
DI3
50 Hz
0 Hz
-50 Hz
P220:0
Acceleration
time 1
P221:0
Deceleration
time 1
Stop method based
on P203:3 setting
Motor
Frequency
Start must be re-
triggered to restart after
Stop
