Firmware 03.00 - DMS EN 5.0 - 07/2009 L 111
8400 BaseLine D | Software Manual
I/O terminals
6I/O terminals
This chapter informs about the function and the possible parameter settings of the
controller's input and output terminals.

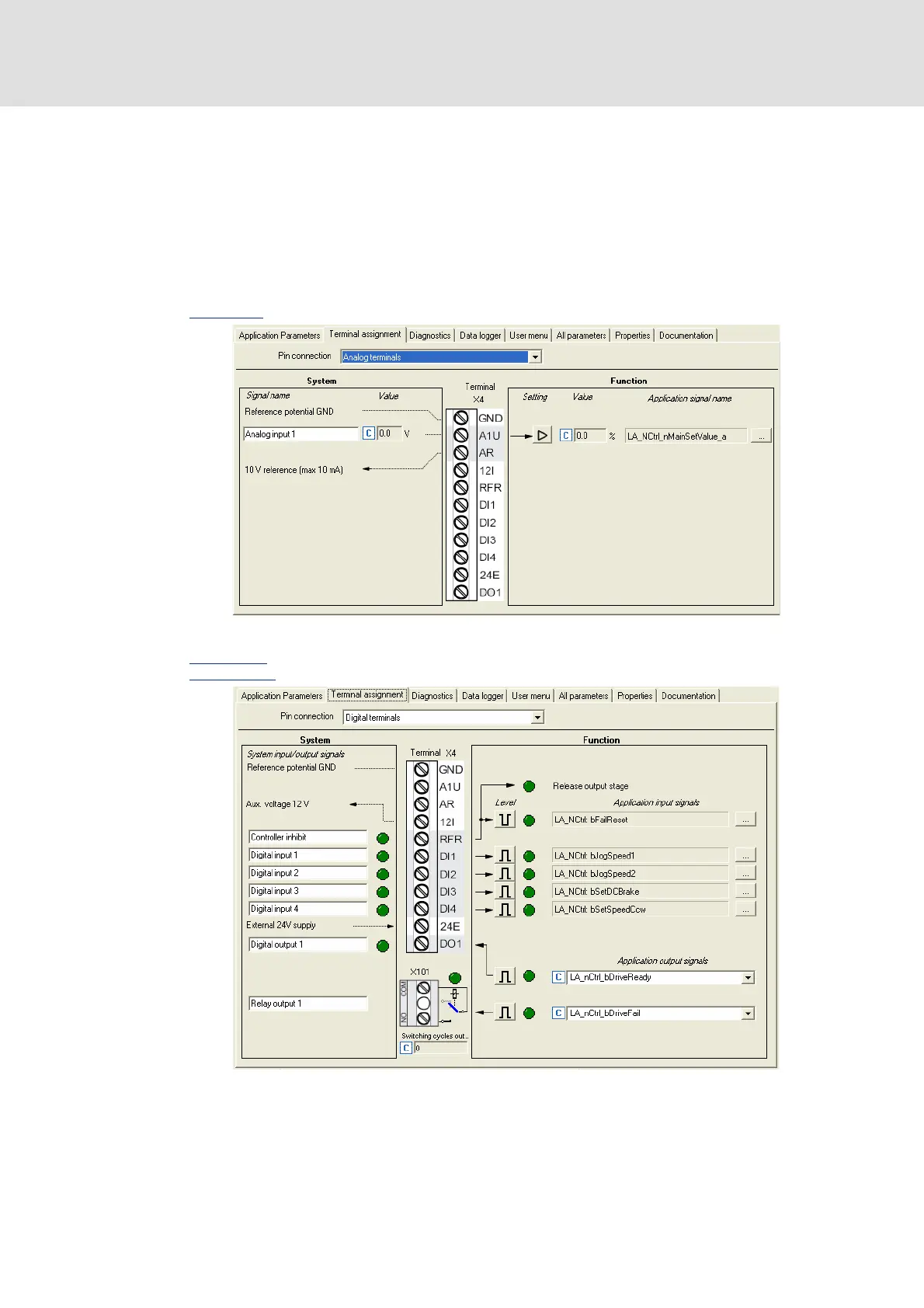

The parameters are set in the »Engineer« on the Terminal assignment tab. Here, "analog
terminals" and "digital terminals" are distinguished in the Control connections list field:
Analog input ( 112)
Digital inputs
( 116)
Digital outputs
( 118)
