Commissioning
Commissioning of the drive application with the »Engineer«
3.4.7 Diagnostics
Why does the motor not rotate?
If the motor does not move contrary to expectations after the last commissioning step, we
recommend the following systematic way to find out the reason for it.
1. Check the signal flow for plausible setpoints
2. Check setpoint sources
• Click the "Drive control" button (see illustration) of the "Diagnostics" tab
The appearing view is a complete summary of all control sources having an impact
on the controller:

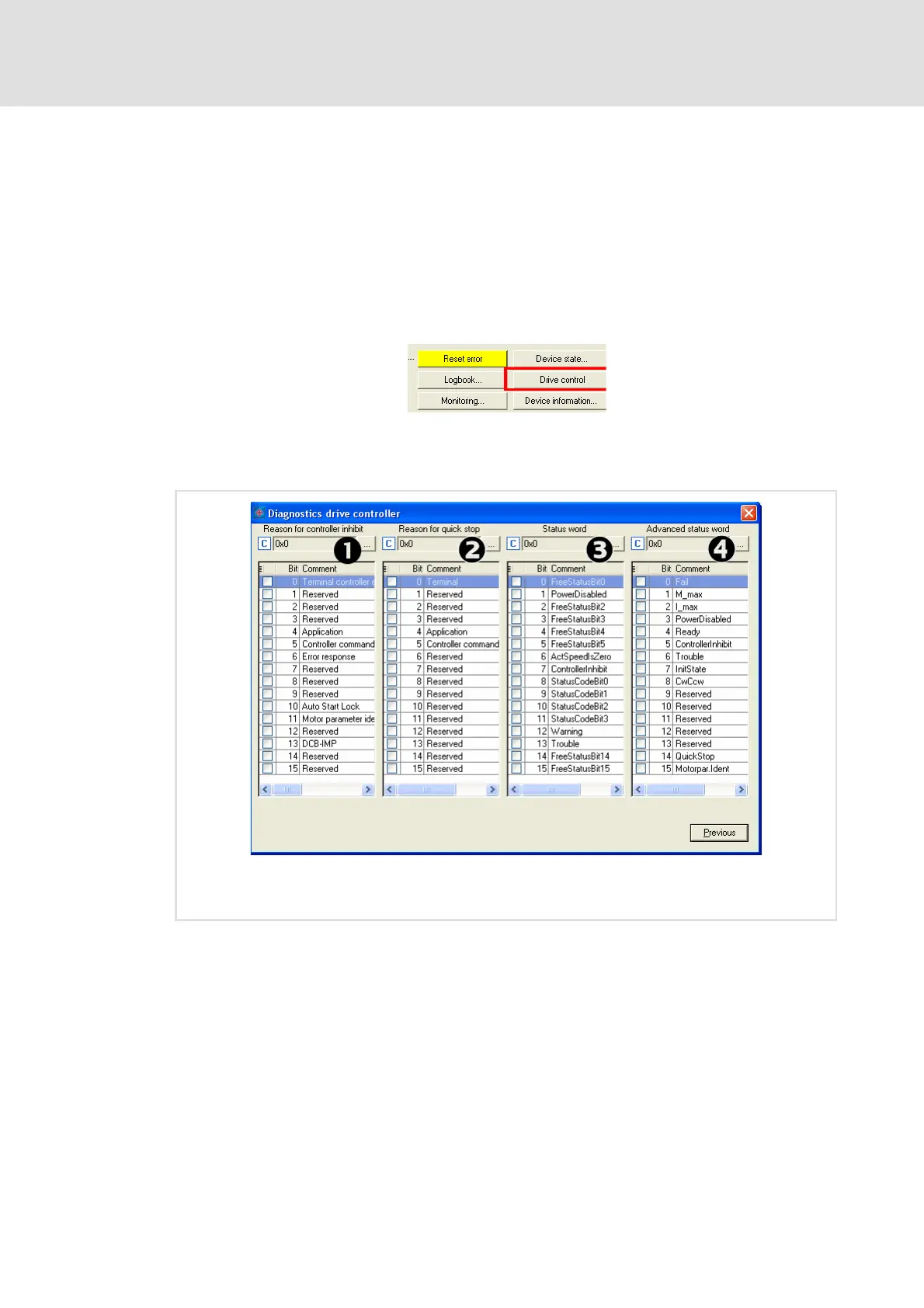

[3-8] Diagnostics options for drive control
Tip!
This information can also be displayed by the internal keypad. For this call the
codes specified in the header of the table.
n Control sources which set the drive to controller inhibit
o Control sources which set the drive to quick stop
p / q Diverse status information
