Lenze L-force 8400 BaseLine D - Parameter setting; Function block LS_DigitalOutput

Firmware 03.00 - DMS EN 5.0 - 07/2009 L 119
8400 BaseLine D | Software Manual
I/O terminals
Digital outputs
6.3.2 Parameter setting
Short overview of parameters for the digital outputs:

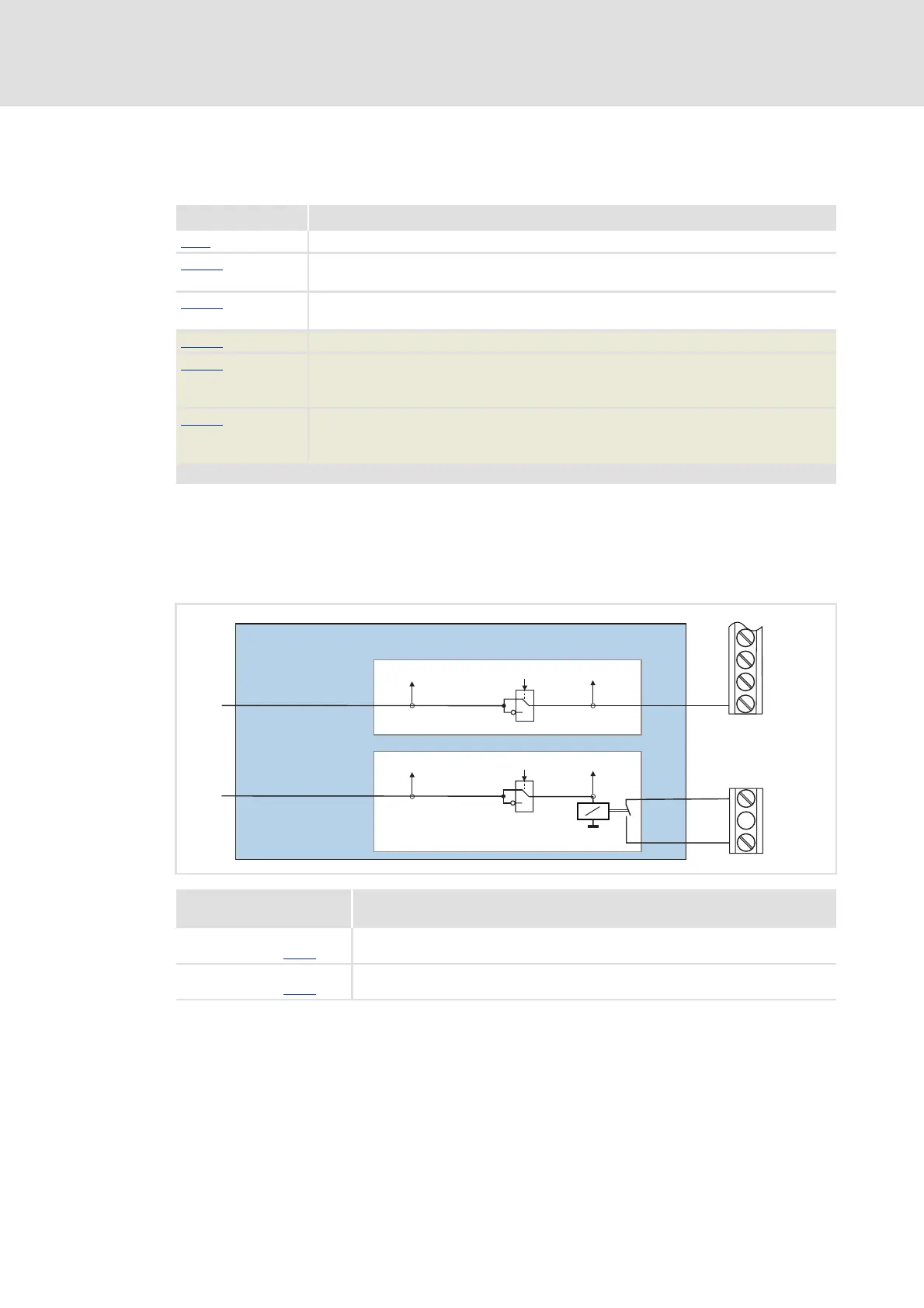

6.3.3 Function block "LS_DigitalOutput"
In the FB editor, the function block LS_DigitalOutput is the interface to the digital output
at the front of the controller.
Parameter Info
C118
Inversion of the output logic
C621/1
Linking the bRelay signal with the drive application
Lenze setting: LA_nCtrl_bDriveFail (50)
C621/2
Linking the bOut1 signal with the drive application
Lenze setting: LA_nCtrl_bDriveReady (51)
C177/2 Status: Switching cycles, output relay
C444/1 Status: Input level
• Bit 0: bRelay
• Bit 1: bOut1
C444/2 Status: Terminal level
• Bit 0: bRelay
• Bit 1: bOut1
Highlighted in grey = display parameter
Input
DIS code | data type
Information/possible settings
bOut1
C444/1 | BOOL
Digital output 1
bRelay
C444/1 | BOOL
Relay output, potential-free make contact
LS_DigitalOutput
bOut1
X101
bRelay
C118
0
1
C444/1
C444/2
Bit 0
Bit 1 Bit 1
Bit 0
C444/2
C118
0
1
NO
COM
DI3
DI4
24E
DO1
X4
C444/1
