8400 BaseLine D | Software Manual
Error management
Error messages of the operating system
130 L Firmware 03.00 - DMS EN 5.0 - 07/2009
7.5.1.4 Error ID
16-bit value (0 ... 65535) for error identification.
7.5.1.5 Example for bit coding of the error number
C168
displays the error number "75169803".
This decimal value corresponds to the following bit sequence:

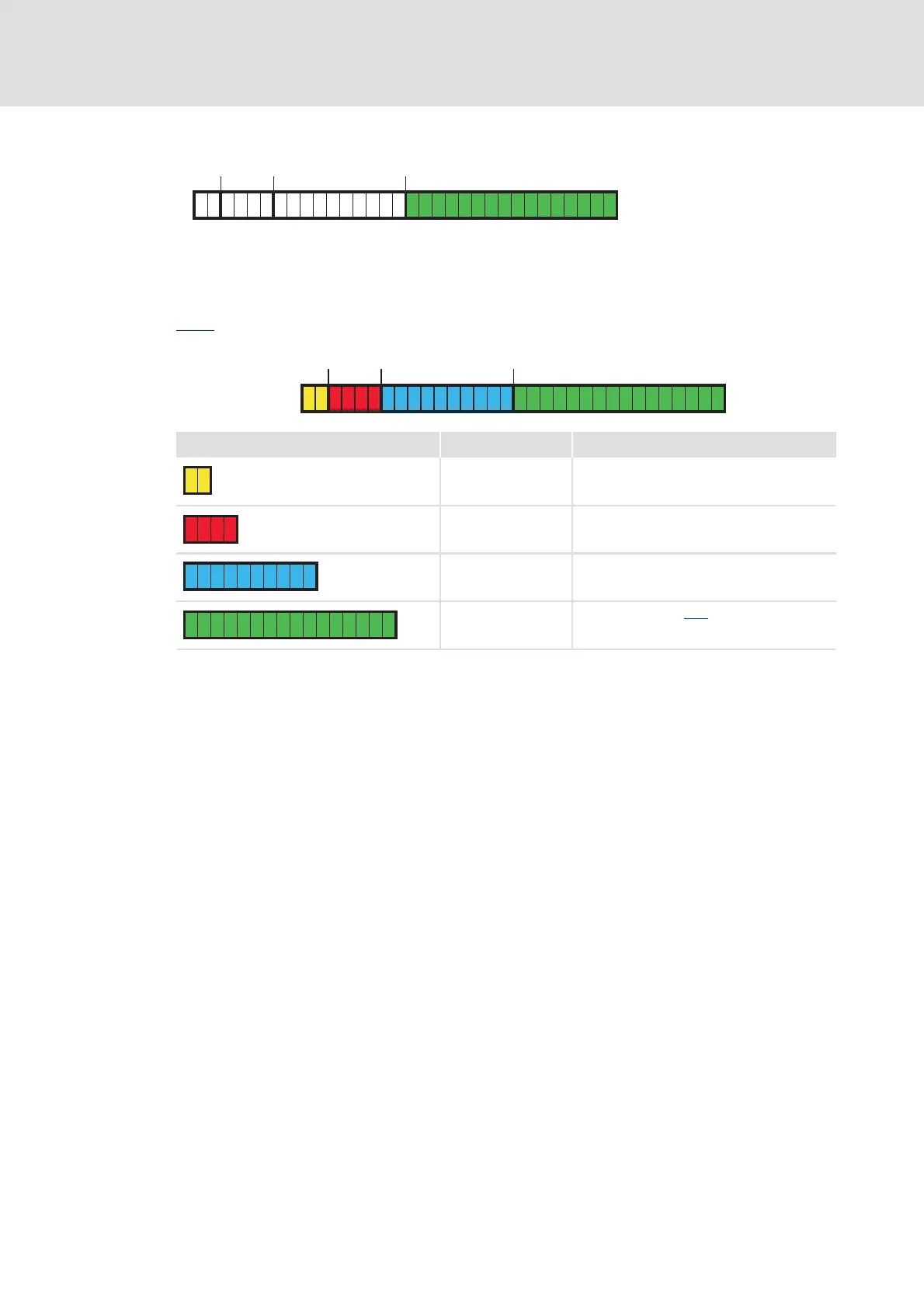

The bit-by-bit representation of the error number (divided into nibbles)
0000
⏐0100⏐0111⏐1011⏐0000⏐0000⏐0000⏐1011
corresponds to the hexadecimal value of "0x47B000B"
The error number "75169803" thus means:
In the "Motor management" subject area, an overcurrent has been detected. An "error
pulse inhibit" occurred as a response to the error which has to be acknowledged after
the error has been eliminated.
Bit
162526
31
015
29
30
Assignment Information Meaning in the example
Reserved Assigned with 0b00
Error type 1: Pulse inhibit fault
Subject area 123: Motor management
Error ID 16: "Short circuit" (OC1
)
Bit
162526
31
015
29
30
00000100011110110000000000001011
00
0001
0001111011
0000000000001011
