Drive control (DCTRL)
Device states
4.1.5 "SwitchedON" state
This is the drive's device state if the DC-bus voltage is applied and the controller is still
inhibited by the user (controller inhibit). The reason for the controller inhibit (CINH) is
displayed in C00158
.
The bus systems are running and the terminals and encoders are evaluated.
The monitoring modes are active.
The application is executable.
When the controller is enabled, the motor generates a torque.
4.1.6 "OperationEnabled" state
In this device state, the motor follows the setpoint defined in the application.
4.1.7 Status display "Warning"
This display may appear in parallel with all device states if a monitoring mode responds for
which the "Warning" or "Warning locked" error responses have been parameterised.

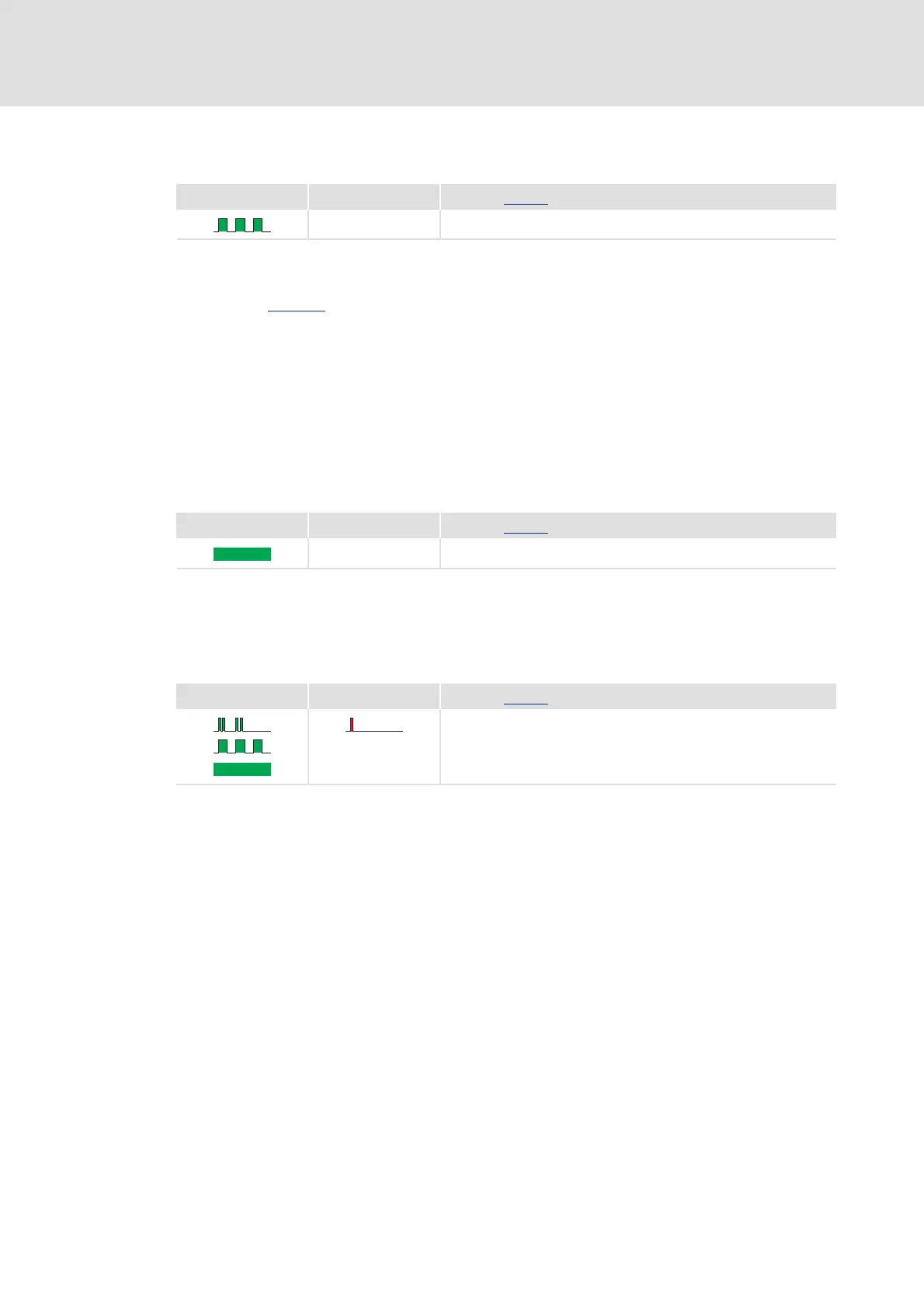

LED DRIVE READY LED DRIVE ERROR Display in C00137
OFF SwitchedON
LED DRIVE READY LED DRIVE ERROR Display in C00137
OFF OperationEnable
LED DRIVE READY LED DRIVE ERROR Display in C00137
Warning
