Drive control (DCTRL)
Device states
50 L Firmware 03.00 - DMS EN 5.0 - 07/2009
Auto-start option C00142 = 0: Auto restart is enabled after power-up
The following illustration shows the state changes for the auto-start option
C00142 = 0
as a function of the controller inhibit:

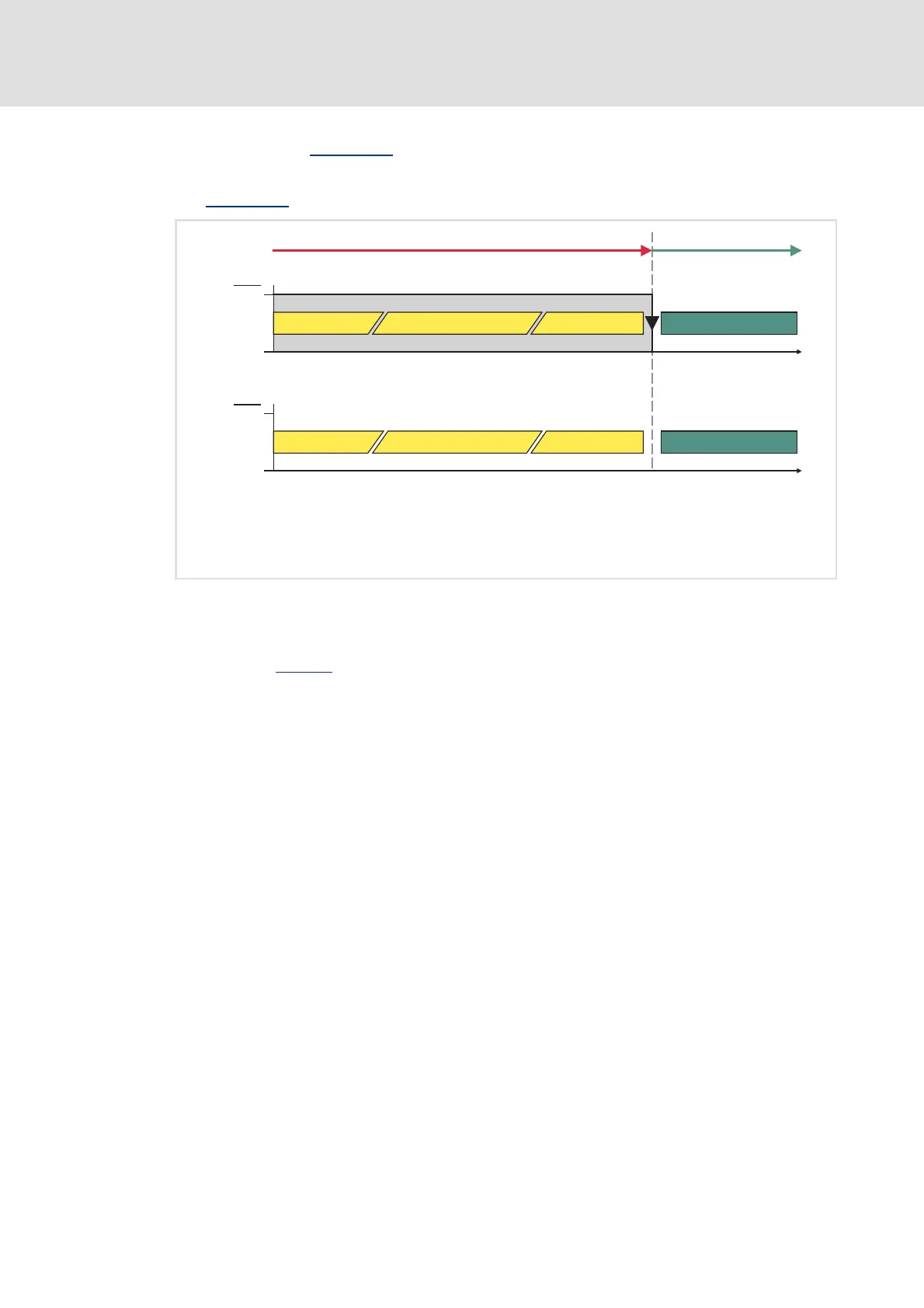

[4-4] State change when auto restart is enabled (C00142 = "0")
Tip!
Code C00142
can also be used to configure that the controller inhibits the auto-
start function if
• there is a "Trouble" error status or
• a "Fault" error status or
• an undervoltage has been detected
Controller pulses are inhibited
Controller pulses are enabled
n
o
With controller inhibit at power-up
Without controller inhibit during power-up
RFR
01
RFR
RFR
RFR
t
t
Initialisation Switched on OperationReady to switch on
OperationInitialisation Switched onReady to switch on
