Lenze L-force 8400 BaseLine D - Menu structure

8400 BaseLine D | Software Manual
Commissioning
Parameter setting and diagnosing directly at the controller
22 L Firmware 03.00 - DMS EN 5.0 - 07/2009

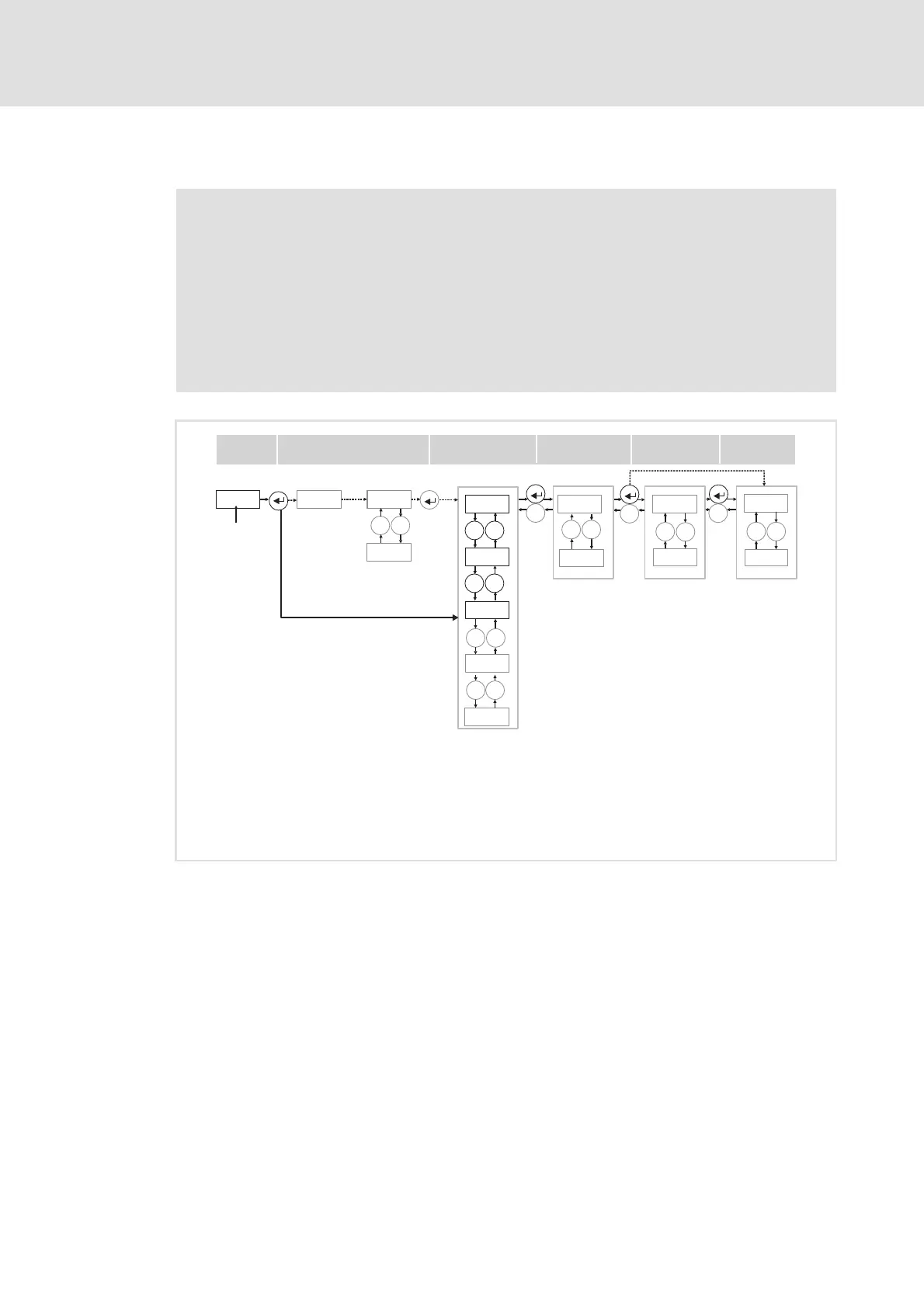

3.2.1 Menu structure
 Note!
• After switching on the controller, the internal keypad performs a quick self-
test. All segments of the display flash for approx. 3 seconds. After that the
display switches to the display which indicates the setpoint speed of the
motor. The internal keypad is now operational.
• When the password protection is activated and no password is input, only the
user menu is freely accessible. All other functions require the correct
password.
Menu
-0- , Access to all parameters selected by the user under C517.
-1- , Access to all drive parameters.
-2- , Access to parameters for fast commissioning with terminals.
-3- , Access to parameters for fast commissioning with internal keypad.
-4- , Access to motor control parameters.
-5- , Access to diagnostic parameters.
-0-
_
`

-1-
PASS
CAL
CAL/Stop
CAl/Err
bF
CL
FCL
Fst
dEC
br
PASS
5 sec.
0001
0000
_
`
....
....
_
`
....

`
....
_
`

....
`
_
_
_
`
....
_
`
-5-
......
-2-
C___
C_ _ _
c___
c_ _ _
Status
Password
Menu
Code Subcode
Action
