Product description
Communicating with the controller
Preconditions:
 The diagnostic adapter is connected to diagnostic interface X6 on the controller and to
a free USB port on the PC.
 The driver required for the diagnostic adapter is installed.
 The controller is supplied with mains power via X100.
 How to build up an online connection via the diagnostic adapter:

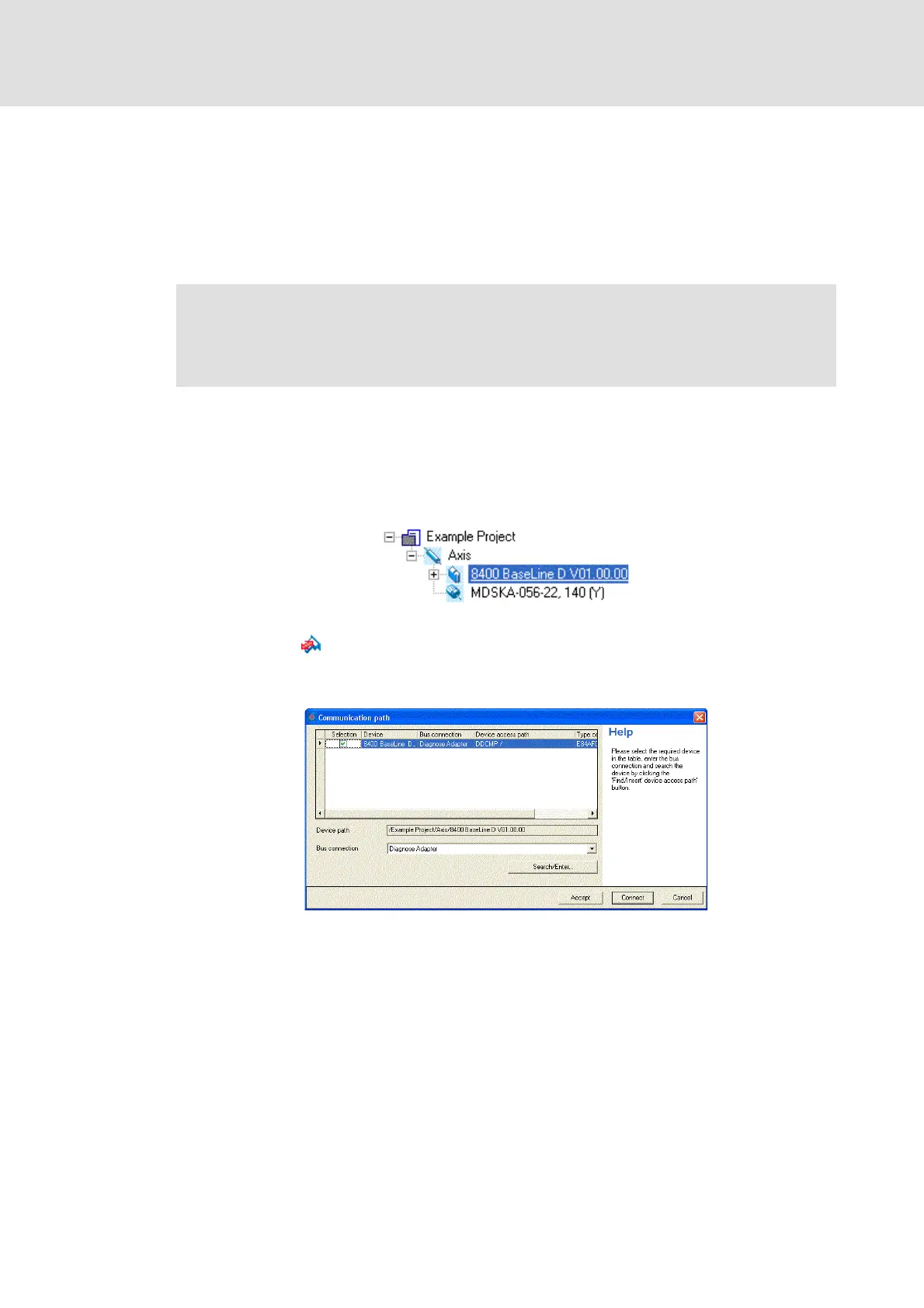

1. Select the 8400 BaseLine controller to which you want to build up an online
connection in the Project view of the »Engineer«:
2. Click the icon or select the command OnlineGo online.
• If no online connection has been configured for the selected controller so far,
the Device assignment offline devices dialog box will be displayed:
• The dialog box also appears if the online connection is built up via the command
OnlineGo online instead of using the toolbar icon.
3. Select the "Diagnostic adapter" entry from the Bus connection list field.
 Stop!
If you change parameters in the »Engineer« while the controller is connected
online, the changes will be directly accepted by the controller!
