Commissioning
Parameter setting and diagnosing directly at the controller
24 L Firmware 03.00 - DMS EN 5.0 - 07/2009

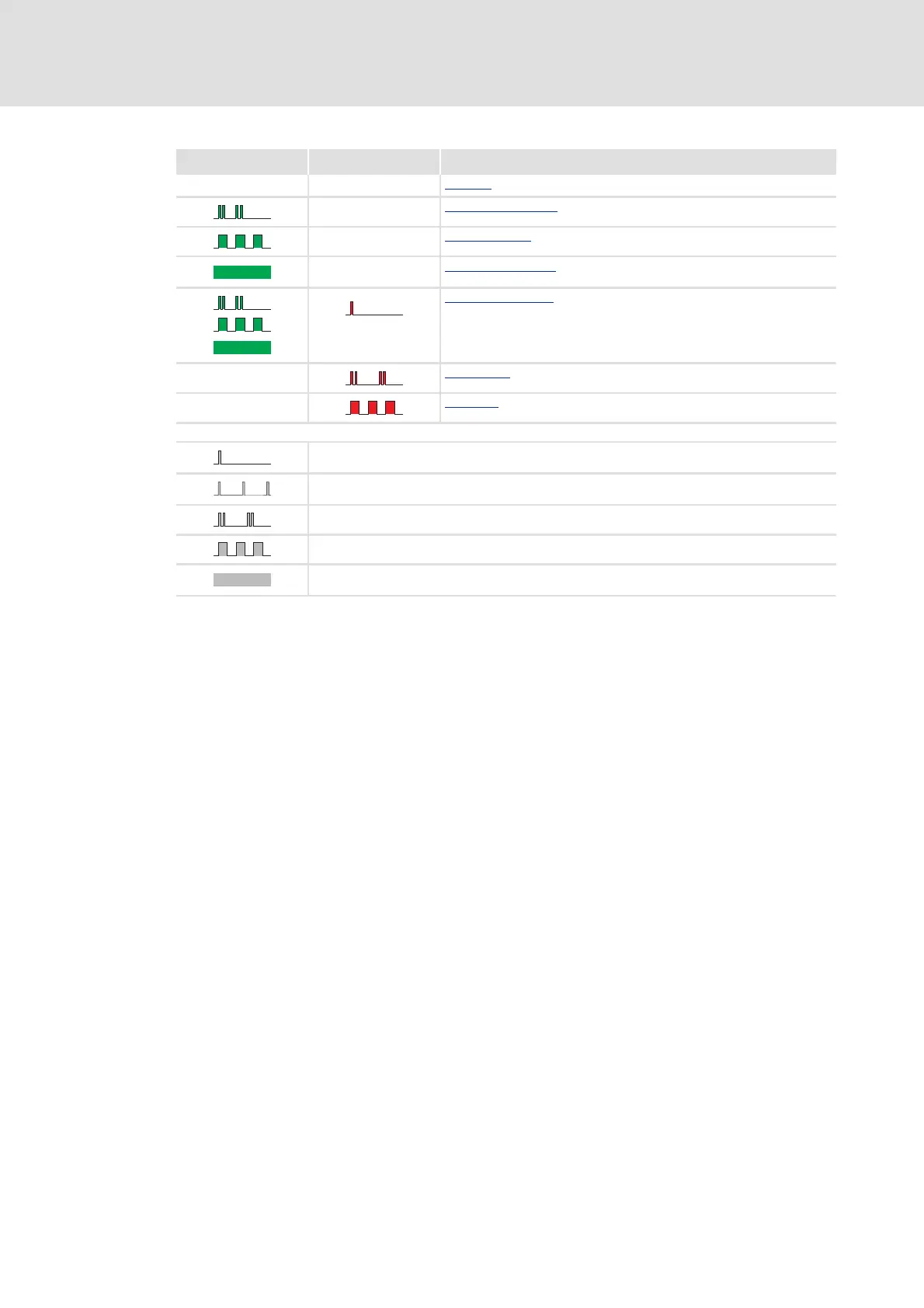

[3-1] Signalling of the LEDs "D" and "E"
LED E = DRV-RDY LED D = DRV-ERR Status
OFF OFF
"Init" state
OFF
"ReadyToSwitchON" state
OFF
"SwitchedON" state
OFF
"OperationEnabled" state
Status display "Warning"
The controller is ready to switch on, switched on or the operation is enabled and a warning
is indicated.
OFF "Trouble" state
OFF "Fault" state
The symbols used to represent the LED states have the following meanings:
LED flashes once approx. every three seconds (slow flash)
LED flashes once approx. every 1.25 seconds ( flash)
LED flashes twice approx. every 1.25 seconds (double flash)
LED blinks every second
LED is permanently on
