Leopard Catamarans 40 - Page 133

2-35 Drawings | 125 2-35 Drawings | 125

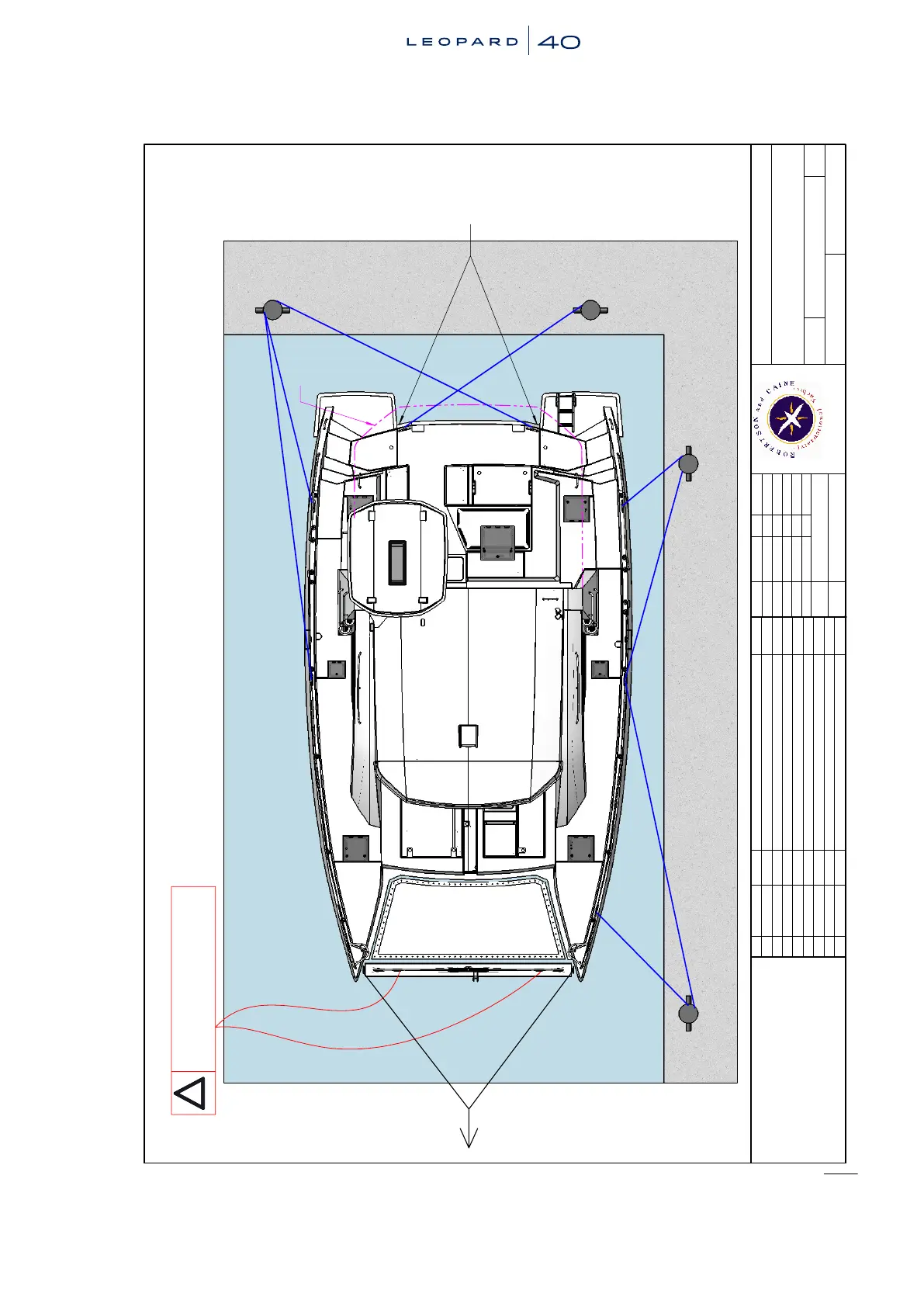

MOORING QUAY
AFT SPRING LINE
STERN LINE
BOW LINE
TOW USING BRIDLE
DINGHY
SECURING
U-BOLTS
(JUST UNDER
BRIDGEDECK)
Mai Hardtop Hidde
TRANSOM SPRING
FWD SPRING LINE
!
WARNING
DO NOT TOW, ANCHOR OR ATTACH HEAVY MOORING LINES TO THE CROSSBEAM CLEATS. THEY ARE FOR LIGHT USE ONLY. OVERLOADING COULD RESULT IN THE LOSS OF THE RIG.
REV
DATE
SIGN
MODIFICATION
EF.BOAT
A
202014

FIRST ISSUE
B1001
B1 TCF oorin Lines
 24, 2014
HL
A3
SHEET 1 OF 1
SCALE:1:50
DWG NO.
TITLE: REVISION:
MATERIAL:
DATE
SIGN
NAME
Q.A PROD: APPV'D: DRAWN: MODEL:
HL
Sep 24, 2014
P.O. Box 43341 Woodstock 7915 Tel: +27-21-4485666 Fax: +27-21-4485741
B1 TCF-003
ROBERTSON & CAINE (Pty) Ltd
A
Notes:
WEIGHT:
