Leopard Catamarans 40 - Page 138

130 | 2-35 Drawings130 | 2-35 Drawings
IE OF EC FRO ABOE

OCCUPANTS ON
TRAMPOLINE AREA
2
OCCUPANTS
SEATED ON TRANSOM
STEPS PORT  STBD
2
OCCUPANTS
SEATED ON
HELM SEAT
2
OCCUPANTS
SEATED ON STBD COCKPIT SEAT 
OCCUPANTS
SEATED AROUND COCKPIT TABLE

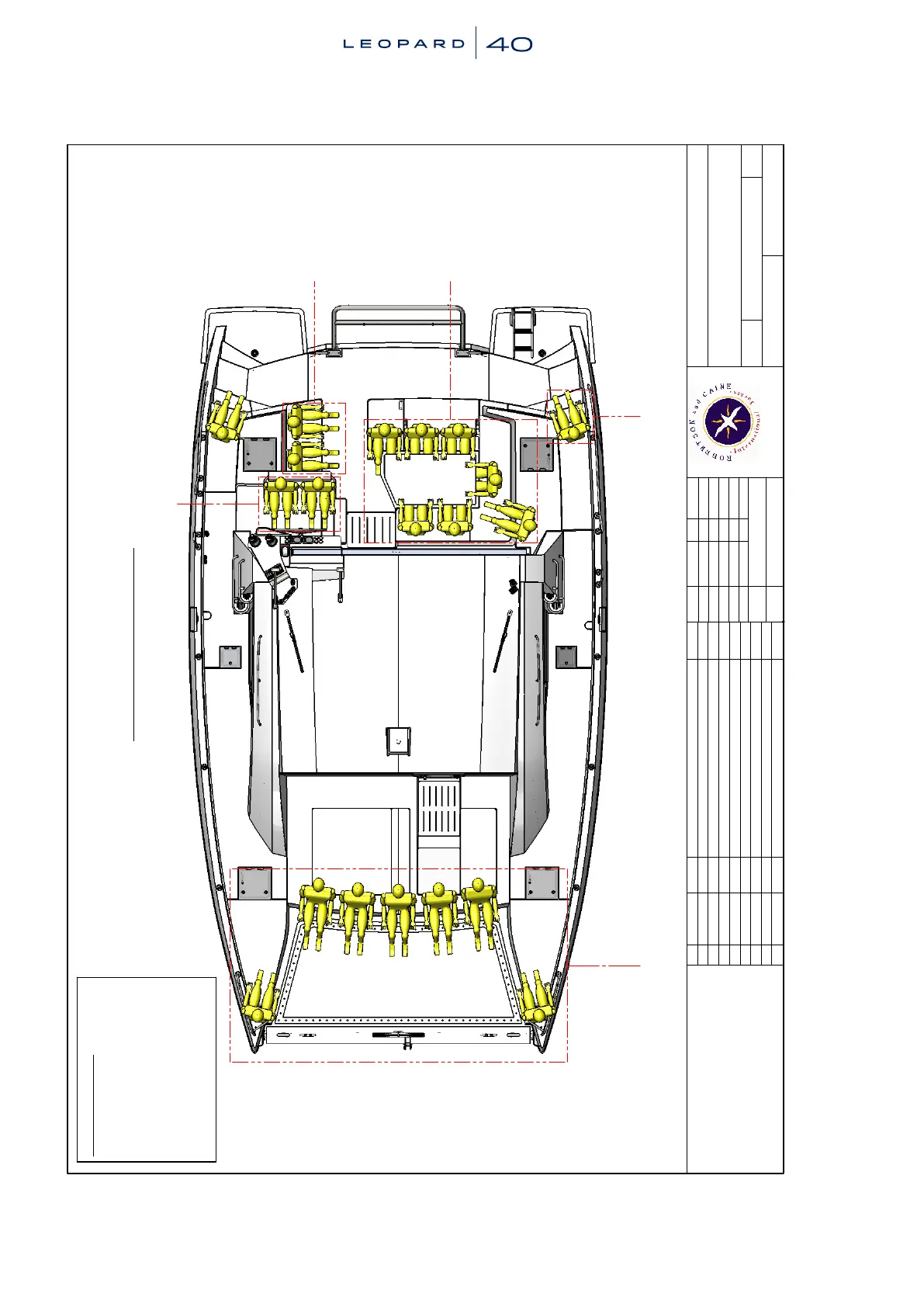

SEATING CAPACITY: CATEGORY A - 10 PERSON CATEGORY B - 12 PERSON CATEGORY C - 16 PERSON CATEGORY D - 20 PERSON IN COMPLIANCE WITH ISO 14946 SEATING ALLOWANCE: 400 WIDE  750 LONG RECOMMENDED WIDTH - 500
