Deck
to Hull
663
1
Locking Ring & Bolt
9
6
4
7
3
8
Keyway
Forward Facing
10
5
2
Thrust Washer
Rudder Area:
0.3573m^2
680
Stock
1190
Thrust Washer
10mm

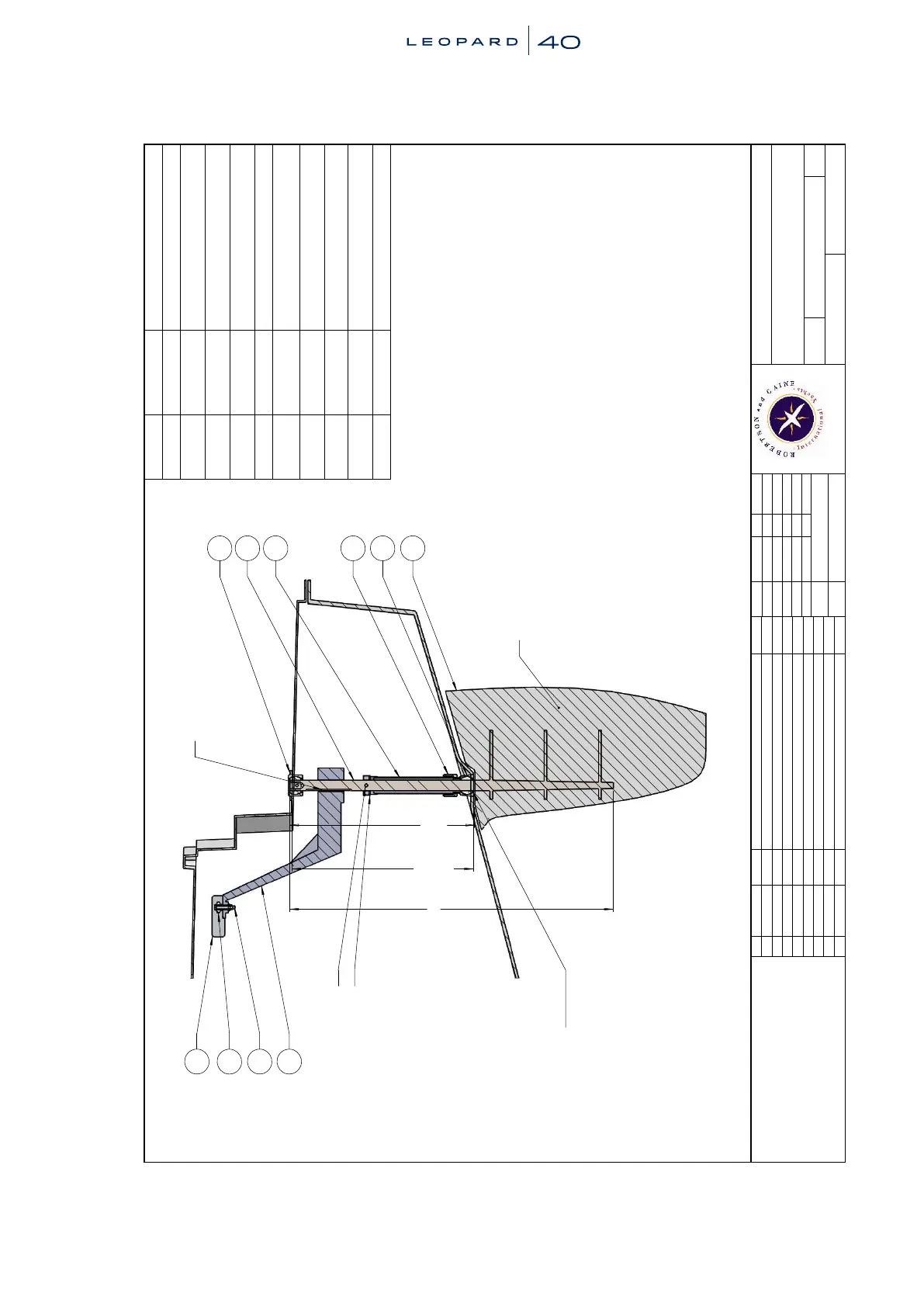

B1 Rudder Installation Detail
Oct 17, 2014
GS
A3
SHEET 1 OF 1
SCALE: NTS
DWG NO.
TITLE:
REVISION:
MATERIAL:
DATESIGNNAME
Q.A
PROD:
APPV'D:
DRAWN:
MODEL:
GS
Sep 25, 2014
Tel: +27-21-4485666
P.O. Box 43341 Woodstock 7915
Fax: +27-21-4485741
B1 SYS-009
ROBERTSON & CAINE (Pty) Ltd
A
Notes:
WEIGHT:
REV DATE SIGN MODIFICATION EF.BOAT
A20/10/2014 GSW FIRSTISSUE B1001
ITEM NO.
STOCK CODE
DESCRIPTION
1
TLR TBR ANDSB1
Tiller Tie-Bar Anodised B1
2 RD BGLW L40
Rudder Bearing Lower L40 JP3
#10.14.04
3 RD SLRNG L40
Rudder Seal Ring AL L40 (Lower
Bearing) JP3
4 RD BGUP L40
Rudder Bearing Upper L40 JP3
#10.13.04
5 B1 RUD ASSY
B1 Rudder
6 RD TUBE ALU N43
Rudder Tube AL. N43 W/Lipseal Plus
Retaining Ring JP3
7 RD STCK B1
Rudder Stock B1 C/W Key +3Pins
JP3
8 STRNG L89500048
AHFT10 Bolt in Pin Set 20mm
Lewmar #89500048
9 STRNG L82000356
Steering Rod End AHFT10 S/S
Lewmar #82000356
10 TLR ANDS B1 TILLER AL ALOCROM B1 - LEWMAR
SECTION OF PORT RUDDER
LOOKING INBOARD
