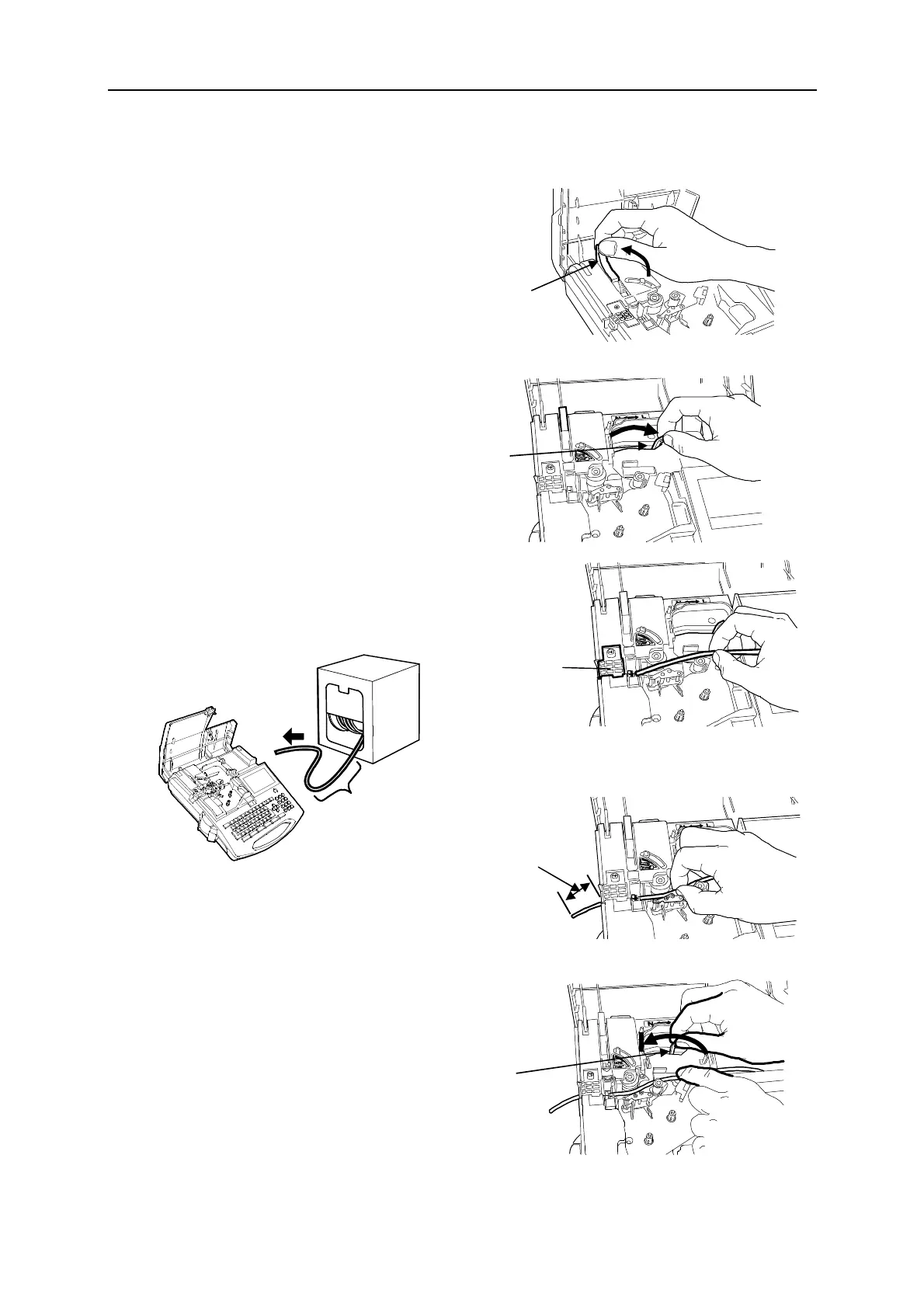

3-2 LOADING THE TUBES AND THE INK RIBBON CASE
1. Open the cassette cover.
2. Push the head release lever (green).
3. Slide the switching lever (silver) until it
stops.
4. a: Pass the tubes under the holding
plate.
b: Extrude the tip of the tubes
by 1～2cm from the machine.
5. Place and hold the tube on the “TUBE”
label and slide the “Switching lever” to
lock.
Holding plate
Pull out
Switching lever
Head release lever
Switching lever
1~2cm
