Starting up the device – webConfig tool
Leuze electronic GmbH + Co. KG BPS 307i 66
If the output is deactivated via the switch-off signal before the start-up delay lapses, only a brief pulse
appears at the output following the start-up delay.
• Debounce time
Parameter for setting the software debounce time for the switching input. The definition of a debounce
time extends the signal transition time accordingly.
If this parameter has the value 0, no debouncing takes place. Otherwise, the set value corresponds to
the time (in ms) that the input signal must be present and stable.
• Switch-off delay
This parameter specifies the duration of the switch-off delay (in ms).
Configuration of the resolution for position and speed measurement on the SSI interface (OUTPUT
tab, Preparation > SSI)

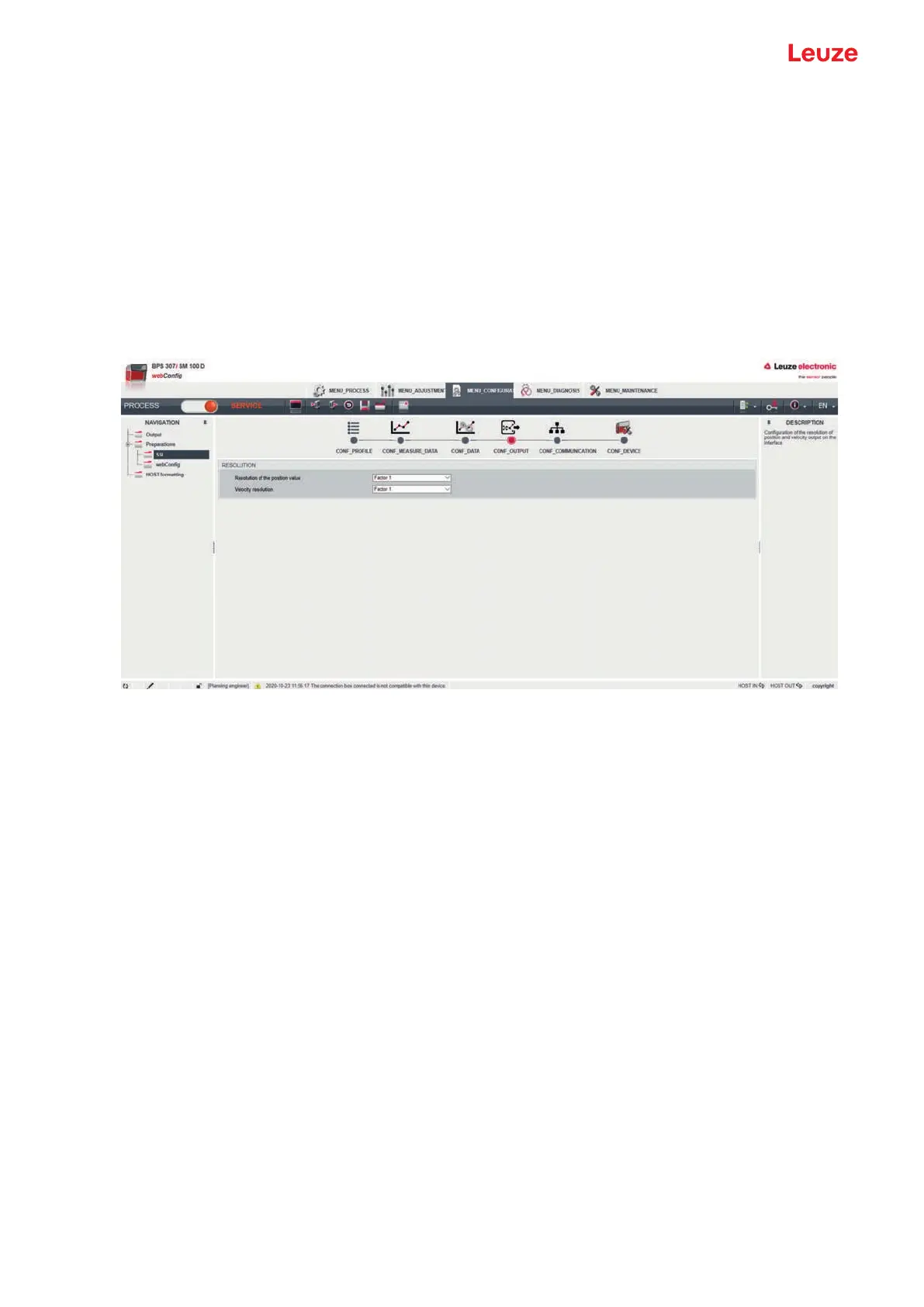

Fig.9.8: webConfig function OUTPUT > Preparation > SSI
• Position resolution
Resolution for the position value
• Speed resolution
Resolution for the speed value
Configuration of the bar code tape selection and tape value correction (MEASUREMENT DATA tab,
Bar code tape)
• Bar code tape with 30mm grid (BCBG30…) or 40mm grid (BCBG40…)
• Tape value correction
With this parameter, the deviation of the BCB from the correct millimeter scaling that arises from the
production process can be corrected.
Configuration of position detection (DATA PROCESSING tab, Position > Detection)
• Integration depth
Number of successive measurements that the BPS uses for position determination.
• Scaling free resolution
Free scaling of the output of the position values.
• Preset
A preset position value (preset value) is activated at an appropriate position.
• Offset
Output value=measurement value+offset
If a preset is active, this has priority over the offset.
