Mounting and installation
Leuze electronic BPS 8 37
TNT 35/7-24V
BCB mounting in horizontal curves
For horizontal curves, maintain a minimum bending radius of 300 mm ((see figure 6.4)).

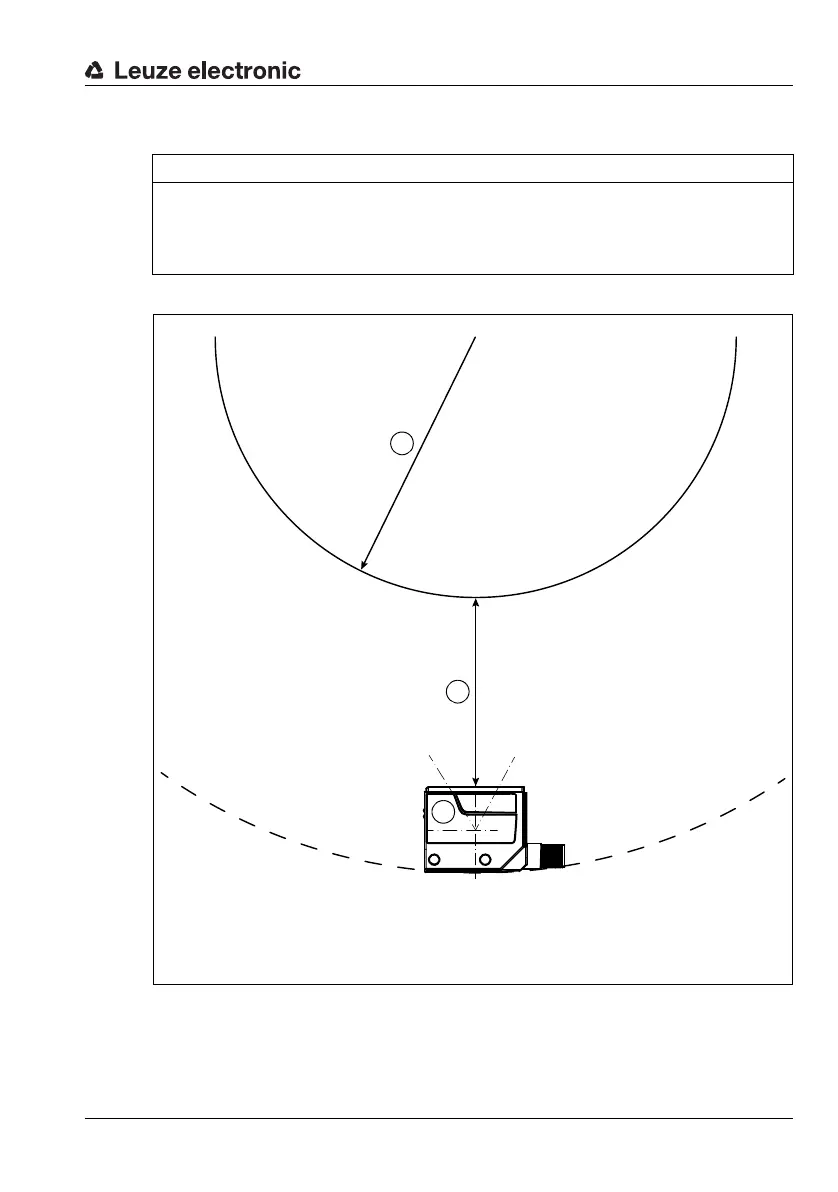

Figure 6.4: Mounting the bar code tape for use in horizontal curves
NOTE
Limited absolute measurement accuracy and reproducibility!
Installing the BCB in bends impairs the absolute precision of the BPS, because the
grid dimension can no longer be detected as 30 mm due to the optical distortion of
the bar code.
A BPS 8
B Reading distance
C Bar code tape radius, R
min.
= 300 mm
C
A
B
