Mounting and installation
Leuze electronic BPS 8 47
TNT 35/7-24V

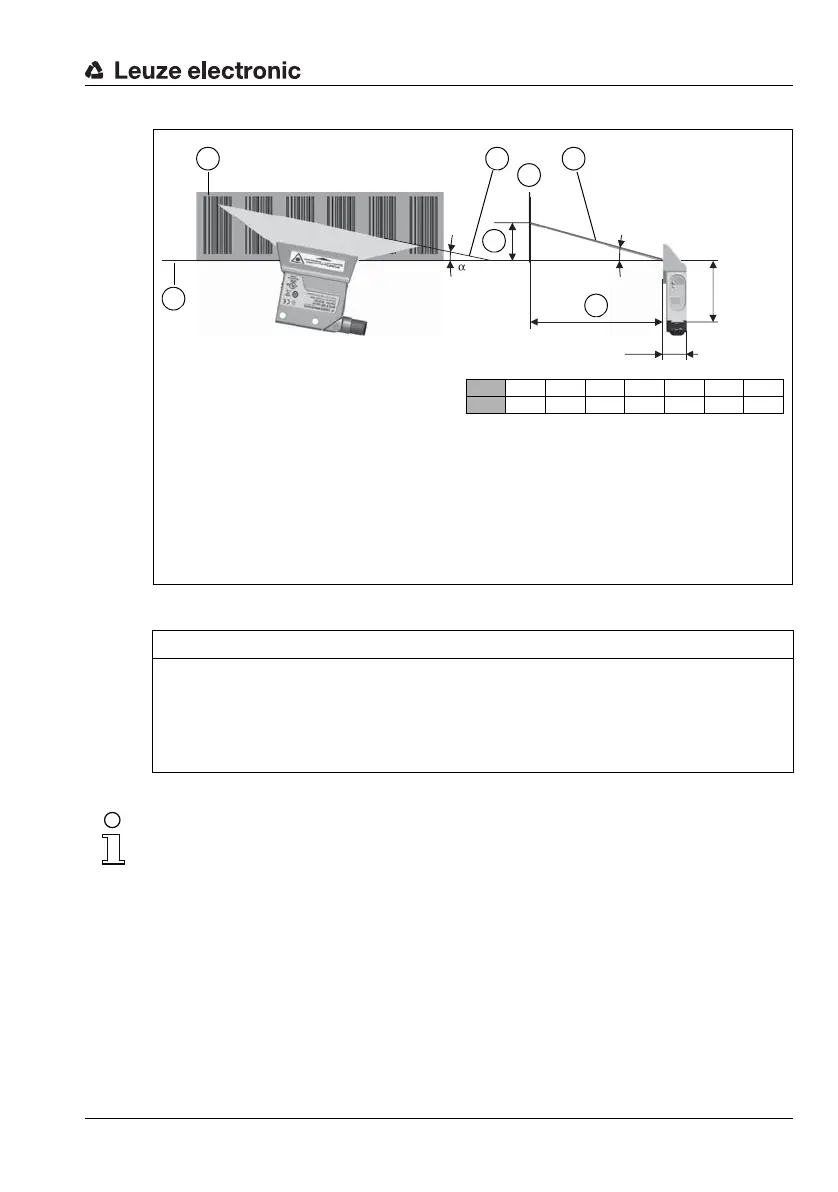

Figure 6.12: Beam exit and device arrangement of the BPS 8 SM 100
For further information on mounting the bar code tape, please refer to Chapter 6.1 on
Page 31.
NOTE
The BPS 8 has to be mounted in such a way that
• the scanning beam is incident on the bar code tape without interruption and as
described in Figure 6.11 and Figure 6.2.
• the BPS is guided parallel to the tape.
• the permitted working range is not exited.
16°
±
4°
17.4
51
BPS 8 SM 100
D 60 70 80 90 100 110 120
E 16 19 21 24 27 29 32
A
B
D
C C
A Bar code tape
B Reference plane
C Pitch of scanning beam:
= 10° for a tape height of 47mm
= 5° for a tape height of 30mm or 25mm
D Reading distance
E Height
E
A
