(a) Destination port: Theoretically it’s possible to set more than one destination port in a network.
Actually the port mirroring function will lower the network throughput, and therefore it’s
recommended to set “only one” destination port in a network.

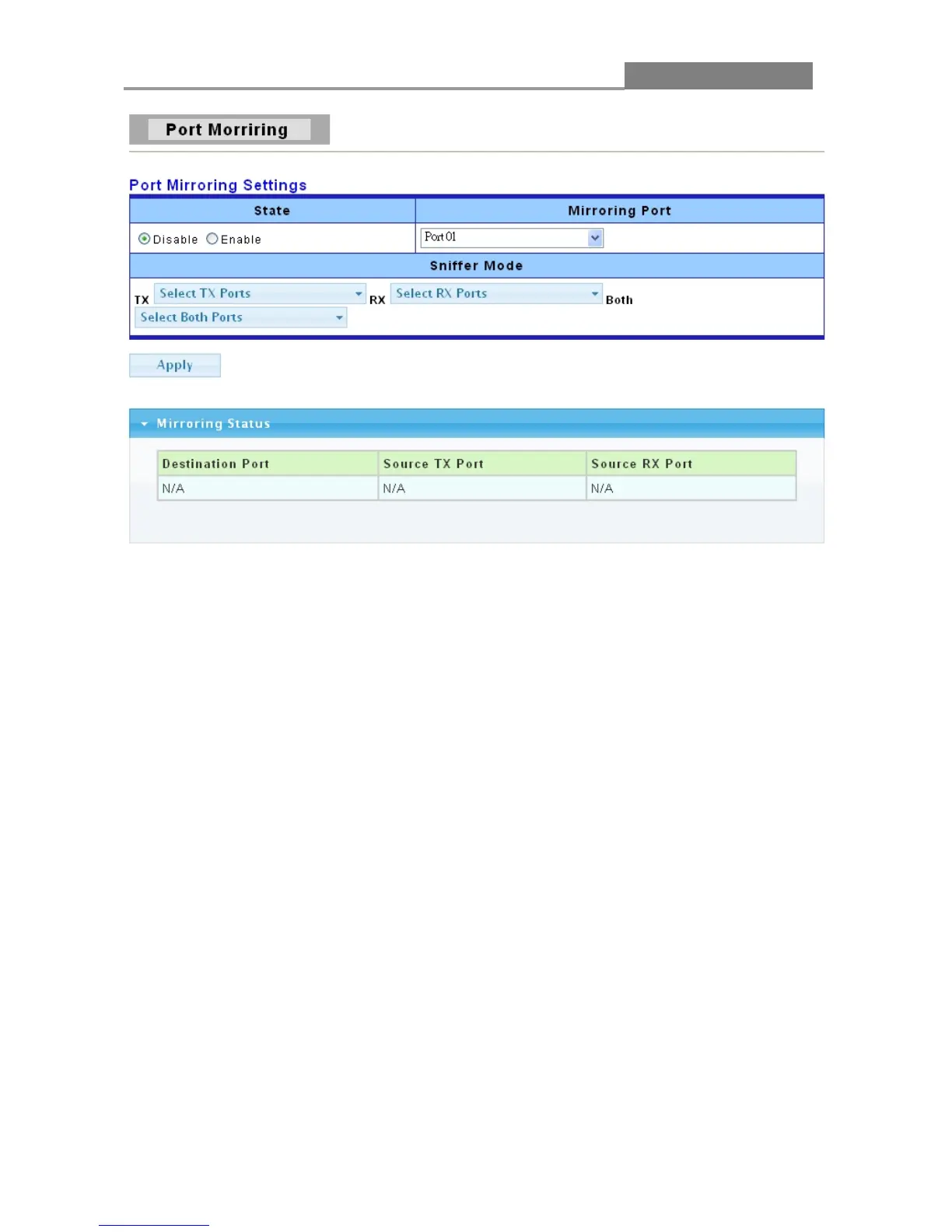

(b) Mirroring Port: (1)RX: means copy the incoming packets of the selected source port to the
selected destination port. (2)TX: means copy the outgoing packets of the selected source port to
the selected destination port. (3)Rx & Tx: means the combination of Rx and Tx.
(c) Source port: the traffic source that will be copied to the destination port.
3.3.3 Trunk
3.3.3.1 Trunk Group
Click Switching> Trunk > Trunk Group in the navigation panel to view the screen as shown
below.
