Chapter 9
| Class of Service
Layer 3/4 Priority Settings
– 243 –
Web Interface
To map CoS/CFI values to internal PHB/drop precedence:
1.
Click Traffic, Priority, CoS to DSCP.
2.
Select Configure from the Action list.
3.
Select a port.
4.
Set the PHB and drop precedence for any of the CoS/CFI combinations.
5.
Click Apply.

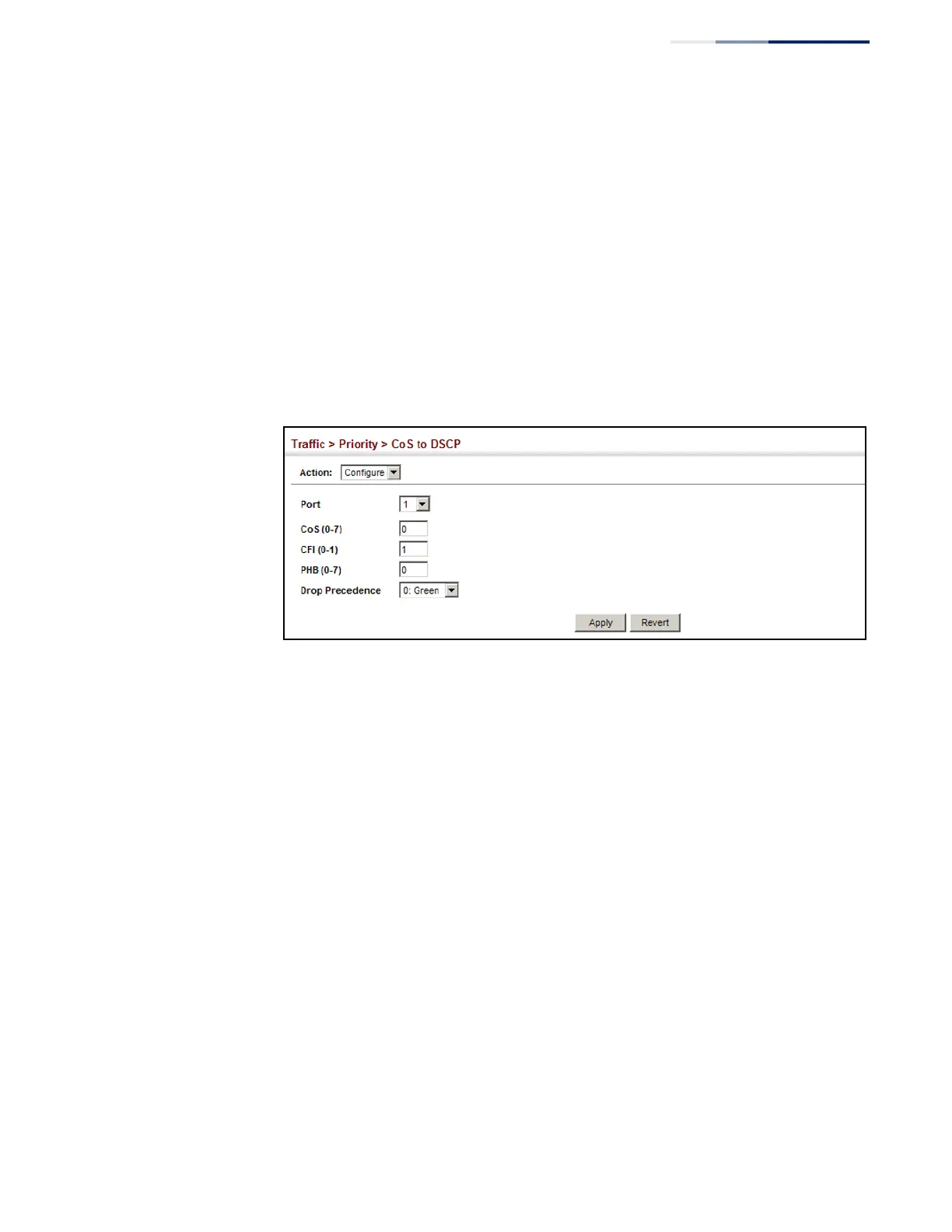

Figure 145: Configuring CoS to DSCP Internal Mapping
