Chapter 13
| Basic Administration Protocols
Remote Monitoring
– 443 –

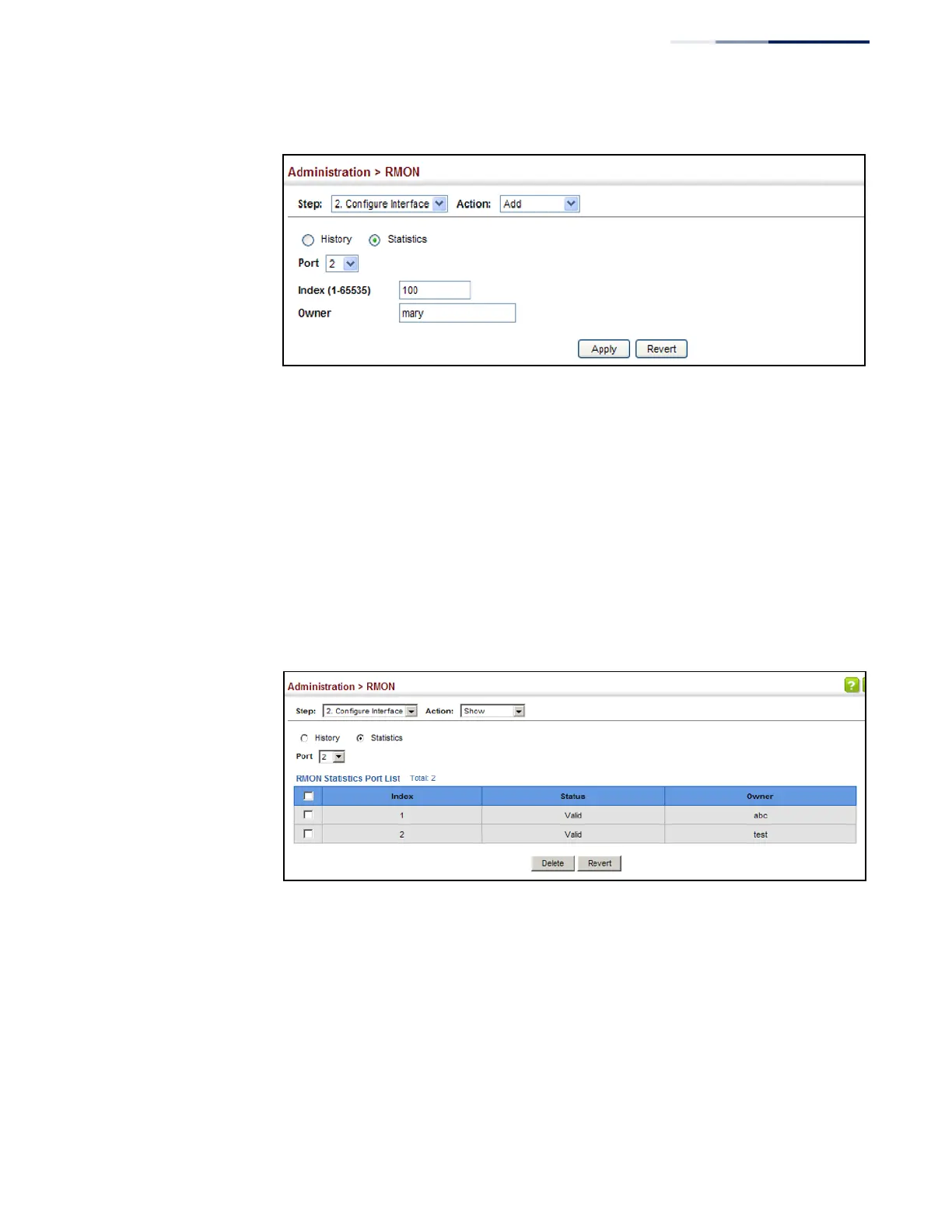

Figure 286: Configuring an RMON Statistical Sample
To show configured RMON statistical samples:
1.
Click Administration, RMON.
2.
Select Configure Interface from the Step list.
3.
Select Show from the Action list.
4.
Select a port from the list.
5.
Click Statistics.
Figure 287: Showing Configured RMON Statistical Samples
To show collected RMON statistical samples:
1.
Click Administration, RMON.
2.
Select Configure Interface from the Step list.
3.
Select Show Details from the Action list.
4.
Select a port from the list.
5.
Click Statistics.
