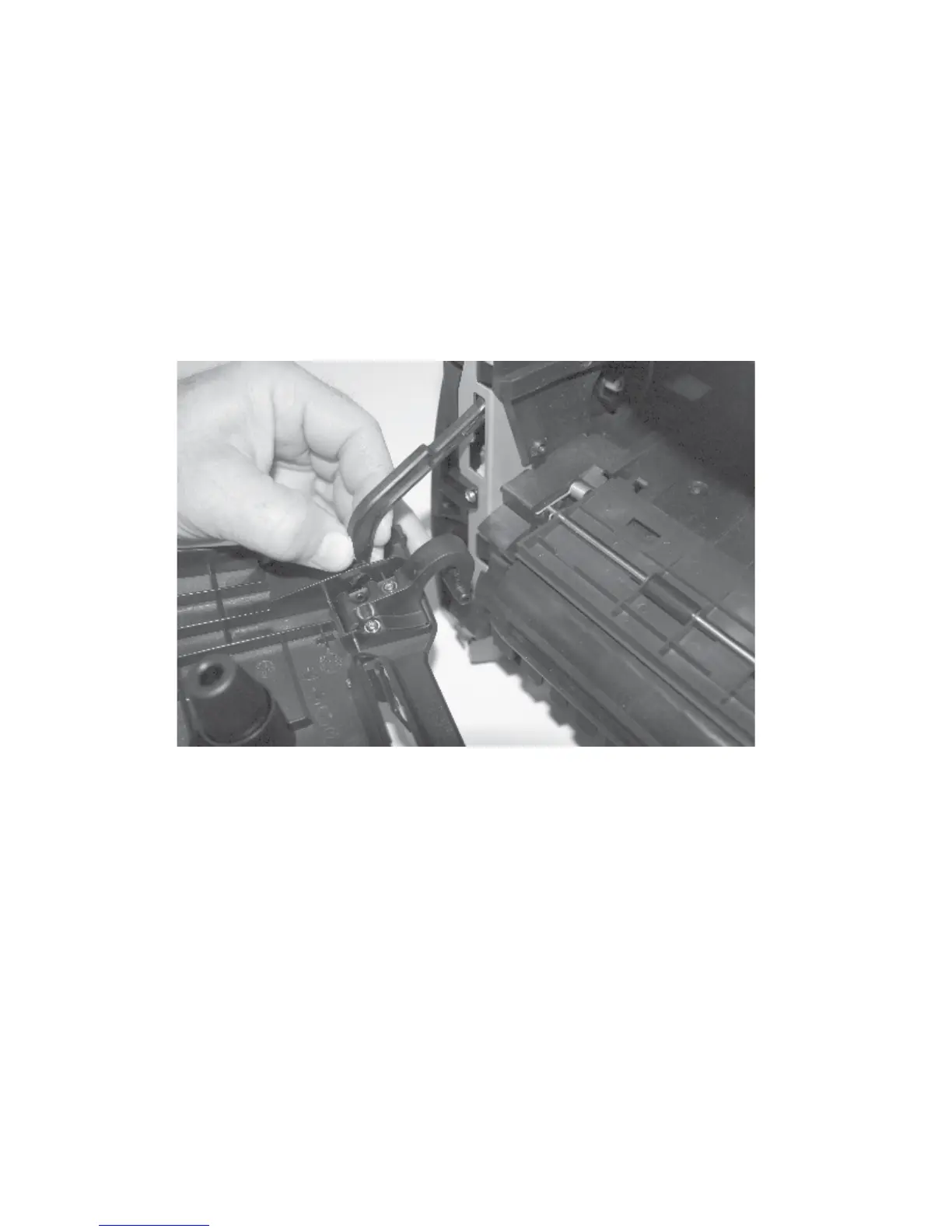

13. Force the left hinge out of its socket, and relax it above the socket.
14. Force the right hinge out of its socket, and lift it above the socket.
Warning: Do not pull the fuser link out of the printer any farther than
when the door is fully open. Otherwise, extending the link may dislodge
the cartridge coupler.
15. Carefully lift the cover free from the printer frame.
16. Use your left hand to hold the fuser link at the cover joint while rotating
the right side of the cover slightly away from the printer to disengage
the link.
17. Remove the front access cover.
