Lexmark MS310 Series Service Manual

Horizontal top contact connector
This FRU contains a horizontal top contact cable connector. Read the instructions before proceeding.
The horizontal top contact connector uses a back flip locking actuator to lock the ribbon cable into the Zero Insertion
Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift or close the two tabs located
on each end of the actuator. The two tabs should be moved simultaneously. Do not close the actuator from the
center of the actuator.
Removing a cable from the horizontal top contact connector
1

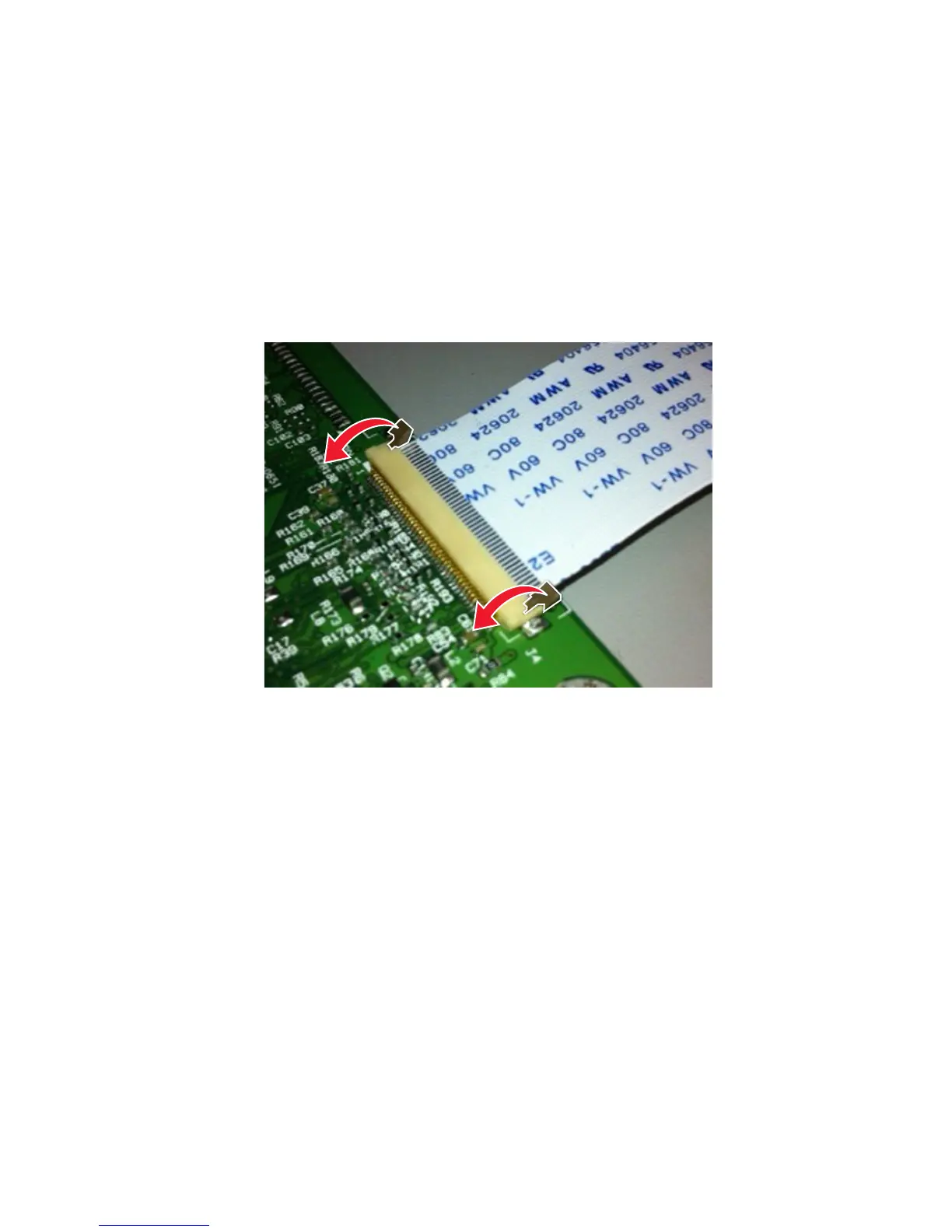

Place a finger at each end of the locking actuator, and then gently lift the actuator to the unlocked position.
2 Slide the cable out of the connector.
4514-220, -230
Repair information
130

Lexmark MS310 Series Specifications

General

Print Technology	Monochrome Laser
Processor Speed	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Recommended Monthly Page Volume	500 - 2, 500 pages
Connectivity	USB 2.0, Ethernet
First Page Out Time	As fast as 6.5 seconds
Print Resolution	1200 x 1200 dpi
Memory	128 MB
Duplex Printing	Standard
Input Capacity	250 sheets
Output Capacity	150 pages
Media Types Supported	Plain paper, envelopes, card stock, labels
Media Sizes	Letter, Legal, Executive, Statement, Oficio, A4, A5, A6, B5 (JIS), B6 (JIS), Envelope (No. 10, Monarch, DL, C5)
Operating Systems Supported	Windows, macOS, Linux
Dimensions	399 mm
