Lexmark MS310 Series - Main Drive Gearbox Removal

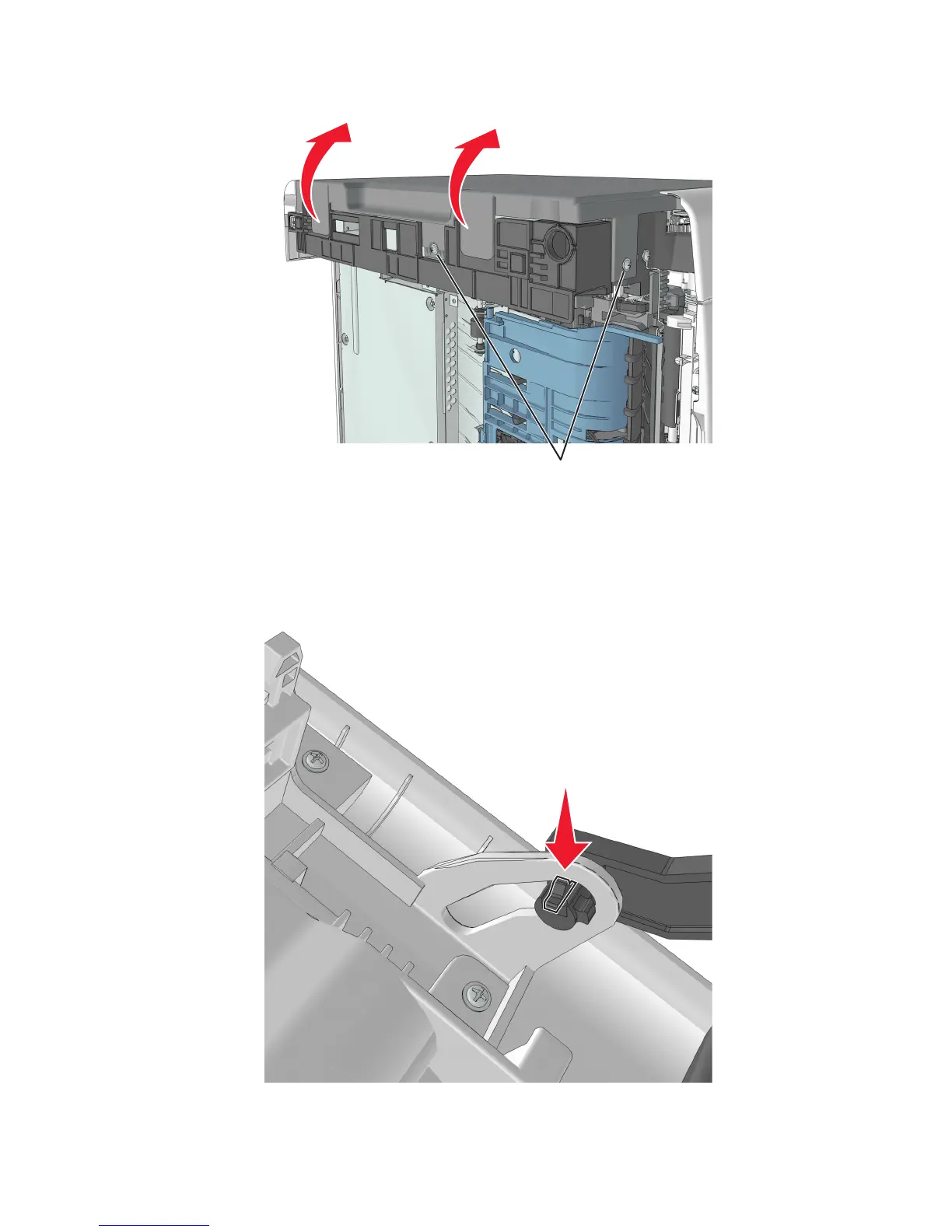

4 Release the latches, and swing the left cover upward to remove.
A
Main drive gearbox removal
1 Remove the left cover. See “Left cover removal” on page 144.
2 Squeeze the latch, and then detach the link from the front door.
4514-220, -230
Repair information
145
