Lexmark MS310 Series Service Manual

Printhead assembly mechanical adjustment
A printhead needs to be correctly positioned after it has been removed. Use a pencil to mark the screw locations of
the old printhead on the metal frame. Align the new printhead relative to the location of the old printhead.

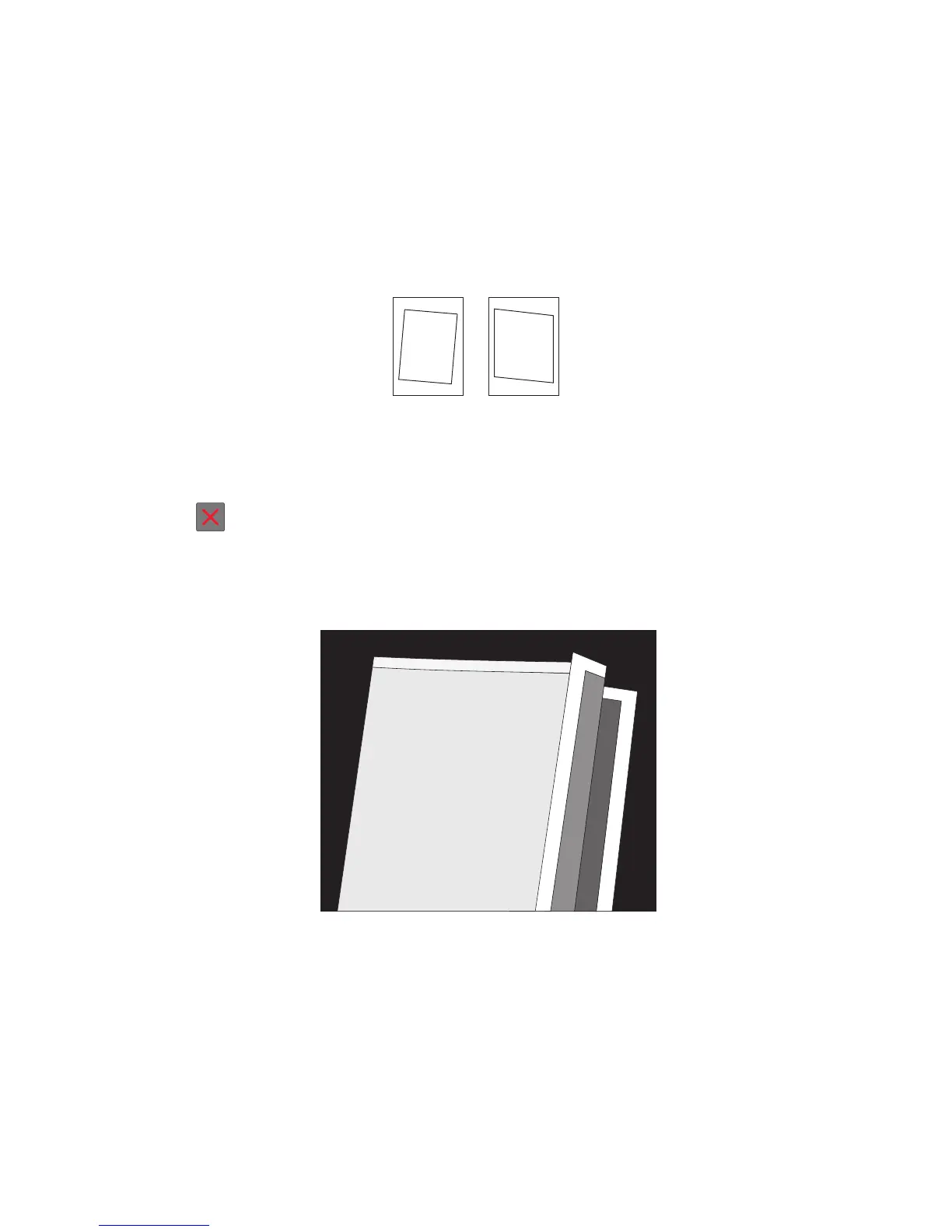

Note: Skew is caused by a sheet being fed through the printer while misaligned. The entire image is rotated relative
to the sheet edges. However, a mechanically misaligned printhead causes the horizontal lines to appear skewed,
while the vertical lines remain parallel to the vertical edges. There are no adjustments for skew. Check the pick tires
for wear, the paper path for obstructions, the fuser for proper setting, and the tray paper guides for fit to the media.
Paper feed
skew
Printhead
misalignment
To adjust the printhead:
1 POR into the Diagnostics menu, and print a Quick test page:
Diagnostics Menu > Cont Prt Simplex Tray 1
Note: Press
immediately after the paper picks to avoid printing more pages.
2 Fold the printed test page on the left side so that a few millimeters of grid lines wrap around the outside of the
fold.
3 Fold a second vertical fold near the center so that the left side top edge aligns with the right side top edge.
4514-220, -230
Repair information
143

Lexmark MS310 Series Specifications

General

Print Technology	Monochrome Laser
Processor Speed	800 MHz
Monthly Duty Cycle	Up to 50, 000 pages
Recommended Monthly Page Volume	500 - 2, 500 pages
Connectivity	USB 2.0, Ethernet
First Page Out Time	As fast as 6.5 seconds
Print Resolution	1200 x 1200 dpi
Memory	128 MB
Duplex Printing	Standard
Input Capacity	250 sheets
Output Capacity	150 pages
Media Types Supported	Plain paper, envelopes, card stock, labels
Media Sizes	Letter, Legal, Executive, Statement, Oficio, A4, A5, A6, B5 (JIS), B6 (JIS), Envelope (No. 10, Monarch, DL, C5)
Operating Systems Supported	Windows, macOS, Linux
Dimensions	399 mm
