4. Operating AC Smart

Installation/Owner's Manual

4-119

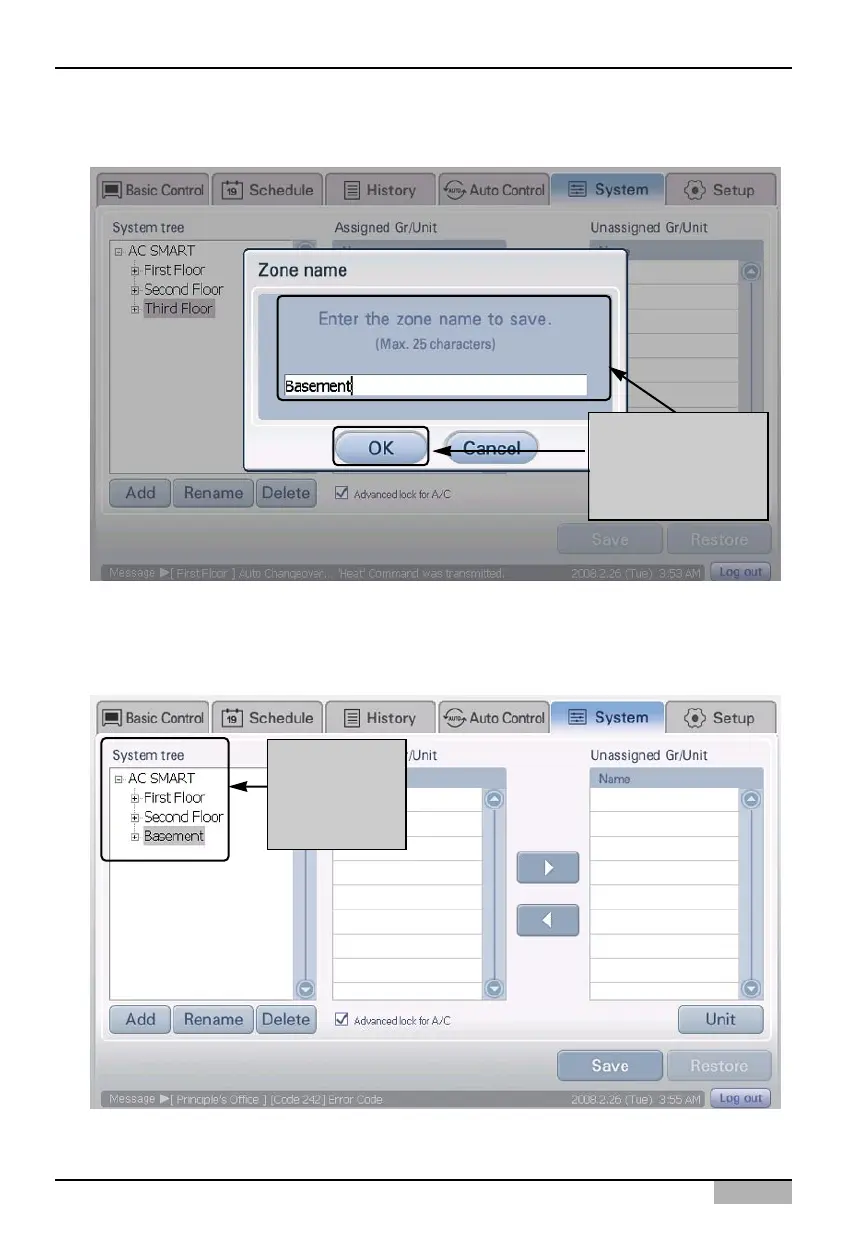

3. After renaming the zone, click on the [OK] button.

4. Check whether the applicable zone has been renamed in 'System tree'.

After renaming the

zone click on [OK]

button

Check whether

zone has been

renamed
