C-DiGit User Manual B-1
B
Windows XP Installation
Instructions
Note that you must have adminstrator rights to install Image Studio.
1. Place Image Studio installation CD into drive.
a. If installation does not start immediately, browse the Desktop or CD and
double-click on Win Image Studio Digits Installer_3.1.x.exe.
b. Click Agree to accept the license agreement.
c. Follow the instructions to install the Image Studio software.

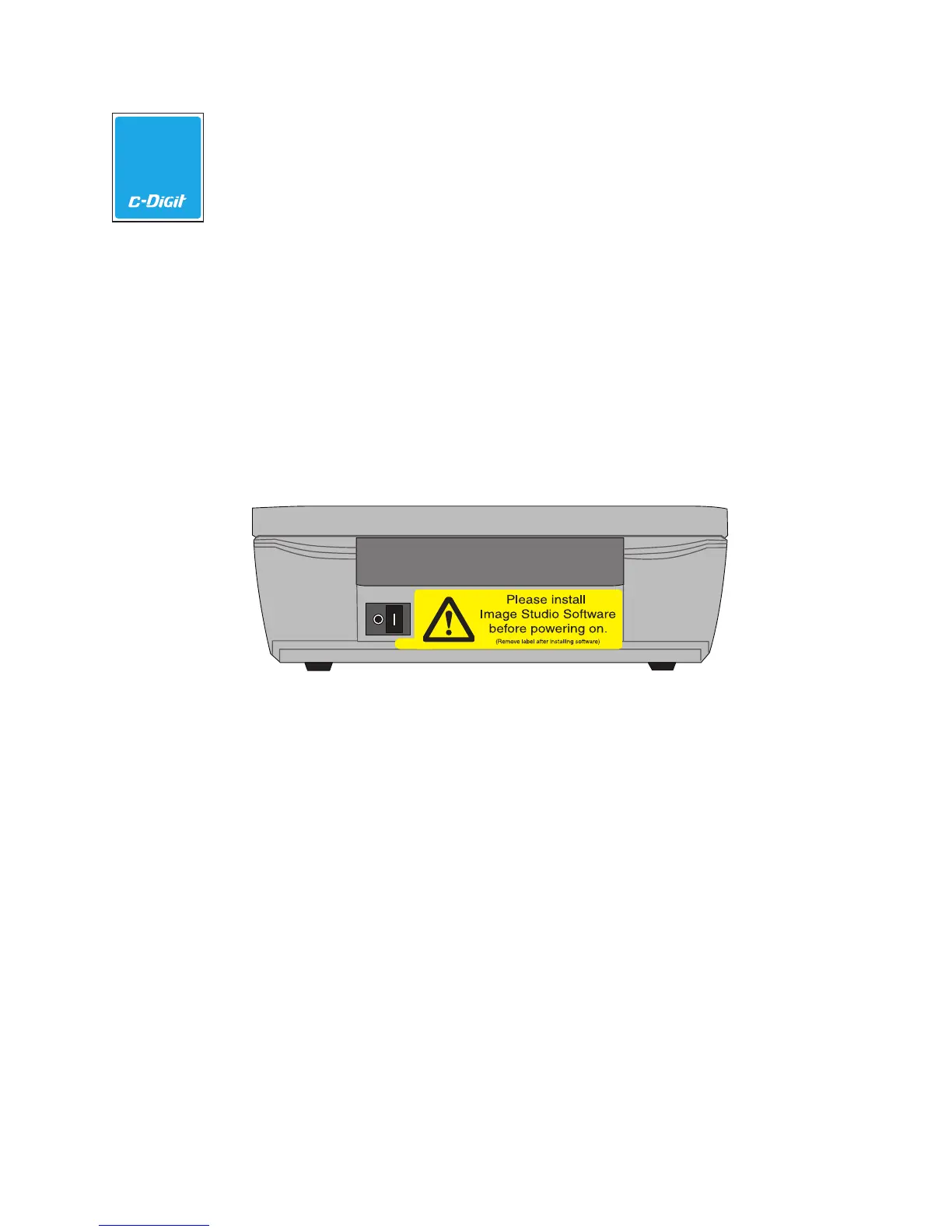

2. Remove warning label from the back panel
Remove the yellow warning label on the C-DiGit Blot Scanner back panel
(below).
LAN
USB
Amphenol
12VDC 1A
3. Install the Power Supply Plug
There are two power supplies available for use with the C-DiGit; you will have
received either the Cincon (p/n 591-13058) or SL Power Electronics (p/n 591-
13032) power supply. Each of these power supplies is a universal 100-240VAC
input, 12VDC power output supply with interchangeable AC plugs for use in
North America and Japan, Australia, Europe, and the United Kingdom. Install
the appropriate plug on the power supply as shown below. NOTE: The SL
Power Electronics supply has the North American/Japanese plug pre-installed.
For use in other countries, remove this plug and replace with the appropriate
plug.
