Operate Counter
248083387-1 Rev 10 6-39

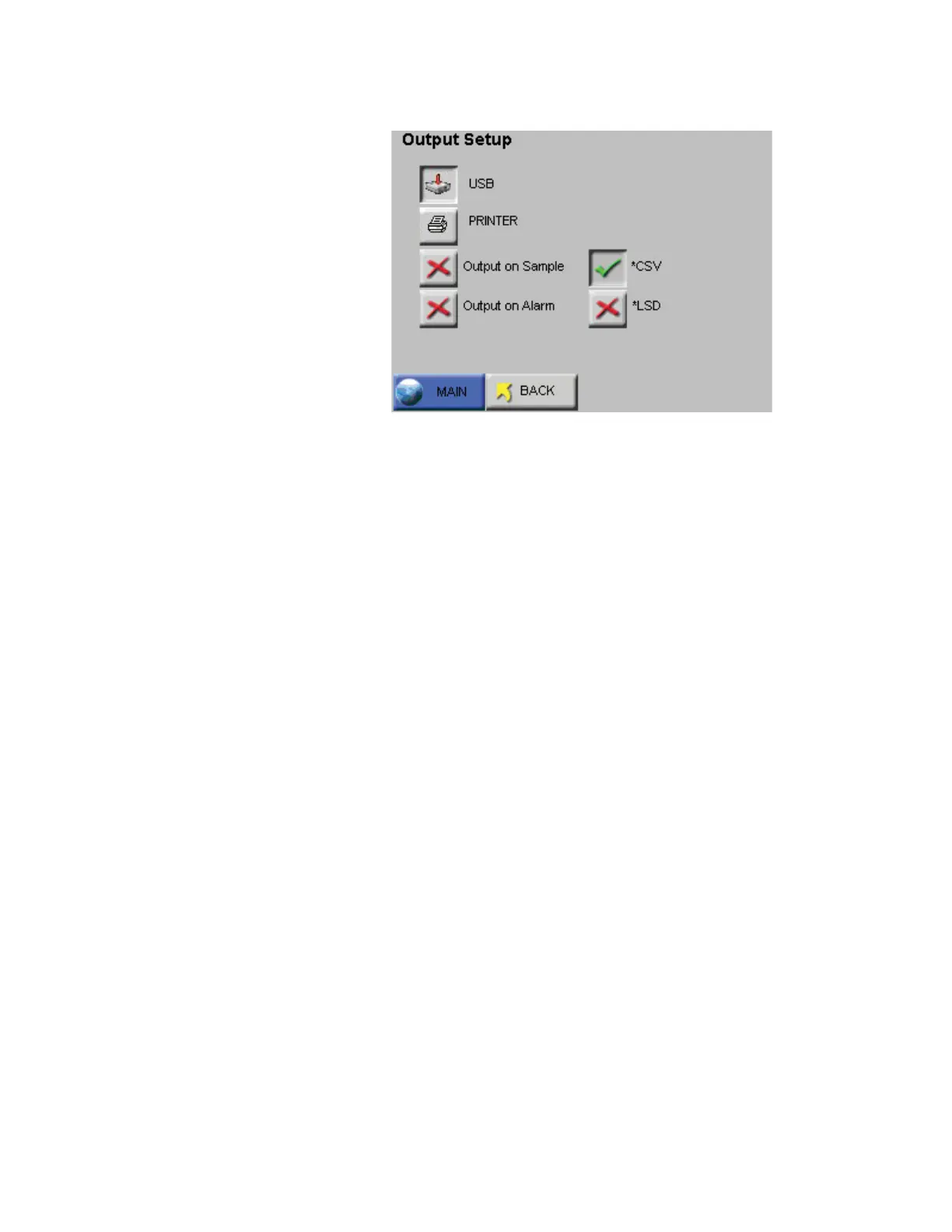

Figure 6-50 Output Setup Screen, USB Settings
Each Dataxxxx.csv file is managed separately and data is added to the
file while the flash drive is attached. When the drive is removed, the
next insertion updates its index file and a new file is started. The next
increment of the “xxxx” file series is added. These ’csv’ text files can
be read on any system.
LSD files are securely encoded data files that can be downloaded from
the SOLAIR onto a USB flash drive. The files include the following
information:
• Model Name
• Serial Number
• Data Records including:
• Time Stamp
•Status
• Location
• Location Name
• Sample Time
• Particle Channel Data
• Analog Data
LSD files require LMS Express to decode the information. LMS
Express provides a new feature that allows the data from an LSD file to
be imported into LMS Express. See Figure 6-51.
