Lighthouse SOLAIR 3350, 5350 Gen E Operating Manual
6-50 248083387-1 Rev 10

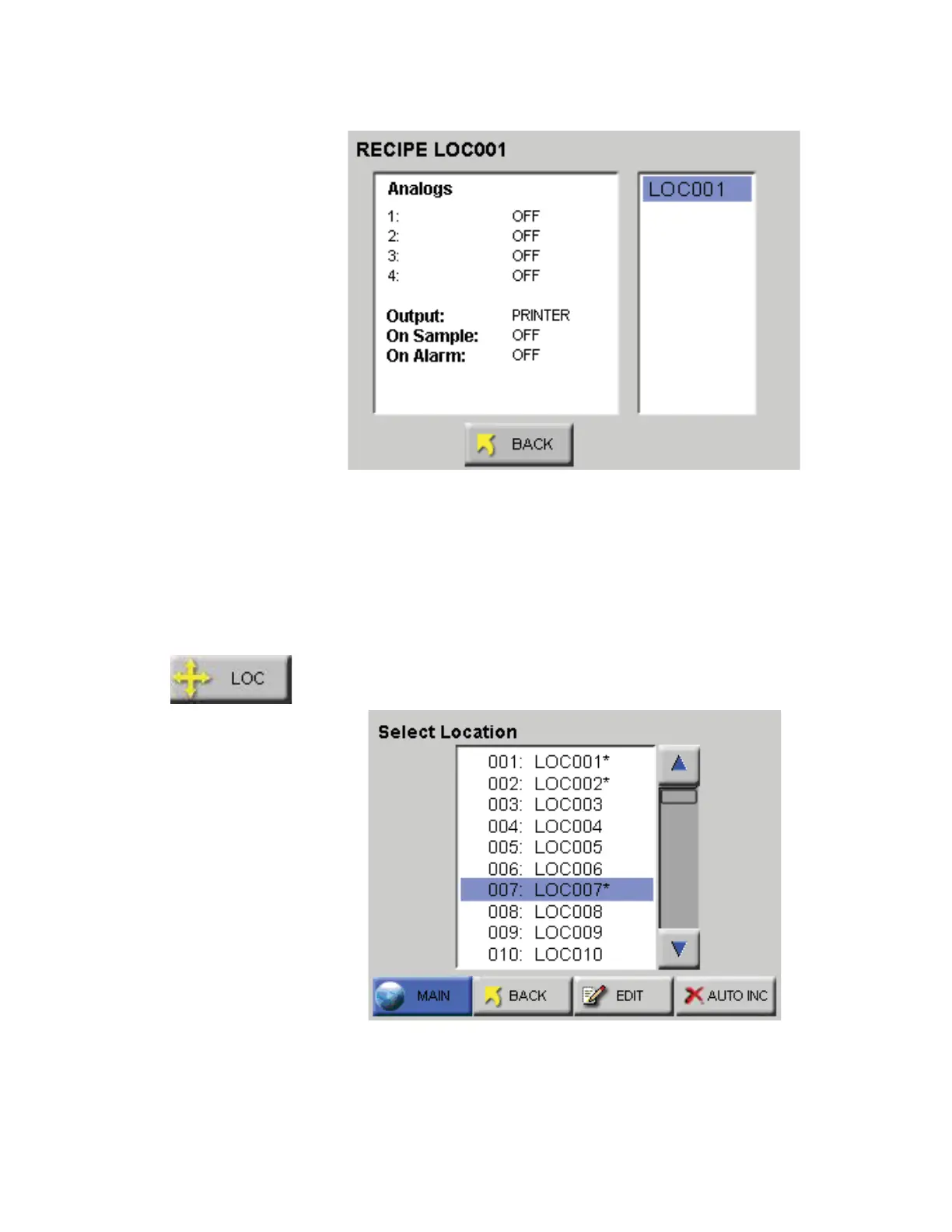

Figure 6-67 Recipe - Analog & Output Settings
LOCATION The SOLAIR allows up to 200 different locations and associated
alphanumeric labels.
Press the LOC button on the Configuration screen to display the Select
Location screen as shown in Figure 6-68.
Figure 6-68 LOCATION Setup Screen
On the Select Location screen, the Location name can be selected using
the UP and DOWN arrows or by touching the location name on the
