Lighthouse SOLAIR 3350, 5350 Gen E Operating Manual
6-14 248083387-1 Rev 10

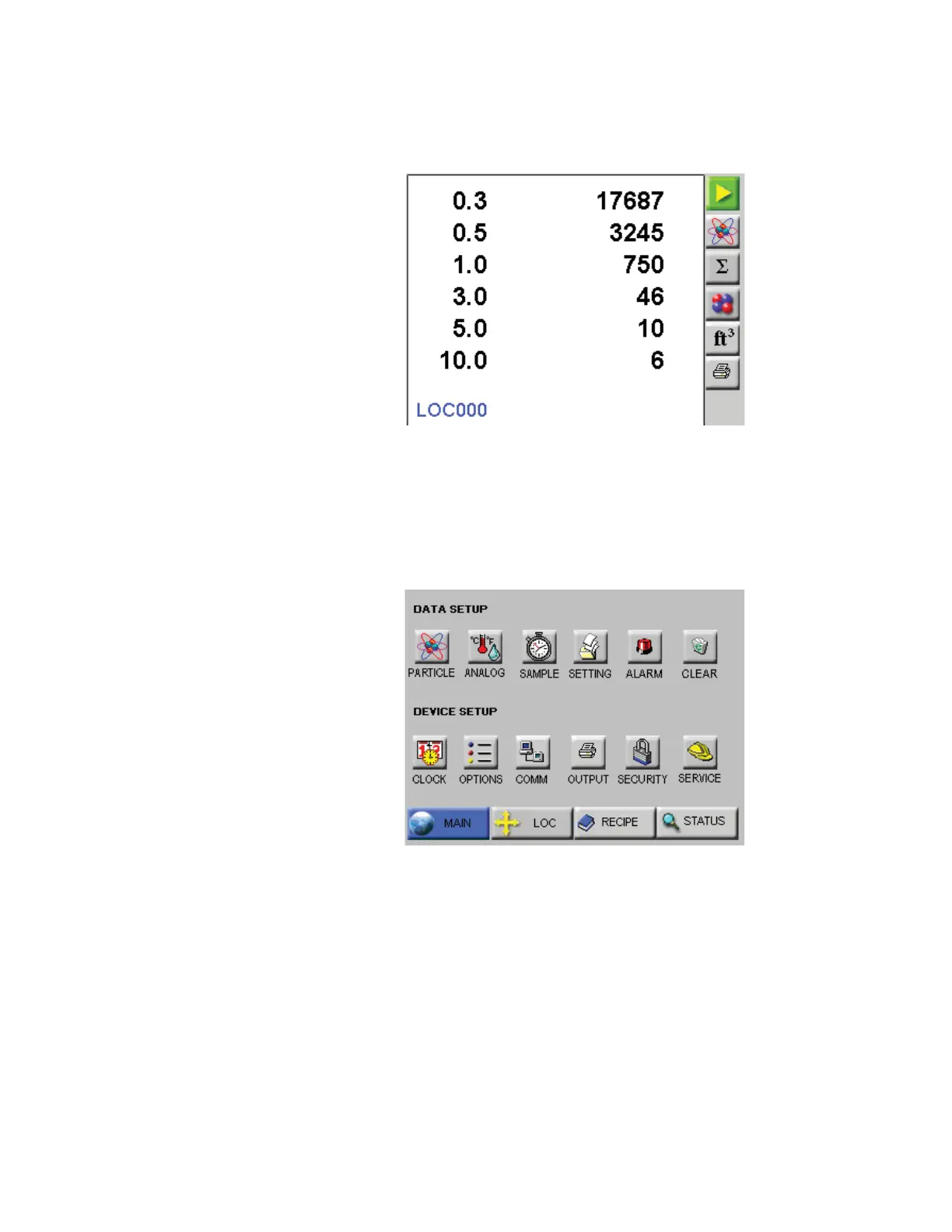

Press the MAIN button, then tap in the data area to go into the Zoomed
View. See Figure 6-15.
Figure 6-15 Zoomed View with Only Cumulative Data
Only one column of data is displayed.
CONFIG
(Configuration)
Screen
Press CONFIG on the MAIN screen to display the Configuration
screen as shown in Figure 6-16.
Figure 6-16 Configuration Screen
Data Setup includes buttons to enable/disable particle channels,
configure analog channels, set sample record parameters, sample
settings, thresholds, enable/disable alarms, and clear the data buffer.
Device Setup includes buttons to configure the instrument’s date and
time, set the LCD contrast, adjust the instrument’s beep volume, enable
the instrument to AutoStart, set it to display only one channel of data,
enable real-time MODBUS output, set the instrument’s communication
address, enabling print or USB functions, enable password restrictions,
and/or (with proper authorization) adjust service settings.
