Lighthouse SOLAIR 3350, 5350 Gen E Operating Manual
3-6 248083387-1 Rev 10
3. Push the battery all the way into the compartment until it snaps into
place.See Figure 3-4. Close the door and tighten the screw lock by
turning it clockwise.

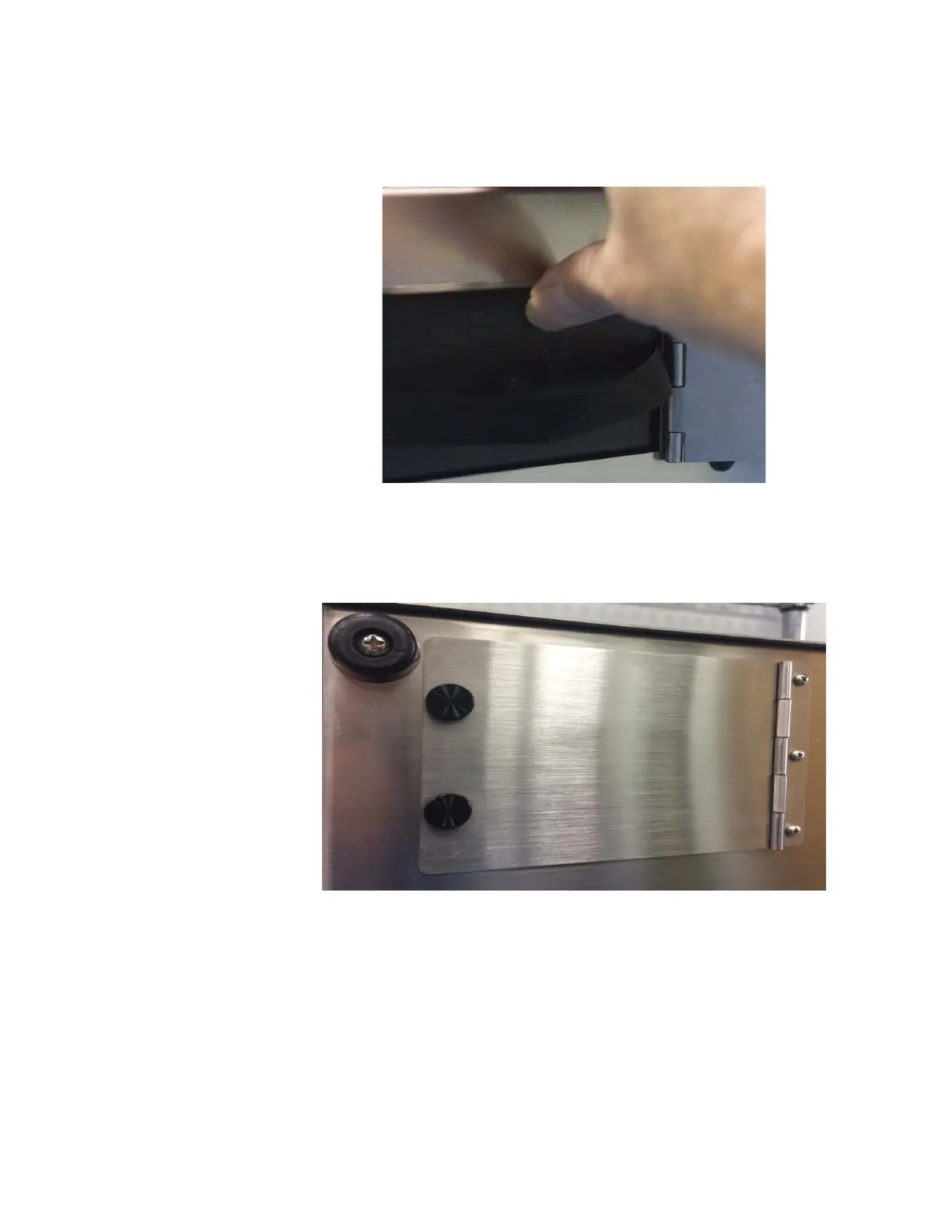

Figure 3-4 Battery Engaging Connector
4. For the dual-battery units: Open the battery compartment door by
turning the screw locks counterclockwise. See Figure 3-5.
Figure 3-5 Dual-Battery Compartment Door
